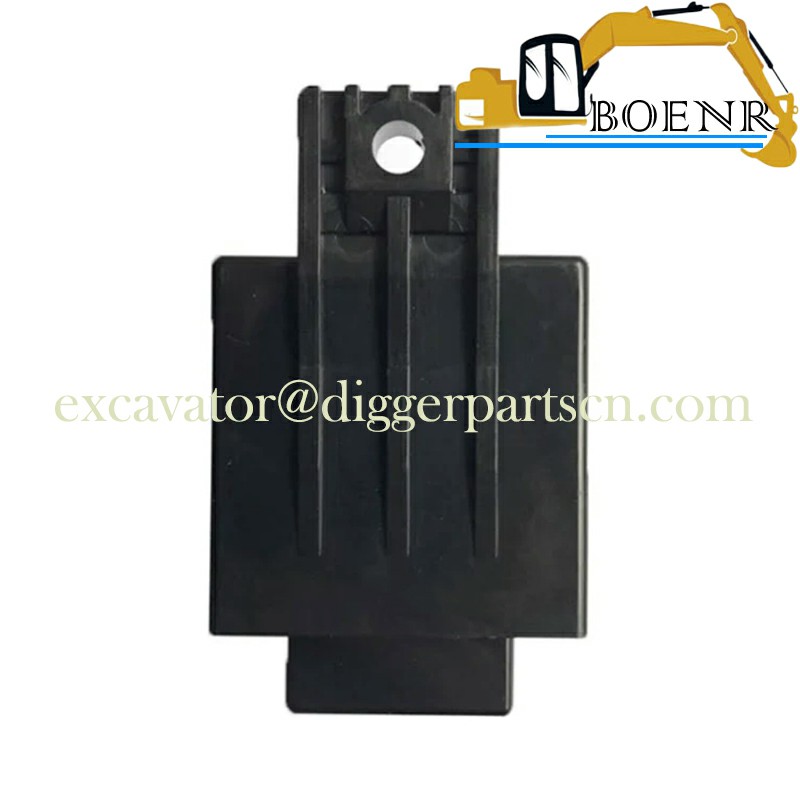

YN25S00001P1 Timer Relay for SK115SR SK135SR SK200-6 SK200-6E SK235SR SK290-6E SK480-6E
SK115SR SK135SR SK200-6 SK200-6E SK235SR SK290-6E SK480-6E Timer Relay YN25S00001P1
| Part Name | Relay | Part Number | YN25S00001P1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK115SR SK135SR SK200-6 SK200-6E SK235SR SK290-6E SK480-6E |
Weight: 0.2 kg

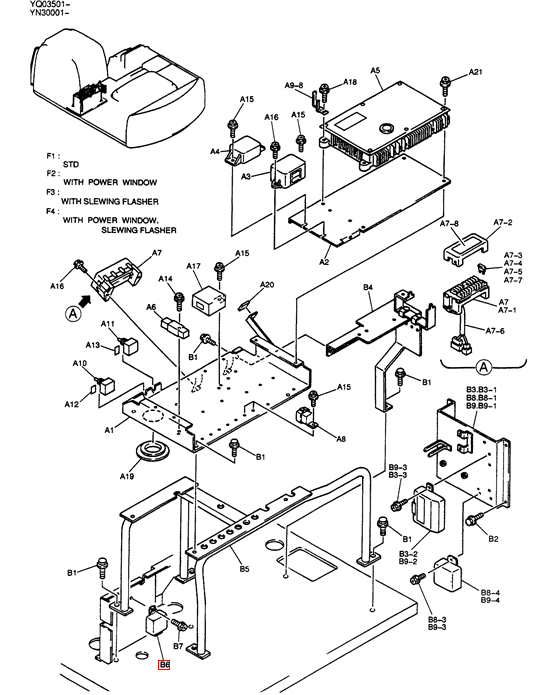

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| A4 | 1 | VAME077148 | RELAY STARTER SAFETY -- MITSUBISHI PARTS NO. |
| B9-4 | 1 | YY24S00001P1 | RELAY RELAY,FLASHER As for the engine parts,refer to following "Engine Parts" |
| B9-3 | 3 | ZM61C06016 | BOLT M06x1.0x16mm (Incls. Washer & Lockwasher) |
| B9-2 | 1 | YN22E00016F1 | CONTROL |
| B9-1 | 1 | YN24E01004P3 | PLATE |
| B9 | 1 | YN24E00003F3 | RELAY ASSY(F4 ONLY) |
| B8-4 | 1 | YY24S00001P1 | RELAY |
| B8-3 | 1 | ZM61C06016 | BOLT M06x1.0x16mm (Incls. Washer & Lockwasher) |
| B8-1 | 1 | YN24E01004P3 | PLATE |
| B8 | 1 | YN24E00003F2 | RELAY RELAY ASSY(F3 ONLY) |
| B7 | 1 | ZM66C06020 | BOLT M06x1.0x20mm (Incls. Washer & Lockwasher) |
| B6 | 1 | YN25S00001P1 | TIMER |
| B5 | 1 | YN22E01028P1 | SUPPORT |
| B4 | 1 | YN22E01032P1 | PLATE |
| B3-3 | 2 | ZM61C06016 | BOLT M06x1.0x16mm (Incls. Washer & Lockwasher) |
| B3-2 | 1 | YN22E00016F1 | CONTROL ASSY |
| B3-1 | 1 | YN24E01004P3 | PLATE |
| B3 | 1 | YN24E00003F1 | RELAY RELAY ASSY(F2 ONLY) |
| B2 | 4 | ZM66C06016 | BOLT M06x1.0x16mm (Incls. Washer & Lockwasher), (F2.F3 F4 Only) |
| B1 | 9 | ZM22C10025 | BOLT M10x1.50x25mm (Incls. Washer & Lockwasher) |
| YN22E00046F4 | CONTROLLER INSTAL (WITH POWER WINDOW, SLEWING FLASHER) | ||
| YN22E00046F3 | CONTROLLER INSTAL (WITH SLEWING FLASHER | ||
| YN22E00046F2 | CONTROLLER INSTAL (WITH POWER WINDOW) | ||
| YN22E00046F1 | CONTROLLER INSTAL (STD) | ||
| A21 | 2 | ZM61C06035 | BOLT M06x1.0x35mm (Incls. Washer & Lockwasher) |
| A20 | 1 | YN22E01012P1 | RUBBER |
| A19 | 1 | 2420Z699 | GROMMET |
| A18 | 2 | ZM61C06030 | BOLT M06x1.0x30mm (Incls. Washer & Lockwasher) |
| A17 | 1 | YT24E00001F1 | RELAY |
| A16 | 3 | ZM61C06020 | BOLT M06x1.0x20mm (Incls. Washer & Lockwasher) |
| A15 | 6 | ZM61C06016 | BOLT M06x1.0x16mm (Incls. Washer & Lockwasher) |
| A14 | 1 | ZM41C04016 | BOLT M04x0.7x16mm (Incls. Washer & Lockwasher) |
| A13 | 1 | YN22M01014P1 | LABEL Decal, Swing Parking Brake Release Lock and Normal |
| A12 | 1 | YN22M01013P1 | LABEL |
| A11 | 1 | YX50E00002F1 | SWITCH ASSY (SWING PARKING RELEASE) |
| A10 | 1 | YN50S01003P1 | SWITCH (KPSS RELEASE) |
| A9-8 | 1 | 2432R233D1 | CLIP 37x12x40mm |
| A9-7 | 2 | ZW16X06000 | WASHER ID 06 x OD 12.5 x Th 1.6mm |
| A9-6 | 2 | ZW26X06000 | LOCK WASHER ID 06 x OD 07 x Th 1.5mm |
| A9-5 | 1 | PY01P01043D3 | CLIP Wire Ties -- 188mm Long |
| A9-4 | 14 | YN03E01001D5 | CLIP 195mm Long (7-43/64 in) -- Black |
| A9-3 | 6 | ZM66C06020 | BOLT M06x1.0x20mm (Incls. Washer & Lockwasher) |
| A9-2 | 2 | ZS18C06016 | SCREW M06x1.0x16mm |
| A9-1 | 1 | YN14E01013P1 | HARNESS |
| A9 | 1 | YN14E00013F1 | HARNESS ASSY,CAB |
| A8 | 2 | YR24S00002P1 | RELAY |
| A7-8 | 1 | YN73E01007P1 | LABEL |
| A7-7 | 1 | 2479U655S3 | FUSE FUSE(15A) |
| A7-6 | 1 | YN73E00005S001 | HARNESS HARNESS |
| A7-5 | 8 | 2479R655S9 | FUSE 20 Amp |
| A7-4 | 4 | 2479R655S8 | FUSE 10 Amp |
| A7-3 | 6 | 2479R655S10 | FUSE 5 Amp |
| A7-2 | 1 | YN73E00001S002 | COVER COVER |
| A7-1 | 1 | YN73E00001S001 | BASE BASE |
| A7 | 1 | YN73E00005F1 | FUSE ASSY |
| A6 | 1 | LC22E01001D1 | RESISTOR 16 Ohm |
| A5 | 1 | YN22E00037F1 | CONTROL ASSY (MECHA-TRO) |
| A3 | 1 | YN50E00004F1 | SWITCH ASSY |
| A2 | 1 | YN22E01027P1 | PLATE |
| A1 | 1 | YN22E01033P2 | BOX |
| YN22E00047F1 | CONTROLLER ASSY |
