YN24S00008F1 Battery Relay For Kobelco SK200-8 SK210-8 SK350-8 SK295-9 SK350-9 SK485-8
SK200-8 SK210-8 SK350-8 SK295-9 SK350-9 SK485-8 Battery Relay YN24S00008F1
| Part Name | Battery Relay | Part Number | YN24S00008F1 |
| Brand | Kobelco、KOBEKI | Applicable Model | SK200-8 SK210-8 SK350-8 SK295-9 SK350-9 SK485-8 |
Weight: 1.2KG

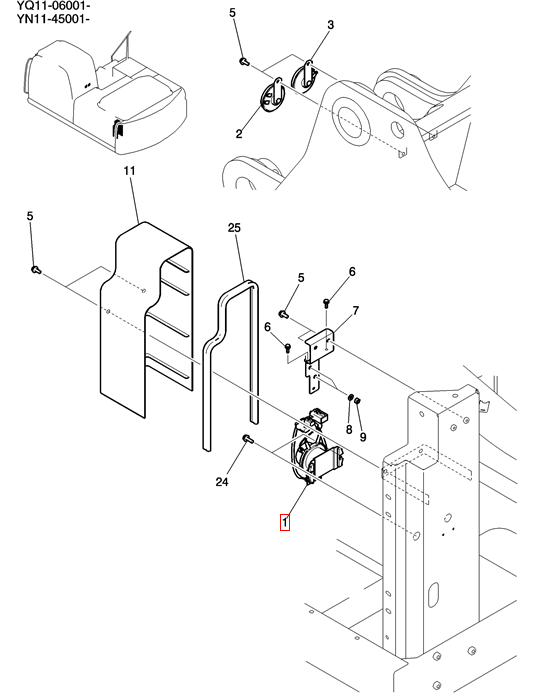

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 25 | 1 | 2427P1836D30 | WEATHERSTRIP |
| 24 | 2 | ZM73C08025 | BOLT Sems |
| 11 | 1 | YN03E01053P1 | COVER |
| 9 | 2 | ZN18C08007 | NUT |
| 8 | 2 | ZW16P06000 | WASHER |
| 7 | 1 | LC03E01020P1 | BRACKET |
| 6 | 2 | ZM73C06020 | BOLT Sems |
| 5 | 6 | ZM73C08020 | BOLT Sems |
| 3 | 1 | LC53S00001D2 | HORN |
| 2 | 1 | LC53S00001D1 | HORN |
| 1 | 1 | YN24S00008F1 | RELAY Assy, Battery |
| AR | LC03E00008F1 | upper |
