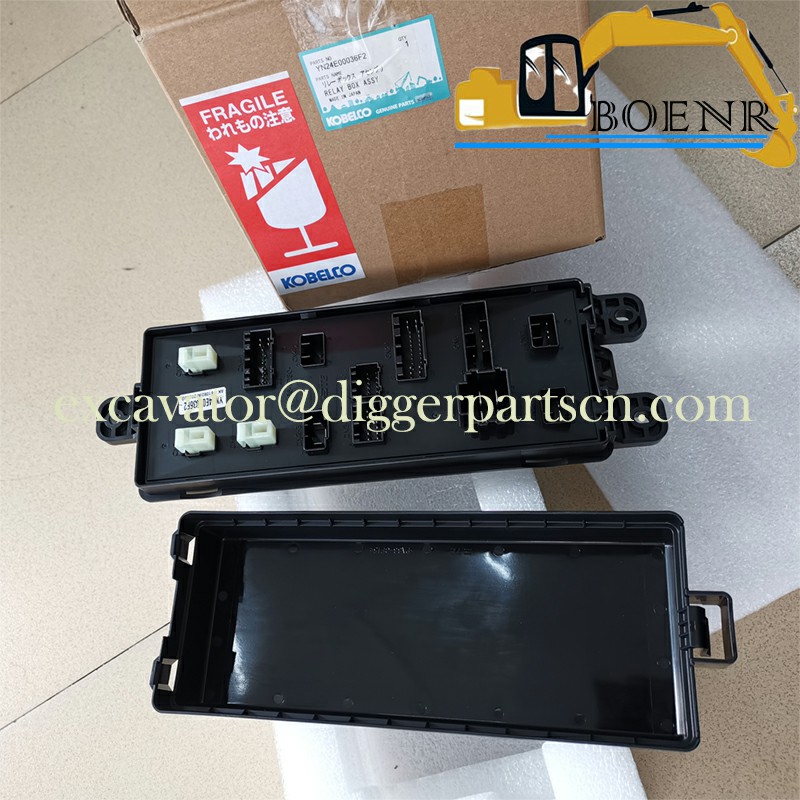

YN24E00036F2 Fuse Box Assy For SK200-10 SK210-10 SK220-10 SK270-10 SK250-10 SK350-10
SK200-10 SK210-10 SK220-10 SK270-10 SK250-10 SK350-10 Fuse Box Assy YN24E00036F2
| Part Name | Fuse Box | Part Number | YN24E00036F2 |
| Brand | Kobelco、Kobeki | Applicable Model | SK200-10 SK210-10 SK220-10 SK270-10 SK250-10 SK350-10 |
Weight:3KG

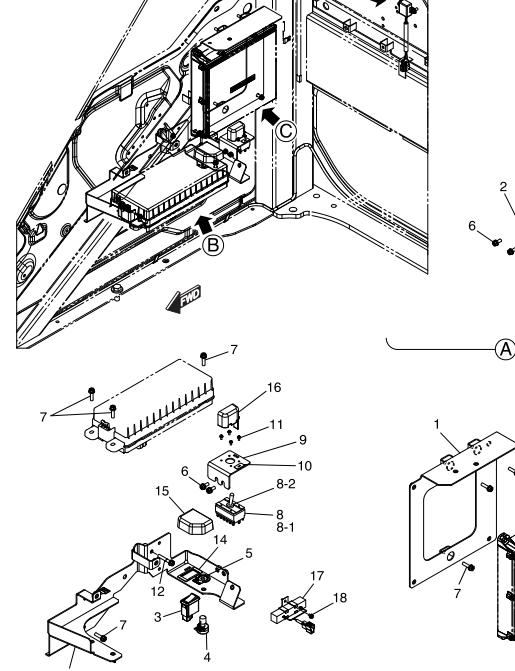

Image: Component Installation Diagram

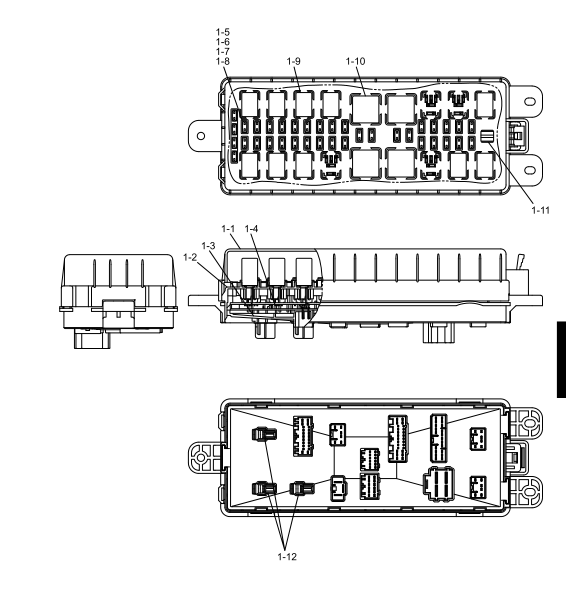

Parts Catalog
| PART NAME | 部品名 | |||
| ITEM | PARTS NO. | QTY | ||
| YN24E00040F1 | RELAY BOX ASSY | リレーボックスアッセン | ||
| 1 | YN24E00036F2 | RELAY BOX ASSY | リレーボックスアッセン | 1 |
| 1-1 | YN24E00036S001 | COVER | カバー | 1 |
| 1-2 | YN24E00036S002 | HOUSING | ハウジング | 1 |
| 1-3 | YN24E00036S003 | HOUSING | ハウジング | 1 |
| 1-4 | YN24E00036S004 | PRINTED BOARD | プリント基板 | 1 |
| 1-5 | YN24E00016S005 | FUSE | ヒューズ | 11 |
| 1-6 | YN24E00016S006 | FUSE | ヒューズ | 9 |
| 1-7 | YN24E00016S007 | FUSE | ヒューズ | 5 |
| 1-8 | YN24E00016S008 | FUSE | ヒューズ | 11 |
| 1-9 | YN24S00010P1 | RELAY | リレー | 10 |
| 1-10 | YN24S00012P2 | RELAY | リレー | 4 |
| 1-11 | YN24E00016S011 | HANDLE | ハンドル | 1 |
| 1-12 | YN24E00016S013 | CONNECTOR | コネクタ | 3 |
| 2 | YN73E01042P2 | LABEL | ラベル | 1 |
