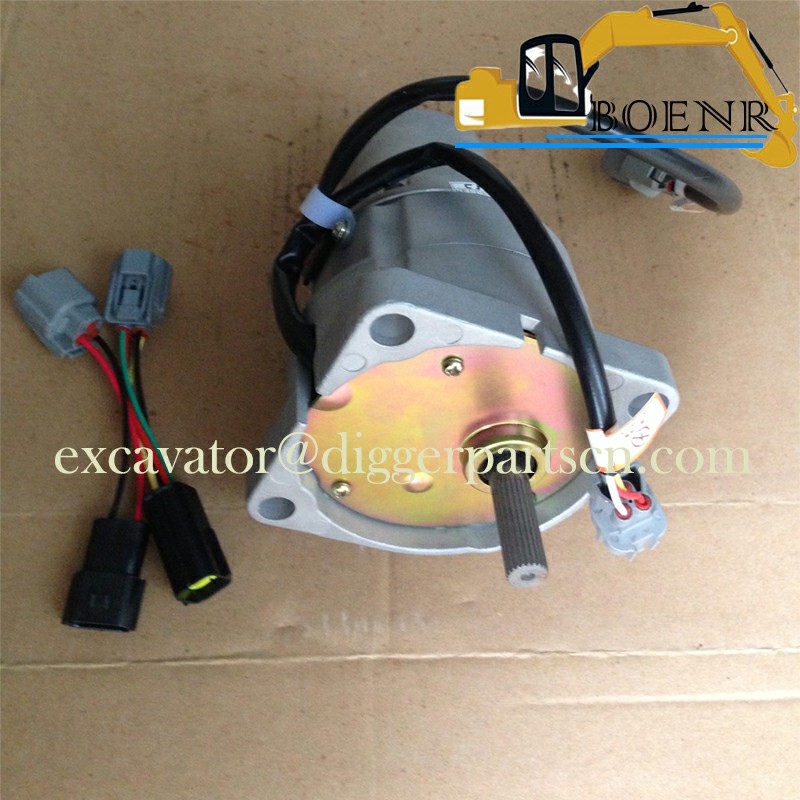

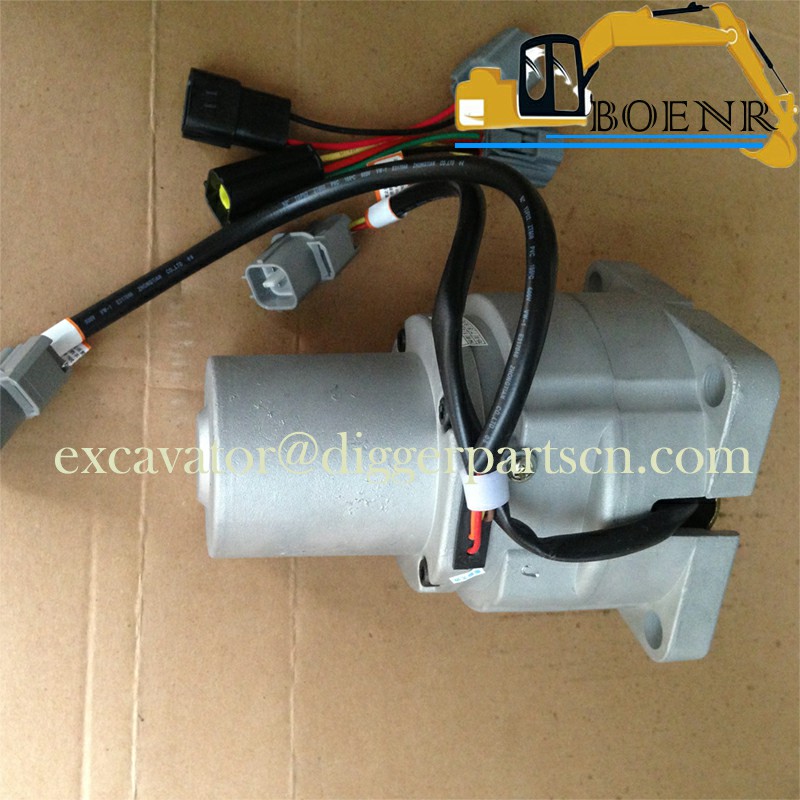

YN20S00002F1 YN20S00002F3 YN20S00002F2 Throttle Stepper Motor For SK115SR SK135SR SK200-6E SK210-6E
SK115SR SK135SR SK200-6E SK210-6E SK235SR Throttle Stepper Motor YN20S00002F1 YN20S00002F3 YN20S00002F2
| Part Name | Throttle Stepper Motor | Part Number | YN20S00002F1 YN20S00002F3 YN20S00002F2 |
| Brand | Kobelco , kobeki | Applicable Model | SK115SR SK135SR SK200-6E SK210-6E SK235SR |
Weight: 3KG

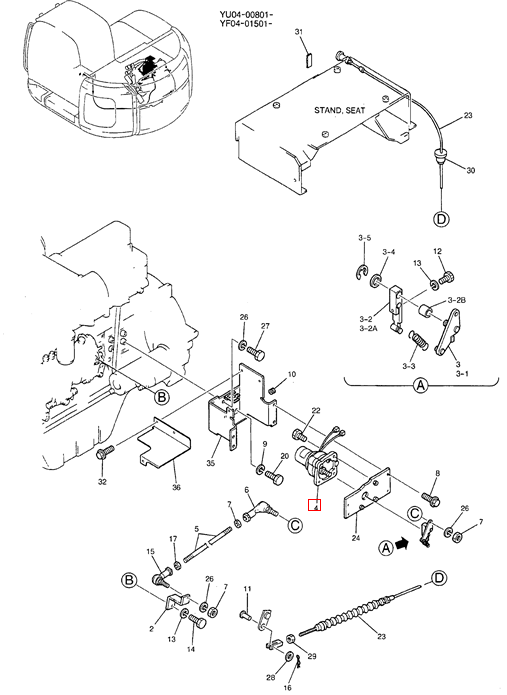

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 36 | 1 | YF11M01017P1 | GUARD COVER |
| 35 | 1 | YF11M01016P1 | U-BRACKET BRACKET |
| 32 | 3 | ZM22C08020 | BOLT M08x1.25x20mm (Incls. Washer & Lockwasher) |
| 31 | 1 | 2432T4615 | LABEL Decal -- 45x45mm Red triangle |
| 30 | 1 | YT11M01012P1 | GROMMET |
| 29 | 1 | ZN18C06005 | NUT M06x1.0mm |
| 28 | 1 | LC11M01034P1 | ROD END |
| 27 | 2 | ZS18C08030 | SCREW M08x1.25x30mm |
| 26 | 4 | ZW26X08000 | WASHER Lock -- ID 08 x OD 15 x Th 2.0mm |
| 24 | 1 | YN11M01102P1 | PLATE |
| 23 | 1 | YF11M01011P1 | CABLE PULLING GRIP CABLE, CONTROL |
| 22 | 3 | ZS28C10030 | SCREW M10x1.50x30mm |
| 20 | 2 | ZS18C10020 | SCREW M10x1.50x20mm |
| 17 | 1 | 2420T7359 | NUT M08x1.25mm -- Left Hand Threads |
| 16 | 1 | 2419R9D1 | COTTER PIN OD 06mm x 21.2mm Long |
| 15 | 1 | YN11M01013D1 | BALL JOINT M08x1.25x36mm Long |
| 14 | 2 | ZS18C06016 | SCREW M06x1.0x16mm |
| 13 | 3 | ZW26X06000 | LOCK WASHER ID 06 x OD 07 x Th 1.5mm |
| 12 | 1 | ZS28C06020 | SCREW M06x1.0x20mm |
| 11 | 1 | YN11M01114P2 | PIN |
| 10 | 1 | YN03M01159P1 | GROMMET |
| 9 | 2 | ZW26X10000 | LOCK WASHER ID 10 x OD 18 x Th 2.5mm |
| 8 | 4 | ZM22C10025 | BOLT M10x1.50x25mm (Incls. Washer & Lockwasher) |
| 7 | 3 | ZN18C08007 | NUT M08x1.25mm |
| 6 | 1 | HR37C08000G1 | BALL JOINT Replaces 2425R227D2, M08x1.25x45.5mm Long |
| 5 | 1 | LQ11M01053P1 | ROD ROD |
| 4 | 1 | YN20S00002F1 | MOTOR MOTOR ASSY, GOVERNOR |
| 3-5 | 1 | ZR16X01200 | RING Retaining -- ID 11.1 x OD 12 x Th 1.0mm |
| 3-4 | 1 | ZW16X12000 | WASHER ID 12 x OD 24 x Th 2.3mm |
| 3-3 | 1 | YN11M01210P1 | SPRING |
| 3-2B | 1 | 2405R312D1215 | BUSHING |
| 3-2A | 1 | YN11M01189P1 | LEVER |
| 3-2 | 1 | YN11M01190F1 | LEVER |
| 3-1 | 1 | YN11M01188P1 | PLATE |
| 3 | 1 | YN11M01186F1 | LEVER ASSY |
| 2 | 1 | YF11M01007P1 | LEVER LEVER |
| YF11M00002F1 | CONTROL ASSY,ENGINE |
