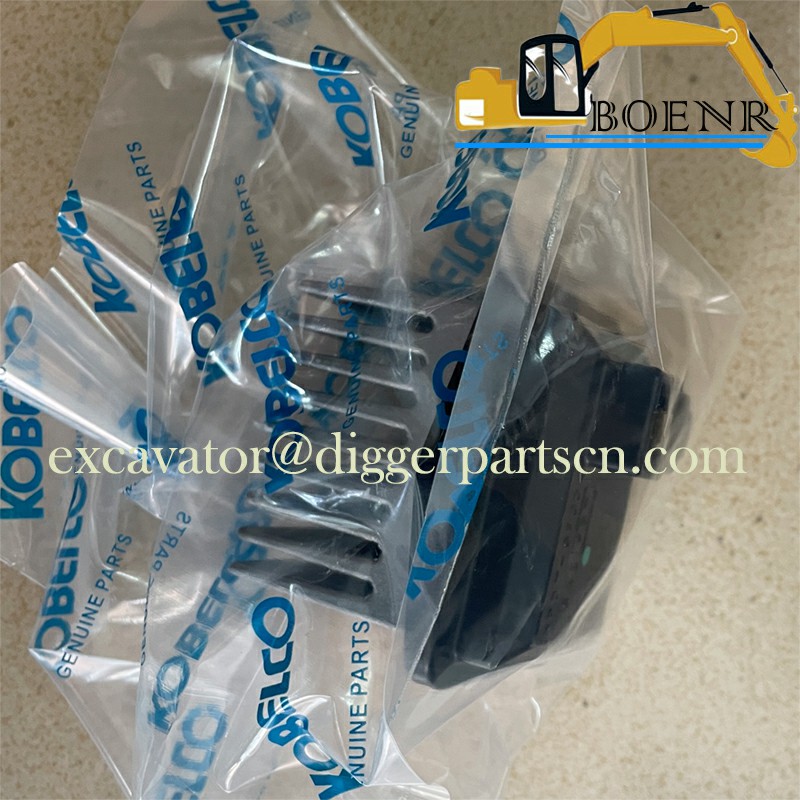

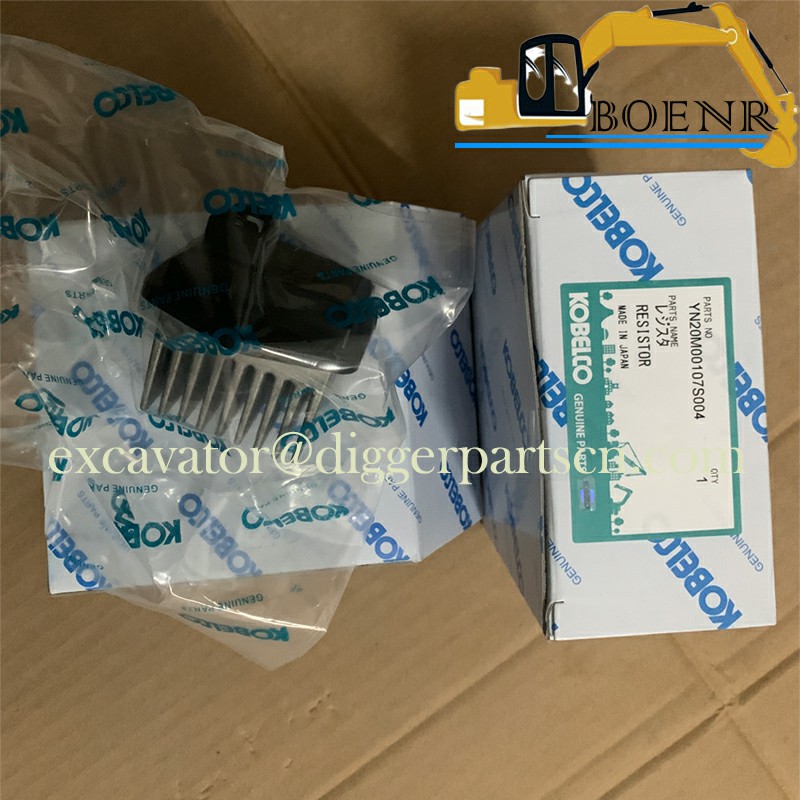

YN20M00107S004 YN20M00107S004 Air Condition Resistor For SK200-8 SK210-8 SK250-8 SK260-8 SK260-9
SK200-8 SK210-8 SK250-8 SK260-8 SK260-9 SK295-9 SK350-8 SK350-9 SK485-9 Air Condition Resistor YN20M00107S004 YN20M00107S004
| Part Name | Resistor | Part Number | YN20M00107S004 YN20M00107S004 |
| Brand | Kobelco, Kobeki | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK260-9 SK295-9 SK350-8 SK350-9 SK485-9 |
Weight: 0.2 kg

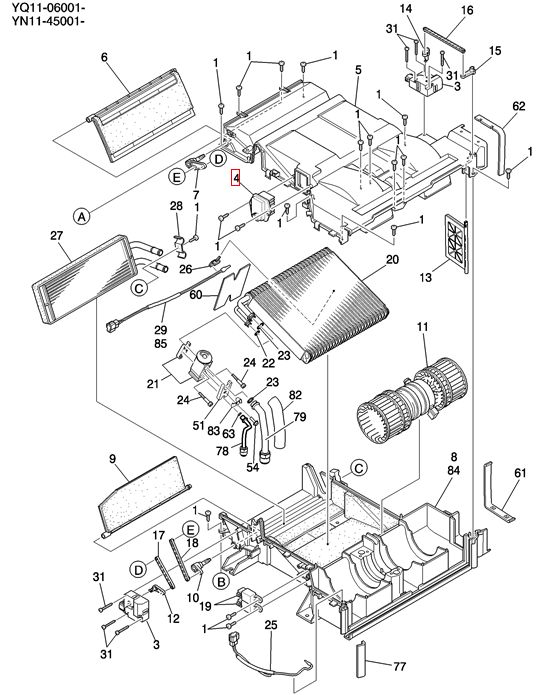

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 46 | 1 | YN20M00107S046 | LEVER (For F1, F2 ONLY) |
| 45 | 1 | YN20M00107S045 | LEVER |
| 44 | 1 | YN20M00107S044 | LEVER (For F1, F2 ONLY) |
| 43 | 1 | YN20M00107S043 | LEVER |
| 42 | 1 | YN20M00107S042 | LEVER |
| 41 | 1 | YN20M00107S041 | LEVER |
| 40 | 1 | YN20M00107S040 | GASKET Packing |
| 39 | 1 | YN20M00107S039 | GASKET Packing |
| 38 | 1 | YN20M00107S038 | GUARD Damper |
| 37 | 1 | YN20M00107S037 | GUARD Damper |
| 36 | 1 | YN20M00107S036 | GUARD Damper |
| 33 | 1 | YN20M00107S033 | CASE (For F1, F2 ONLY) |
| 32 | 1 | YN20M00107S032 | CASE (For F1, F2 ONLY) |
| 31 | 9 | YN20M00107S031 | SCREW Tapping |
| 29 | 1 | YN20M00107S029 | THERMOSTAT (For F1,F2 ONLY) |
| 28 | 1 | YN20M00107S028 | HOLDER Pipe |
| 27 | 1 | YN20M00107S027 | CORE Heater |
| 26 | 1 | YN20M00107S026 | HOLDER Thermister |
| 25 | 1 | YN20M00107S025 | THERMOSTAT |
| 24 | 2 | YN20M00107S024 | SCREW Cap |
| 23 | 2 | 2445Z1604D5 | O-RING |
| 22 | 1 | 2445Z1604D4 | O-RING |
| 21 | 1 | YN20M00107S021 | VALVE |
| 20 | 1 | YN20M00107S020 | EVAPORATOR |
| 19 | 2 | YN20M00107S019 | RELAY |
| 18 | 1 | YN20M00107S018 | ROD |
| 92 | 1 | YN20M00107S092 | PLATE (For F3 ONLY) |
| 17 | 1 | YN20M00107S017 | ROD |
| 91 | 1 | YN20M00107S091 | ROD (For F3 ONLY) |
| 16 | 1 | YN20M00107S016 | ROD |
| 90 | 1 | YN20M00107S090 | LEVER (For F3 ONLY) |
| 15 | 1 | YN20M00107S015 | LEVER |
| 89 | 1 | YN20M00107S089 | LEVER (For F3 ONLY) |
| 14 | 1 | YN20M00107S014 | LEVER |
| 88 | 1 | YN20M00107S088 | LEVER (For F3 ONLY) |
| 13 | 1 | YN20M00107S013 | DAMPER |
| 87 | 1 | YN20M00107S087 | BOX Case (For F3 ONLY) |
| 12 | 1 | YN20M00107S012 | LEVER |
| 86 | 1 | YN20M00107S086 | BOX Case (For F3 ONLY) |
| 11 | 1 | YN20M00107S011 | BLOWER Motor |
| 85 | 1 | YN20M00107S085 | SENSOR Thermometer (For F3 ONLY) |
| 10 | 1 | YN20M00107S010 | LEVER |
| 84 | 1 | YN20M00107S084 | BOX Case (For F2, F3 ONLY) |
| 9 | 1 | YN20M00107S009 | DAMPER |
| 83 | 1 | YN20M00107S083 | BRACKET (For F2, F3 ONLY) |
| 8 | 1 | YN20M00107S008 | CASE Case (For F1 ONLY) |
| 82 | 1 | YN20M00107S082 | RIGID TUBE |
| 7 | 1 | YN20M00107S007 | LEVER |
| 79 | 1 | YN20M00107S079 | RIGID TUBE |
| 6 | 1 | YN20M00107S006 | DAMPER |
| 78 | 1 | YN20M00107S078 | RIGID TUBE |
| 5 | 1 | YN20M00107S005 | CASE |
| 77 | 1 | YN20M00107S077 | GASKET Packing |
| 4 | 1 | YN20M00107S004 | RESISTOR |
| 63 | 1 | YN20M00107S063 | GASKET O-ring |
| 3 | 3 | YN20M00107S003 | ACTUATOR |
| 62 | 1 | YN20M00107S062 | PACKING |
| 2 | 1 | YN20M00107S002 | HARNESS |
| 61 | 1 | YN20M00107S061 | PACKING |
| 1 | 23 | YN20M00107S001 | SCREW Tapping |
| 60 | 1 | YN20M00107S060 | PACKING |
| AR | YN20M00107F3 | AIR CONDITIONING Assy, ASN YN11-48935 | |
| 54 | 1 | YN20M00107S054 | SCREW Cap |
| AR | YN20M00107F3 | AIR CONDITIONING Assy, ASN YQ11-06357 | |
| 51 | 1 | YN20M00107S051 | PLATE |
| AR | YN20M00107F2 | AIR CONDITIONING Assy, BTW YN11-45958 & YN11-48934 | |
| 50 | 1 | YN20M00107S050 | ROD |
| AR | YN20M00107F2 | AIR CONDITIONING Assy, BTW YQ11-06071 & YQ11-06356 | |
| 49 | 1 | YN20M00107S049 | ROD |
| AR | YN20M00107F1 | AIR CONDITIONING Assy , BTW YN11-45001 & YN11-45957 | |
| 48 | 1 | YN20M00107S048 | ROD (For F1, F2 ONLY) |
| AR | YN20M00107F1 | AIR CONDITIONING Assy , BTW YQ11-06001 & YQ11-06070 | |
| 47 | 1 | YN20M00107S047 | LEVER (For F1, F2 ONLY) |
