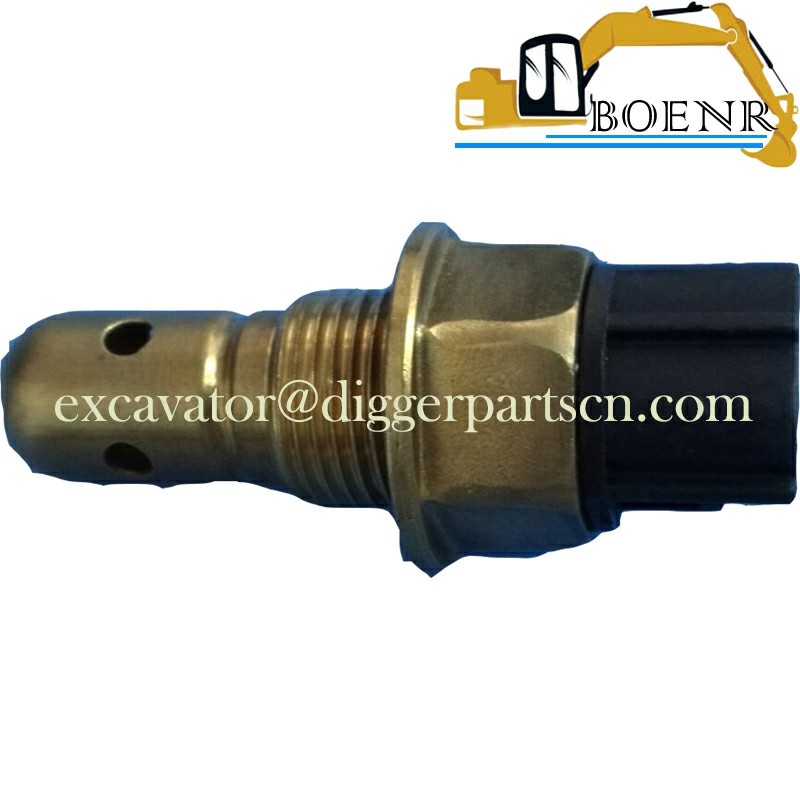

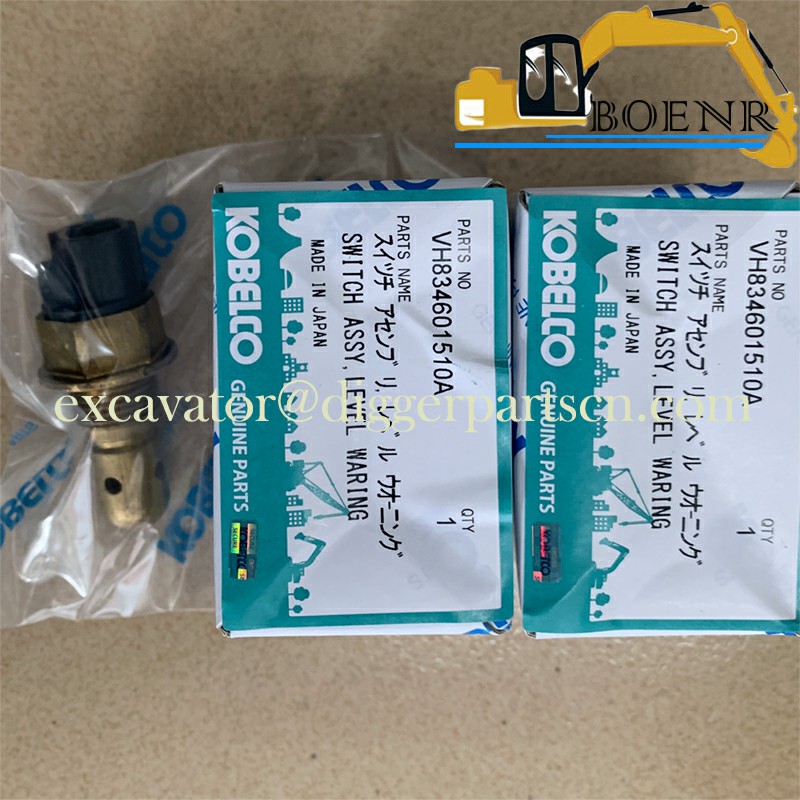

VH834601510A VHS834601510 Water Level Warning Switch Sensor For kobelco SK200-8 SK210-8 SK250-8
kobelco SK200-8 SK210-8 SK250-8 SK350-8 SK380-10 SK200-10 Water Level Warning Switch Sensor VH834601510A VHS834601510
| Part Name | Switch Sensor | Part Number | VH834601510A VHS834601510 |
| Brand | Kobelco | Applicable Model | SK200-8 SK210-8 SK250-8 SK350-8 SK380-10 SK200-10 |
Weight: 0.5KG

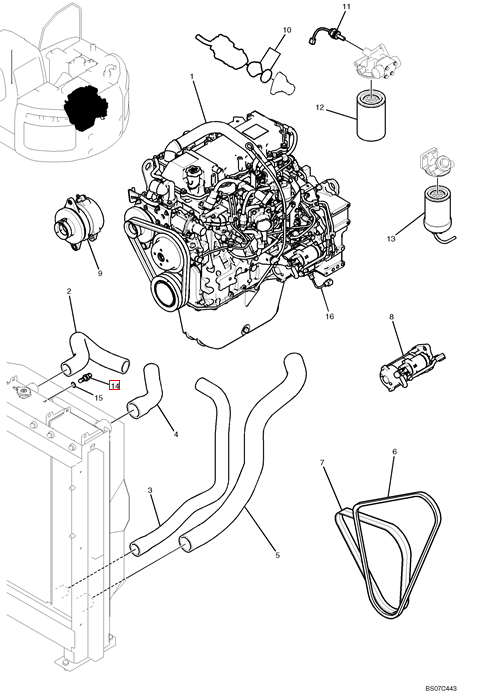

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 16 | 1 | VH894101290A | SENSOR Assy |
| 15 | 1 | VH985119116A | O-RING |
| 14 | 1 | VH834601510A | SWITCH Assy, Level Warning |
| 13 | 1 | YN30T01002P1 | ELEMENT Filter Fuel E/G Hino pn VH23390E0010 |
| 12 | 1 | YN30T01001P1 | ELEMENT Filter Oil E/G Hino pn VH156072190A |
| 11 | 1 | VH156601090A | PLUG Assy, Oil |
| 10 | 1 | VH040166104A | THERMOSTAT Kit |
| 9 | 1 | VH270402192A | ALTERNATOR Assy |
| 8 | 1 | VH281002894A | STARTER MOTOR Assy |
| 7 | 1 | VH900149375A | BELT V-belt (2 Pieces Set) (2) |
| 1-1B | 1 | YN22E00263S002 | Software Not serviced |
| 1-1A | 1 | YN22E00263S001 | CONTROLLER Unprogrammed - Hino pn VH89661E0010 |
| 6 | 1 | YN20M01494D1 | BELT V (conditioner, Air) (COG B66) |
| 5 | 1 | YN05P01495P1 | HOSE |
| 4 | 1 | YN05P01439P1 | HOSE |
| 3 | 1 | YN05P01494P1 | RADIATOR HOSE |
| 2 | 1 | YN05P01479P1 | HOSE Radiator |
| 1 | YN02P00042F1 | ENGINE Assy , BTW YQ11-06077 & YN11-46018 | |
| 1-1 | 1 | YN22E00263F1 | CONTROLLER Assy |
| 1 | 1 | YN02P00028F1 | ENGINE Assy , BTW YN11-45001 & YN11-46017 |
| 1 | 1 | YN02P00028F1 | ENGINE Assy , BTW YQ11-06001 & YQ11-06076 |
| AR | YN02P00031F1 | Instal (See Fig No.025-01-1,2) | |
| AR | YN02P00034F1 | Instal |
