ME995106 VAME995106 6D34 Engine Thermostat For SK200-6 SK200-6E SK210-6E SK235SR-1E SK250-6E
SK200-6 SK200-6E SK210-6E SK235SR-1E SK250-6E 6D34 Engine Thermostat ME995106 VAME995106
| Part Name | Thermostat | Part Number | ME995106 VAME995106 |
| Brand | Kobelco, Kobeki、Mitsubishi | Applicable Model | SK200-6 SK200-6E SK210-6E SK235SR-1E SK250-6E |
Weight: 2KG

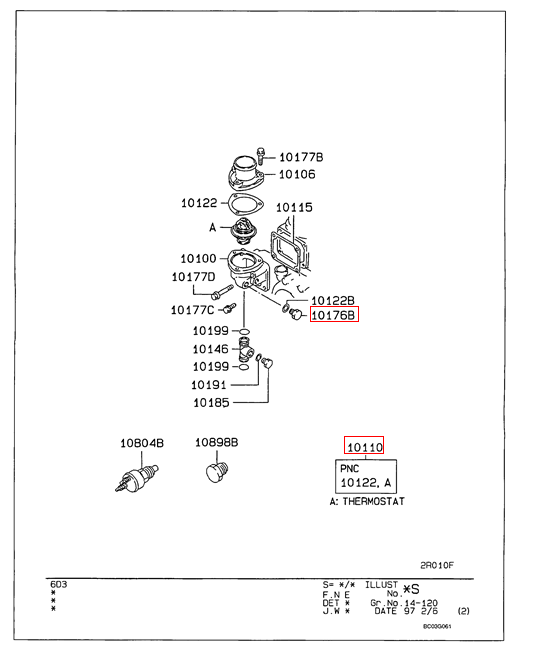

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 10898B | 1 | VA3124618702 | PLUG PLUG, WATER TEMPERATURE GAUGE, FROM-UP TO: 0302.1-, MODEL TYPE: ALL, Remarks: 16X17 |
| 10804B | 1 | VAME039860 | SWITCH SWITCH UNIT, WATER TEMPERATURE, FROM-UP TO: 0302.1-, MODEL TYPE: ALL, Remarks: 105 DEGREE C |
| 10199 | 2 | VAMH035680 | O-RING O-RING, COOLING WATER LINE, FROM-UP TO: 0302.1-, MODEL TYPE: ALL, Remarks: 22.1 |
| 10191 | 1 | VAMF660066 | GASKET GASKET, COOLING WATER LINE, FROM-UP TO: 0302.1-, MODEL TYPE: ALL, Remarks: 16 |
| See Heater Section For Hose Installation | |||
| 10185 | 1 | VAM0001300 | PLUG PLUG, COOLING WATER LINE, FROM-UP TO: 0302.1-, MODEL TYPE: ALL, Remarks: SCREW, 16 |
| 10177D | 2 | VAMS146019 | BOLT BOLT, THERMOSTAT, FROM-UP TO: 0302.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X65 |
| 10177C | 2 | VAMS146006 | BOLT BOLT, THERMOSTAT, FROM-UP TO: 0302.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X25 |
| 10177B | 3 | VAMF140229 | BOLT BOLT, THERMOSTAT, FROM-UP TO: 0302.1-, MODEL TYPE: ALL, Remarks: FLANGE, 8X30 |
| See Heater Section For Hose Installation | |||
| 10176B | 1 | VAM0001300 | PLUG PLUG, THERMOSTAT, FROM-UP TO: 0302.1-, MODEL TYPE: ALL, Remarks: SCREW, 16 |
| 10146 | 1 | VAME088920 | PIPE PIPE, THERMOSTAT WATER BY-PASS, FROM-UP TO: 0302.1-, MODEL TYPE: ALL |
| 10122B | 1 | VAMF660066 | GASKET GASKET, THERMOSTAT COVER, FROM-UP TO: 0302.1-, MODEL TYPE: ALL |
| 10122 | 1 | VAME014499 | GASKET GASKET, THERMOSTAT COVER, FROM-UP TO: 0302.1-, MODEL TYPE: ALL |
| 10115 | 1 | VAME014498 | GASKET GASKET, THERMOSTAT CASE TO CYLINDER HEAD, FROM-UP TO: 0302.1-, MODEL TYPE: ALL |
| 10110 | 1 | VAME995106 | THERMOSTAT THERMOSTAT KIT, FROM-UP TO: 0302.1-, MODEL TYPE: ALL |
| 10106 | 1 | VAME088721 | COVER COVER, THERMOSTAT CASE, FROM-UP TO: 0302.1-, MODEL TYPE: ALL |
| 10100 | 1 | VAME080950 | CASE CASE, THERMOSTAT, FROM-UP TO: 0302.1-, MODEL TYPE: ALL |
