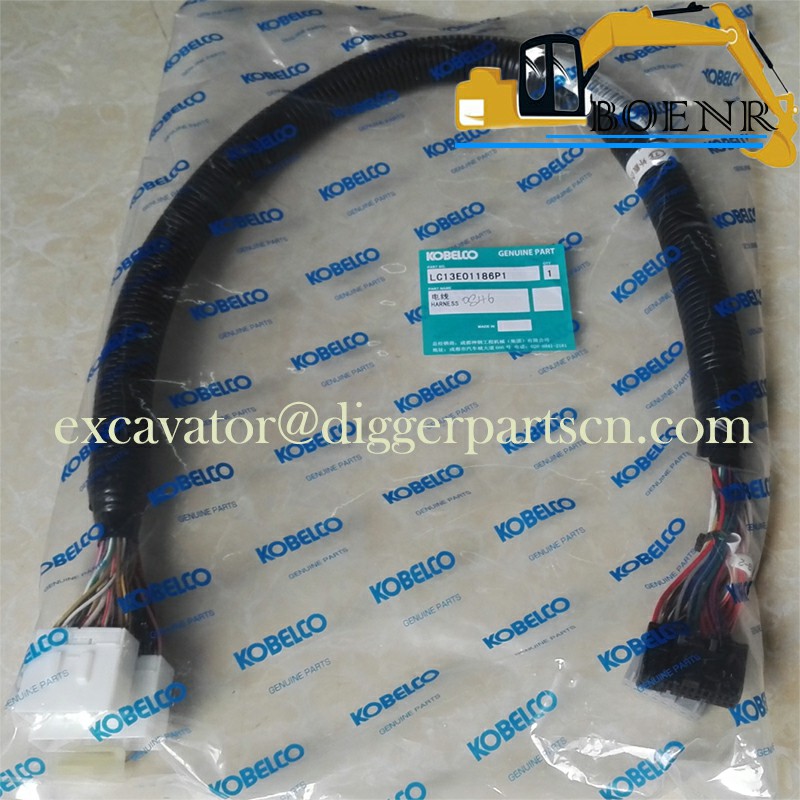

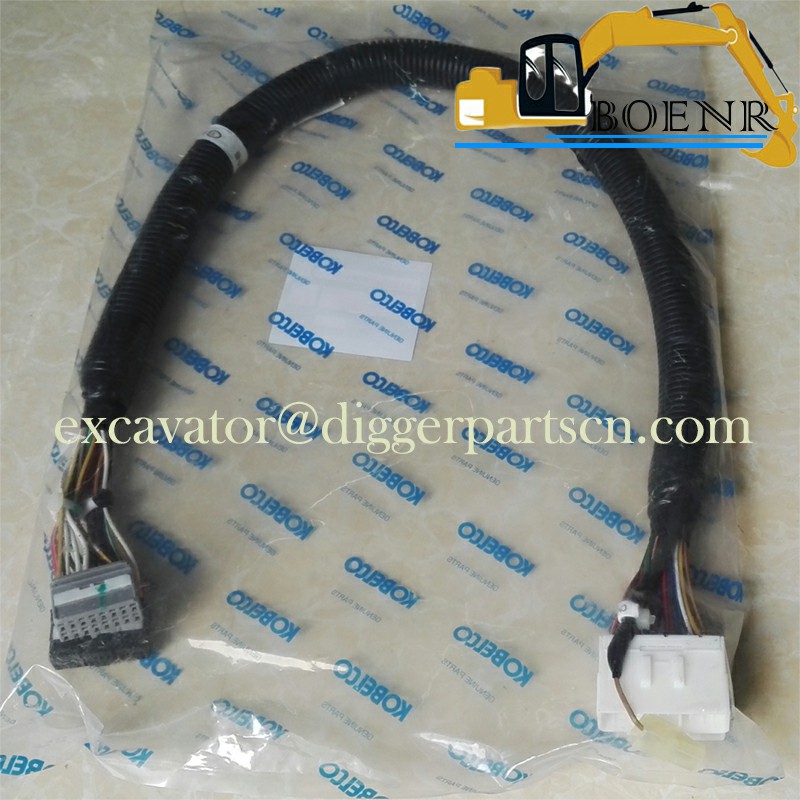

LC13E01186P1 Fuse Box Wiring Harness For SK200-8 SK210-8 SK250-8 Sk260-8 SK350-8 SK330-8 SK380-8
SK200-8 SK210-8 SK250-8 Sk260-8 SK350-8 SK330-8 SK380-8 SK430-8 SK460-8 SK480-8 Fuse Box Wiring Harness LC13E01186P1
| Part Name | Fuse Box Wiring Harness | Part Number | LC13E01186P1 |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-8 SK210-8 SK250-8 Sk260-8 SK350-8 SK330-8 SK380-8 SK430-8 SK460-8 SK480-8 |
Weight:0.5KG

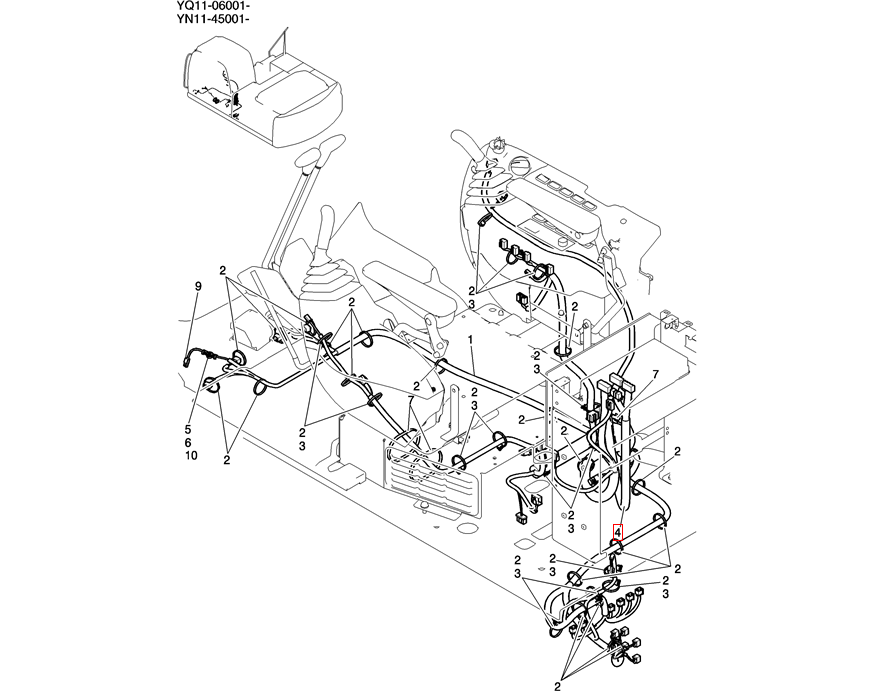

Parts Layout Diagram
Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 10 | 1 | ZW16P08000 | WASHER |
| 9 | 1 | LE13E01005P1 | CABLE |
| 7 | 3 | PY01P01043D8 | CLIP |
| 6 | 1 | ZN18C08007 | NUT |
| 5 | 1 | ZW26X08000 | WASHER Lock |
| 4 | 1 | LC13E01186P1 | HARNESS |
| 3 | 14 | YN13E01375P1 | CLIP |
| 2 | 35 | PY01P01043D3 | CLIP |
| 1 | 1 | YN13E01449P3 | HARNESS |
| AR | LC13E00032F1 | HARNESS Assy, Upper (Plate, Floor) |
LC13E01186P1 is the fuse box wiring harness for the Kobelco Model 8 excavator
