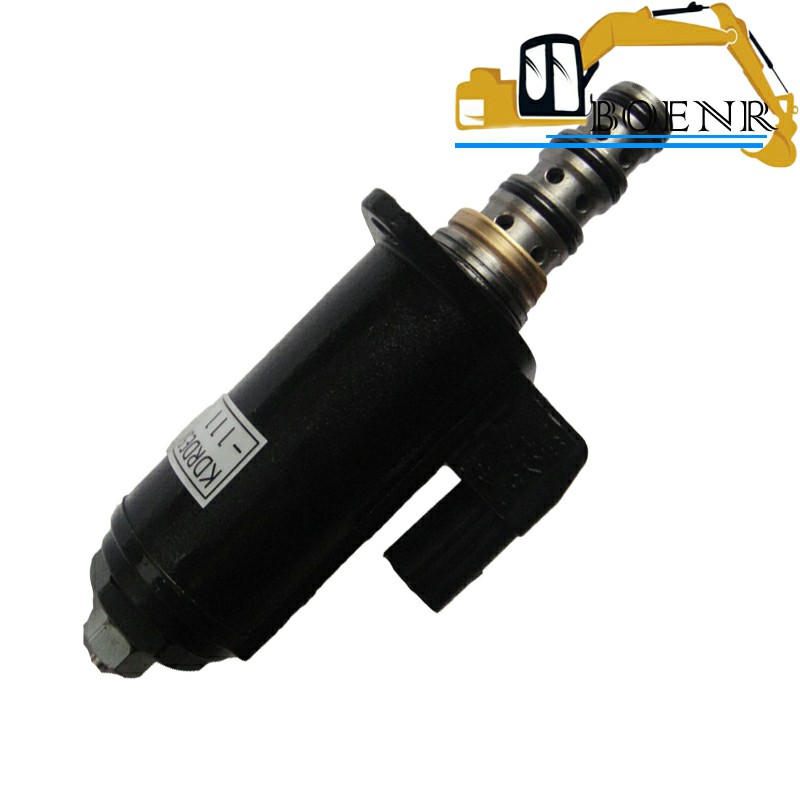

YB35V00003F1 KDRDE5K-31 30C50 -111 solenoid valve For SK200-6 SK330LC SK330LC-6E SK480LC-6E
SK200-6 SK330LC SK330LC-6E SK480LC-6E Hydraullic pump solenoid valve KDRDE5K-31/30C50-111 YB35V00003F1
| Part Name | solenoid valve | Part Number | YB35V00003F1 |
| Brand | Kobelco、Kobeki | Applicable Model | SK200-6 SK330LC SK330LC-6E SK480LC-6E |
Weight: 0.6KG

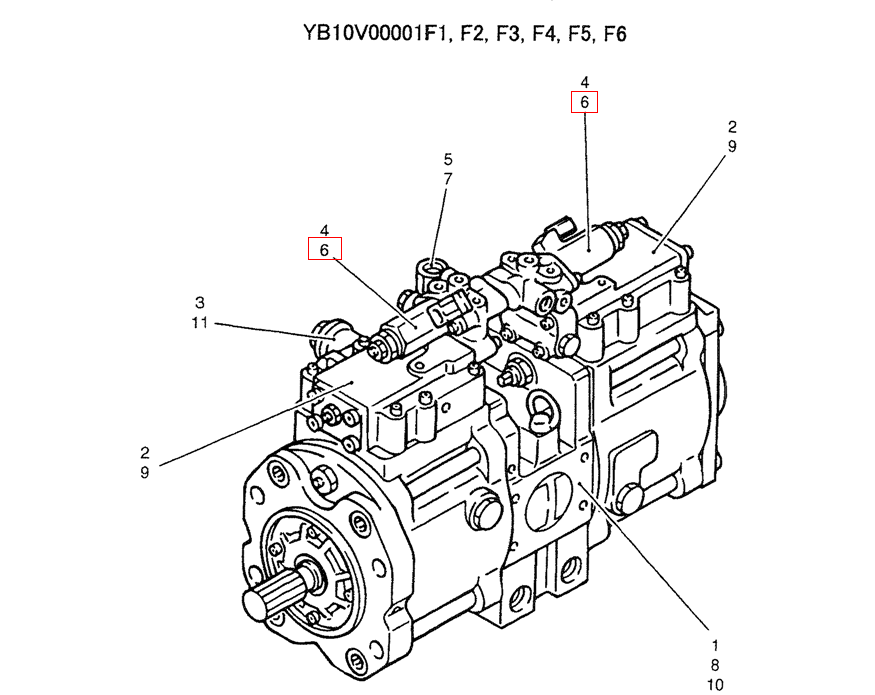

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 10 | 1 | YB10V00004F3 | PUMP ASSY SEE FIG 07-012 (FOR F5) |
| 9 | 2 | YB10V01001F2 | REGULATOR REGULATOR ASSY SEE FIG 07-013 (FOR F4,F5) |
| 8 | 1 | YB10V00004F2 | PUMP ASSY SEE FIG 07-012 (FOR F4) |
| 7 | 1 | YX10V00004F2 | PUMP GEAR SEE FIG 07-012 (FOR F3,F4,F5) |
| 6 | 2 | YB35V00003F1 | VALVE VALVE ASSY, SOLENOID SEE FIG 07-023 (FOR F2,F3,F4,F5) |
| 5 | 1 | YX10V00004F1 | PUMP GEAR SEE FIG 07-012 (FOR F1,F2) |
| 4 | 2 | YN35V00018F2 | SOLENOID VALVE SEE P.YN35V00018 (FOR F1) |
| 3 | 1 | YB46W00001F1 | CASE GEAR SEEFIG 07-026 (Use oring ZD12G09500 at attach point) |
| 2 | 2 | YB10V01001F1 | VOLTAGE REGULATOR SEE FIG 07-013(FOR F1,F2,F3) |
| 1 | 1 | YB10V00004F1 | PUMP ASSY SEE FIG 07-012 (FOR F1,F2,F3) |
| AR | YB10V00001F5 | HYDRAULIC PUMP PUMP ASSY | |
| AR | YB10V00001F4 | HYDRAULIC PUMP PUMP ASSY | |
| AR | YB10V00001F3 | PUMP PUMP ASSY | |
| AR | YB10V00001F2 | PUMP PUMP ASSY | |
| AR | YB10V00001F1 | HYDRAULIC PUMP PUMP ASSY |
