YT35V00013F1 KWE5K 31G24DA50 Solenoid Valve For SK115SR SK135SR SK200SR SK235SR SK210LC-6E
SK115SR SK135SR SK200SR SK235SR SK210LC-6E SK250LC-6E SK290LC-6E Solenoid Valve YT35V00013F1 KWE5K/31G24DA50
| Part Name | Solenoid Valve | Part Number | YT35V00013F1 KWE5K/31G24DA50 |
| Brand | Kobelco、Kobeki | Applicable Model | SK115SR SK135SR SK200SR SK235SR SK210LC-6E SK250LC-6E SK290LC-6E |
Weight:0.6KG

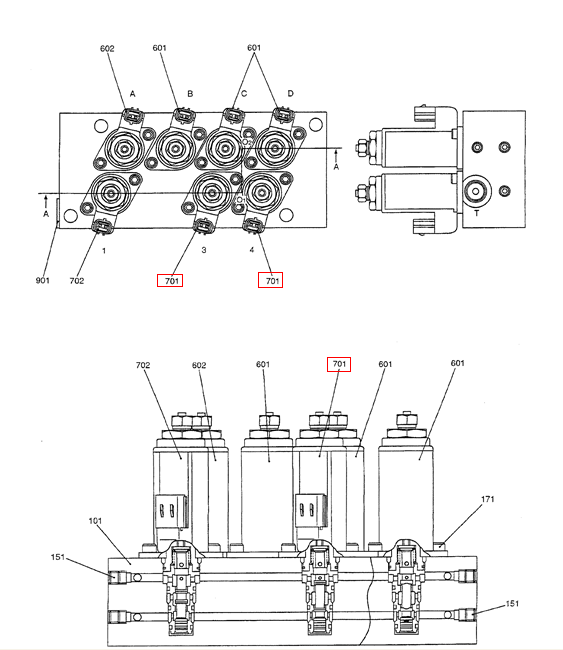

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 901 | 1 | YA35V00001S901 | PLATE NAME |
| 702 | 1 | YB35V00006F1 | VALVE SOLENOID, Remarks: See P-YB35V00006-1 |
| 701 | 3 | YT35V00013F1 | VALVE ASSY, SOLENOID, Remarks: See P-YT35V00013-1 |
| 601 | 4 | YB35V00005F1 | VALVE SOLENOID, Remarks: See P-YB35V00005-1 |
| 171 | 16 | YX35V00002S171 | SCREW M05x0.8x12mm |
| 151 | 1 | 2436U1165S152 | PLUG |
| 101 | 1 | YN35V00039S101 | BODY |

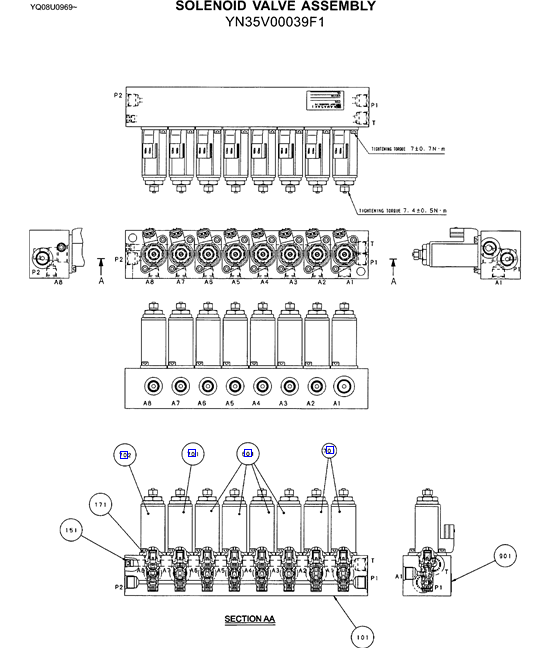

| YN35V00039F1 | SOLENOID VALVE ASSY |
