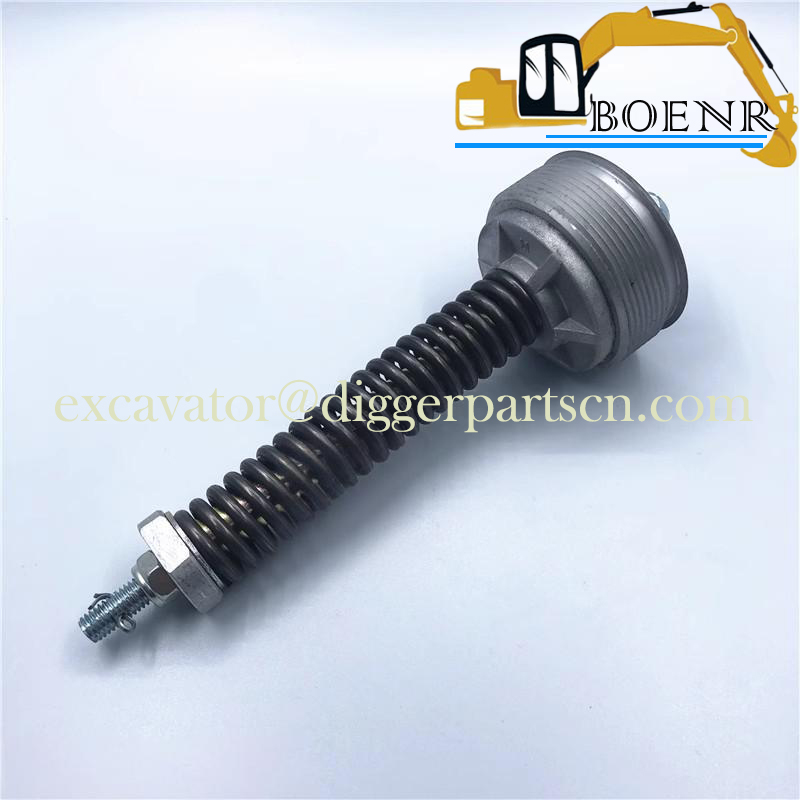

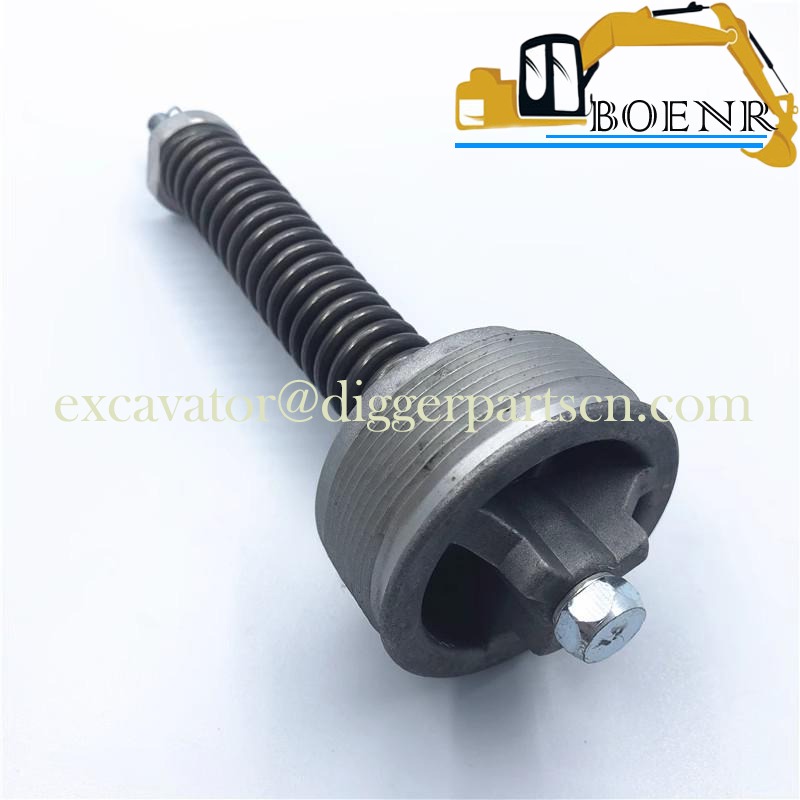

LV21V00003F4 LV21V00003F1 Check Valve For SK485-8 SK460-8
SK485-8 SK460-8 Check Valve LV21V00003F4 LV21V00003F1
| Part Name | Check Valve | Part Number | LV21V00003F1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK485-8 SK460-8 |
Weight: 0.2 kg

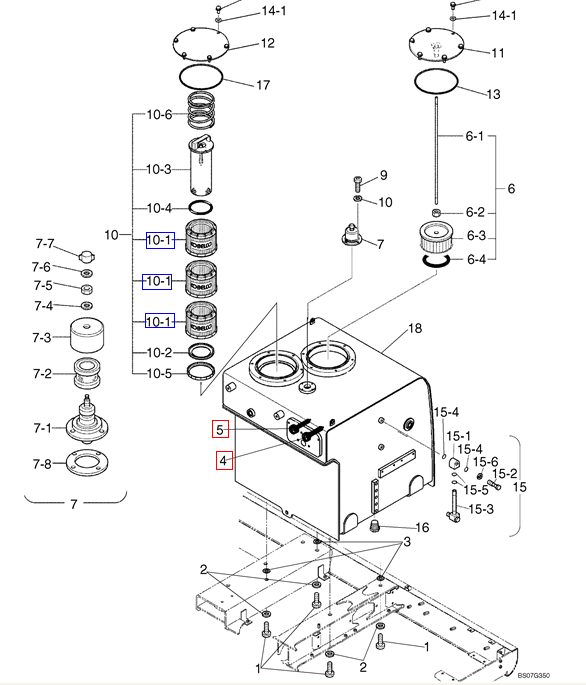

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 18 | 1 | LS33H00040P2 | Tank |
| 17 | 1 | ZD11G19000 | O-RING ID 189.30 ± 1.47 x OD 200mm |
| 1 | ZD12P01800 | O-RING (Part of ZE72X08000), ID 17.80 ± 0.21 x OD 22mm, Not Shown | |
| 16 | 1 | ZE72X08000 | PLUG 1/2" PF, (Incls. O-Ring ZD12P01800) |
| 15-6 | 2 | NSS | NOT SERVICED SEPARATELY Washer |
| 15-5 | 4 | NSS | NOT SERVICED SEPARATELY O-Ring |
| 15-4 | 4 | NSS | NOT SERVICED SEPARATELY O-Ring |
| 15-3 | 1 | NSS | NOT SERVICED SEPARATELY Gauge |
| 15-2 | 2 | NSS | NOT SERVICED SEPARATELY Screw -- M10x1.50x34mm Long |
| 15-1 | 2 | NSS | NOT SERVICED SEPARATELY Block |
| 15 | 1 | YN58S00009F1 | GAUGE Level |
| 14-1 | 12 | ZW16H10000 | WASHER ID 11 x OD 24 x Th 3.2mm |
| 14 | 12 | ZM73C10025 | BOLT M10x1.50x25mm (Incls. Washer) |
| 13 | 1 | ZD11G22000 | GASKET O-Ring -- ID 219.30 ± 1.68 x OD 222.66mm |
| 12 | 1 | YN33H01259P1 | COVER |
| 11 | 1 | LC33H01096P1 | COVER |
| Tank Assembly, LS33H00041F1, Incls 11 - 18 | |||
| 10-9 | 1 | LS52V01001R300 | ELEMENT Kit, Repair Incls. Refs. 10-1, 10-4, 10-5, & 17 |
| 10-8 | 1 | LS52V01001R200 | REPAIR KIT Incls. Refs. 10-1, 10-2, 10-3, 10-4, 10-5, 10-6, & (LS33H01053P1 (Adapter) Not Used) |
| 10-7 | 1 | LS52V01001R100 | ENGINE OIL FILTER Kit, Incls. Refs. 10-1, 10-4, 10-5, & (ZD11G20000 (O-Ring) Not used) |
| 10-6 | 1 | LC33H01009P1 | SPRING |
| 10-5 | 1 | YN52V01008S005 | PACKING |
| 10-4 | 1 | ZD11G09000 | O-RING ID 89.40 ± 0.77 x OD 95mm |
| 10-3 | 1 | LS21V00006P1 | CHECK VALVE |
| 10-2 | 1 | YN52V01008S002 | PLATE |
| 10-1 | 3 | YN52V01011P1 | FILTER See Figure 01-01 |
| 10 | 1 | LS52V01001F2 | ELEMENT |
| 9 | 4 | ZW26K06000 | LOCK WASHER ID 06 x OD 11 x Th 1.5mm |
| 8 | 4 | ZS28C06016 | SCREW M06x1.0x16mm |
| 7-8 | 1 | 2446U260S8 | PACKING |
| 7-7 | 1 | NSS | NOT SERVICED SEPARATELY Seal |
| 7-6 | 1 | 2446U260S10 | NUT M12x1.25mm |
| 7-5 | 1 | NSS | NOT SERVICED SEPARATELY Nut |
| 7-4 | 1 | NSS | NOT SERVICED SEPARATELY Seal |
| 7-3 | 1 | NSS | NOT SERVICED SEPARATELY Cover |
| 7-2 | 1 | YN57V00004S002 | ELEMENT Filter -- See Figure 01-01 |
| 7-1 | 1 | NSS | NOT SERVICED SEPARATELY Body |
| 7 | 1 | YN57V00004F1 | BREATHER Incls. Refs. 7-1 - 7-8 |
| 1 | 2446R176S05 | SPRING Not Shown | |
| 1 | 2446R176S02 | GUIDE Holder, Spring -- Not Shown | |
| 6-4 | 1 | NSS | NOT SERVICED SEPARATELY O-Ring |
| 6-3 | 1 | LS50V00007S001 | ELEMENT Strainer -- Incls. Refs. 6-4 |
| 6-2 | 1月2日 | ZN16C10008 | NUT M10x1.50mm |
| 6-1 | 1 | LS50V00007S003 | BOLT Bolt |
| 6 | 1 | LS50V00007F1 | FILTER STRAINER Section |
| Hydraulic Tank Assembly, LS33H00026F1, Incls. Refs. 6 - 10 | |||
| 5 | 1 | LV21V00003F1 | HYDRAULIC VALVE Valve, Check |
| 4 | 1 | LV21V00004F1 | HYDRAULIC VALVE Valve, Check |
| 3 | 3 | HY25X24050G1 | SHIM (1.0) |
| 2 | 4 | ZW13H20000 | WASHER ID 20 x OD 40 x Th 4.5mm |
| 1 | 4 | ZS13C20045 | SCREW M20x2.50x45mm |
| Hydraulic Tank Installation, LS33H00042F1, Incls. Refs. 1 - 5 | |||
| Hydraulic Tank Assembly, LS33H00031F1 |
