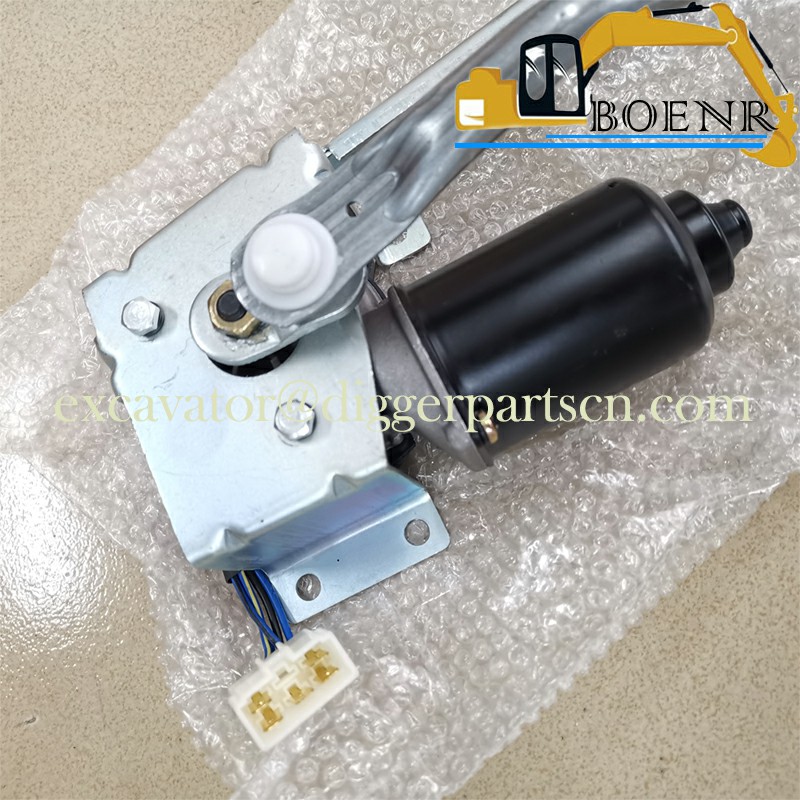

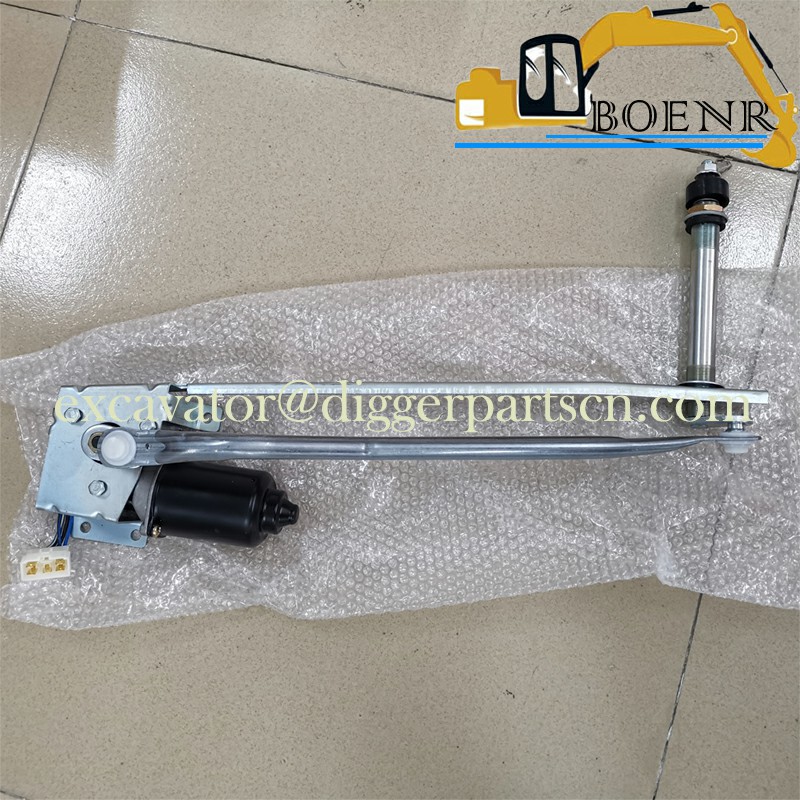

LQ53C00003S001 Wiper Motor For SK200-10 SK200-8 SK210-8 SK250-8 SK210-9 SK260-9 SK295-9 SK350-9
SK200-10 SK200-8 SK210-8 SK250-8 SK210-9 SK260-9 SK295-9 SK350-9 SK485LC-9 Wiper Motor LQ53C00003S001
| Part Name | Wiper Motor | Part Number | LQ53C00003S001 |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-10 SK200-8 SK210-8 SK250-8 SK210-9 SK260-9 SK295-9 SK350-9 SK485LC-9 |
Weight:5KG

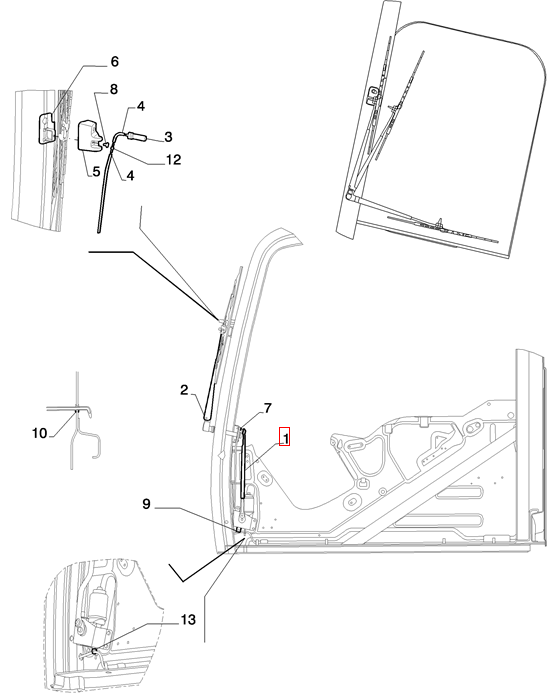

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 2 | ZM73C06016 | BOLT M06x1.0x16mm (Incls. Washer)(Not Shown) | |
| 1 | YT54C00003F1 | TANK ASSY, Washer (Not Shown) | |
| 13 | 1 | LQ14E00014S005 | COLLAR |
| 12 | 1 | LQ53C00003S012 | HYD CONNECTOR |
| 10 | 1 | LQ53C00003S010 | GROMMET |
| 9 | 4 | LQ53C00003S009 | NUT |
| 8 | 1 | LQ02C00031S030 | SCREW |
| 7 | 2 | LQ02C00031S032 | BOLT |
| 6 | 1 | LQ53C00003S006 | PACKING |
| 5 | 1 | LQ53C00003S005 | INLET MANIFOLD |
| 4 | 1 | LQ53C00003S004 | TUBE |
| 3 | 1 | LQ53C00003S003 | NOZZLE |
| 2 | 1 | LQ53C01001F1 | WIPER ARM |
| 1 | 1 | LQ53C00003S001 | WIPER MOTOR |
