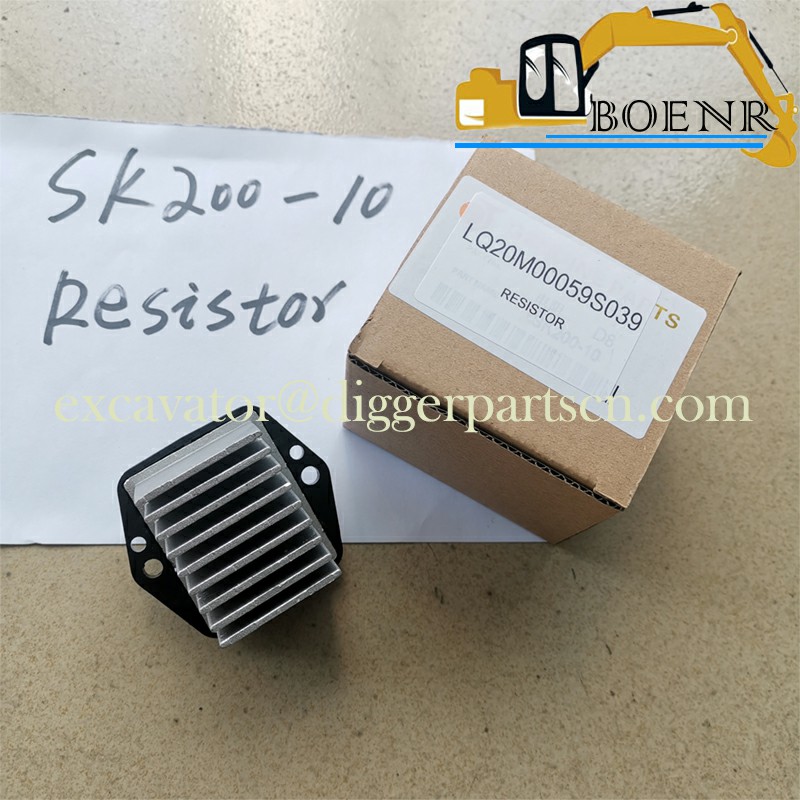

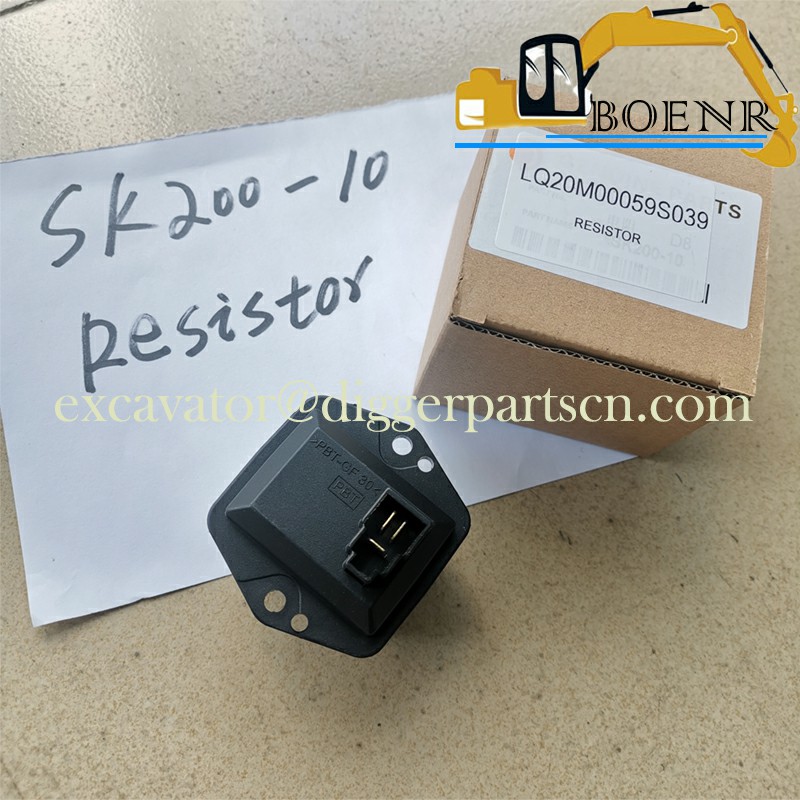

LQ20M00059S039 Air Conditioning Resistor For SK140SR SK200-8 SK210-8 SK260-9 SK295-9 SK350-8 SK350-9
SK140SR SK200-8 SK210-8 SK260-9 SK295-9 SK350-8 SK350-9 SK485-9 SK200-10 SK250-10 SK260-10 Air Conditioning Resistor LQ20M00059S039
| Part Name | Resistor | Part Number | LQ20M00059S039 |
| Brand | Kobelco Kobeki | Applicable Model | SK140SR SK200-8 SK210-8 SK260-9 SK295-9 SK350-8 SK350-9 SK485-9 SK200-10 SK250-10 SK260-10 |
Weight: 0.5 kg

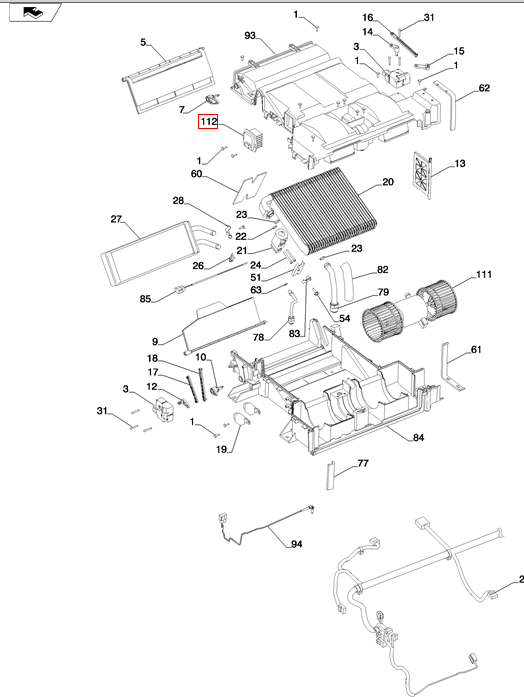

Parts Layout Diagram
Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 112 | 1 | LQ20M00059S039 | RESISTOR |
| 111 | 1 | YN20M00107S111 | ELECTRIC BLOWER |
| 94 | 1 | YN20M00107S094 | THERMOSTAT |
| 93 | 1 | YN20M00107S093 | BOX |
| 85 | 1 | YN20M00107S085 | SENSOR |
| 84 | 1 | YN20M00107S084 | BOX |
| 83 | 1 | YN20M00107S083 | BRACKET |
| 82 | 1 | YN20M00107S082 | RIGID TUBE |
| 79 | 1 | YN20M00107S079 | RIGID TUBE |
| 78 | 1 | YN20M00107S078 | RIGID TUBE |
| 77 | 1 | YN20M00107S077 | GASKET |
| 63 | 1 | YN20M00107S063 | GASKET |
| 62 | 1 | YN20M00107S062 | PACKING |
| 61 | 1 | YN20M00107S061 | PACKING |
| 60 | 1 | YN20M00107S060 | PACKING |
| 54 | 1 | YN20M00107S054 | SCREW |
| 51 | 1 | YN20M00107S051 | PLATE |
| 31 | 6 | YN20M00107S031 | SCREW |
| 28 | 1 | YN20M00107S028 | HOLDER |
| 27 | 1 | YN20M00107S027 | CORE |
| 26 | 1 | YN20M00107S026 | HOLDER |
| 24 | 2 | YN20M00107S024 | SCREW |
| 23 | 2 | 2445Z1604D5 | O-RING |
| 22 | 1 | 2445Z1604D4 | O-RING |
| 21 | 1 | YN20M00107S021 | VALVE |
| 20 | 1 | YN20M00107S020 | EVAPORATOR |
| 19 | 2 | YN20M00107S019 | RELAY |
| 18 | 1 | YN20M00107S018 | ROD |
| 17 | 1 | YN20M00107S017 | ROD |
| 16 | 1 | YN20M00107S016 | ROD |
| 15 | 1 | YN20M00107S015 | LEVER |
| 14 | 1 | YN20M00107S014 | LEVER |
| 13 | 1 | YN20M00107S013 | DAMPER |
| 12 | 1 | YN20M00107S012 | LEVER |
| 10 | 1 | YN20M00107S010 | LEVER |
| 9 | 1 | YN20M00107S009 | DAMPER |
| 7 | 1 | YN20M00107S007 | LEVER |
| 6 | 1 | YN20M00107S006 | DAMPER |
| 3 | 2 | YN20M00107S003 | ACTUATOR |
| 2 | 1 | YT20M00022S002 | WIRE HARNESS |
| 1 | 19 | YN20M00107S001 | SCREW |
| CONDITIONER ASSY,AIR (YT20M00022F2) |
The Kobelco Model 8 and Model 10 share the same air conditioning components.
