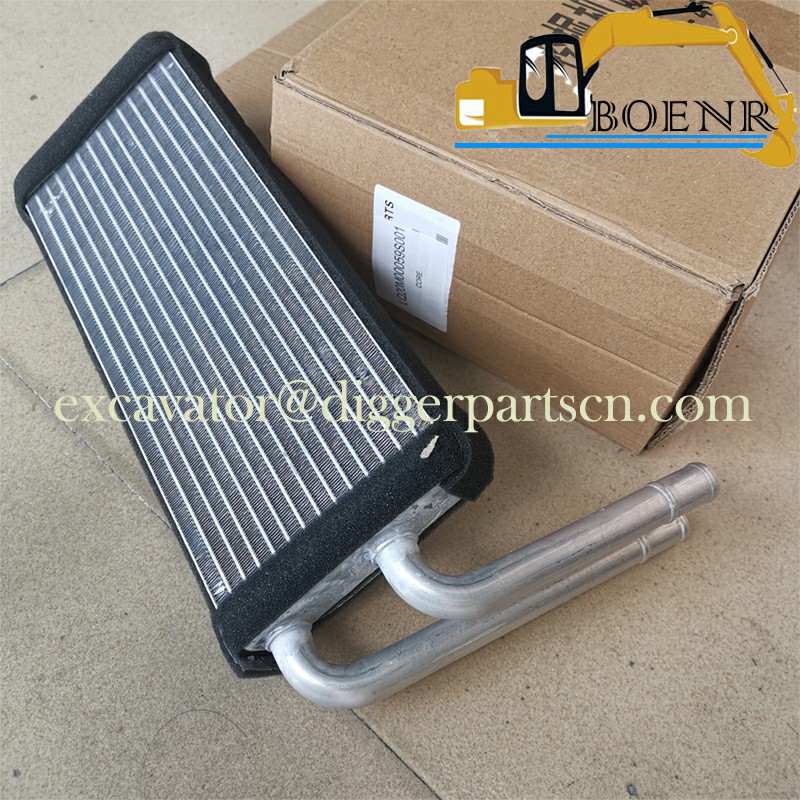

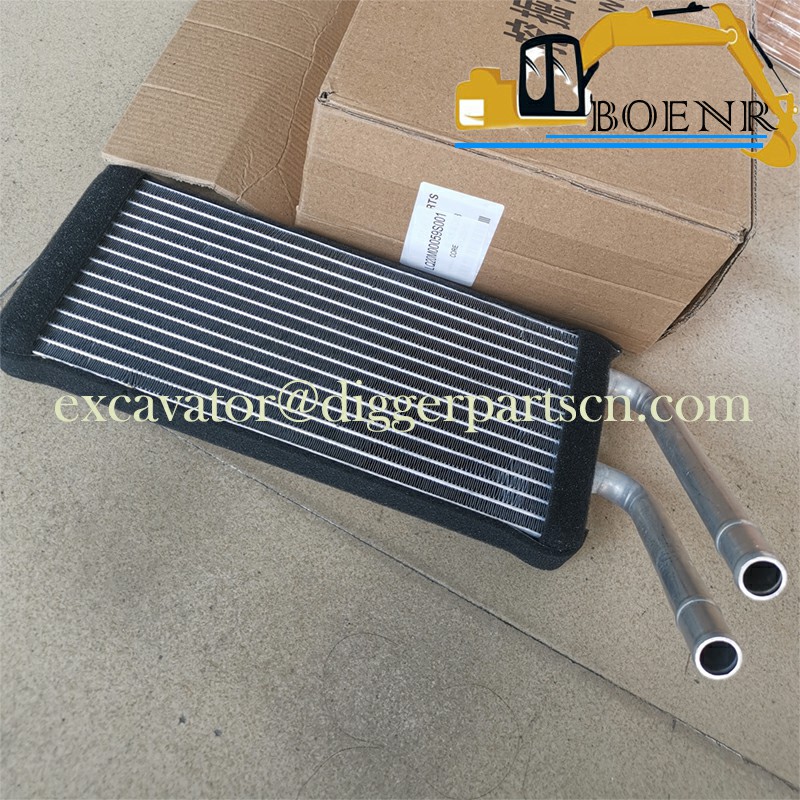

LQ20M00059S001 Air Conditioning Heater Core For SK140SR SK200-8 SK210-8 SK260-9 SK295-9 SK350-8
SK140SR SK200-8 SK210-8 SK260-9 SK295-9 SK350-8 SK350-9 SK485-9 SK200-10 SK250-10 SK260-10 Air Conditioning Heater Core LQ20M00059S001
| Part Name | Heater Core | Part Number | LQ20M00059S001 |
| Brand | Kobelco Kobeki | Applicable Model | SK140SR SK200-8 SK210-8 SK260-9 SK295-9 SK350-8 SK350-9 SK485-9 SK200-10 SK250-10 SK260-10 |
Weight: 10 kg

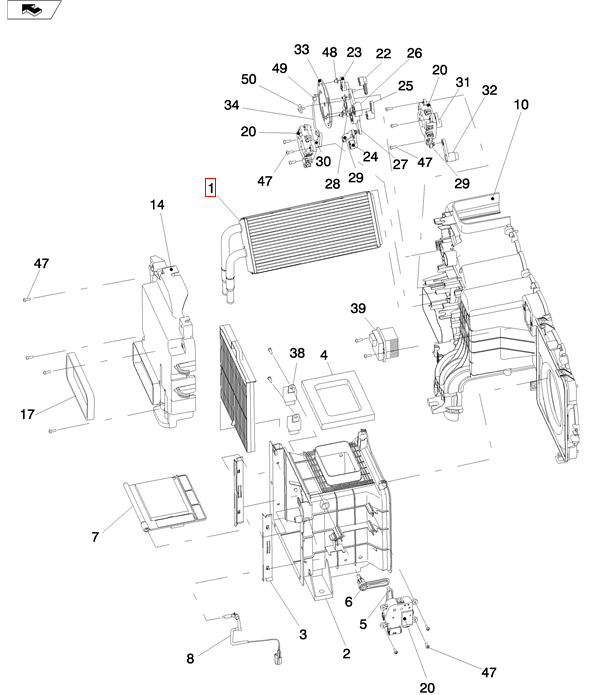

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 50 | 1 | LQ20M00059S050 | SCREW |
| 49 | 2 | LQ20M00059S049 | RETAINER |
| 48 | 4 | LQ20M00059S048 | BUSHING |
| 47 | 14 | LQ20M00059S047 | SCREW |
| 39 | 1 | LQ20M00059S039 | RESISTOR |
| 38 | 2 | LQ20M00059S038 | RELAY |
| 34 | 1 | LQ20M00059S034 | ROD |
| 33 | 1 | LQ20M00059S033 | LINK CONROD |
| 32 | 1 | LQ20M00059S032 | LEVER |
| 31 | 1 | LQ20M00059S031 | LEVER |
| 30 | 1 | LQ20M00059S030 | LEVER |
| 29 | 2 | LQ20M00059S029 | ROD |
| 28 | 1 | LQ20M00059S028 | UNIVERSAL JOINT |
| 27 | 1 | LQ20M00059S027 | UNIVERSAL JOINT |
| 26 | 1 | LQ20M00059S026 | UNIVERSAL JOINT |
| 25 | 1 | LQ20M00059S025 | LEVER |
| 24 | 1 | LQ20M00059S024 | LEVER |
| 23 | 1 | LQ20M00059S023 | LEVER |
| 22 | 1 | LQ20M00059S022 | LEVER |
| 20 | 3 | LQ20M00059S020 | ELECTRIC MOTOR |
| 17 | 1 | LQ20M00059S017 | GASKET |
| 15 | 1 | LQ50V01007P1 | FILTER |
| 14 | 1 | LQ20M00059S014 | COVER |
| 10 | 1 | LQ20M00059S010 | BOX |
| 8 | 1 | LQ20M00059S008 | SENSOR |
| 7 | 1 | LQ20M00059S007 | COVER |
| 6 | 1 | LQ20M00059S006 | LEVER |
| 5 | 1 | LQ20M00059S005 | LEVER |
| 4 | 1 | LQ20M00059S004 | GASKET |
| 3 | 1 | LQ20M00059S003 | BRACKET |
| 2 | 1 | LQ20M00059S002 | BOX |
| 1 | 1 | LQ20M00059S001 | RADIATOR |
