LQ16E01015P1 LQ16E01024P1 Alternator Wiring Harness For SK200-8 SK210-8 SK250-8 Sk260-8
SK200-8 SK210-8 SK250-8 Sk260-8 Alternator Wiring Harness LQ16E01015P1 LQ16E01024P1
| Part Name | Wiring Harness | Part Number | LQ16E01015P1 LQ16E01024P1 |
| Brand | Kobelco | Applicable Model | SK200-8 SK210-8 SK250-8 Sk260-8 |
Weight:0.6KG

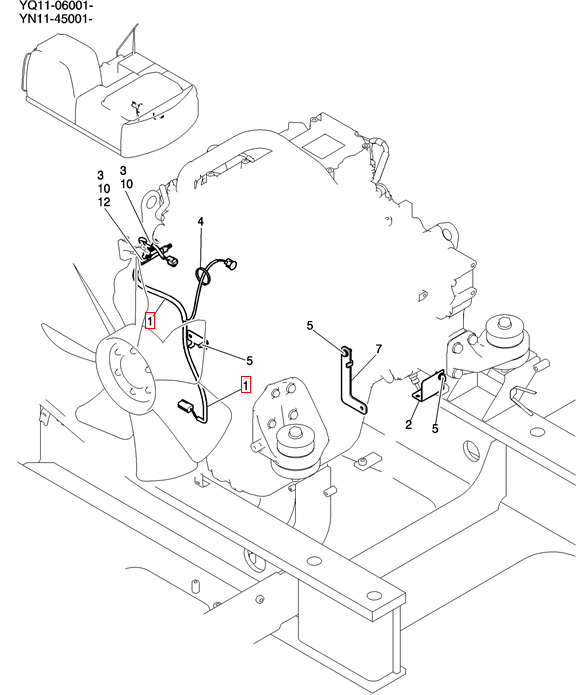

Image: Component Installation Diagram
Parts Catlaog
| ITEM | QTY | Part Number | Part Name |
| 12 | 1 | ZY26X04010 | SPACER |
| 10 | 2 | ZM73C06020 | BOLT Sems |
| 8 | 1 | LQ16E01018P1 | BRACKET |
| 7 | 1 | LQ16E01019P1 | BRACKET |
| 5 | 3 | ZM73C08020 | BOLT Sems |
| 4 | 1 | PY01P01043D3 | CLIP |
| 3 | 2 | EW02E01016D2 | CLIP |
| 2 | 1 | LC16E01026P1 | BRACKET |
| 1 | 1 | LQ16E01015P1 | HARNESS |
| AR | LQ16E00010F1 | HARNESS Assy, Engine |
