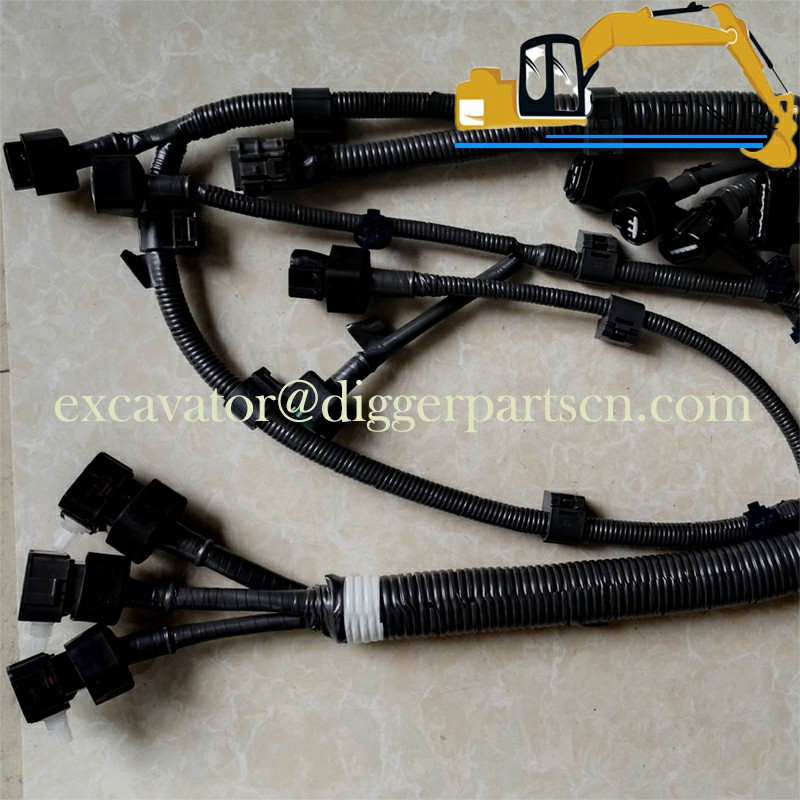

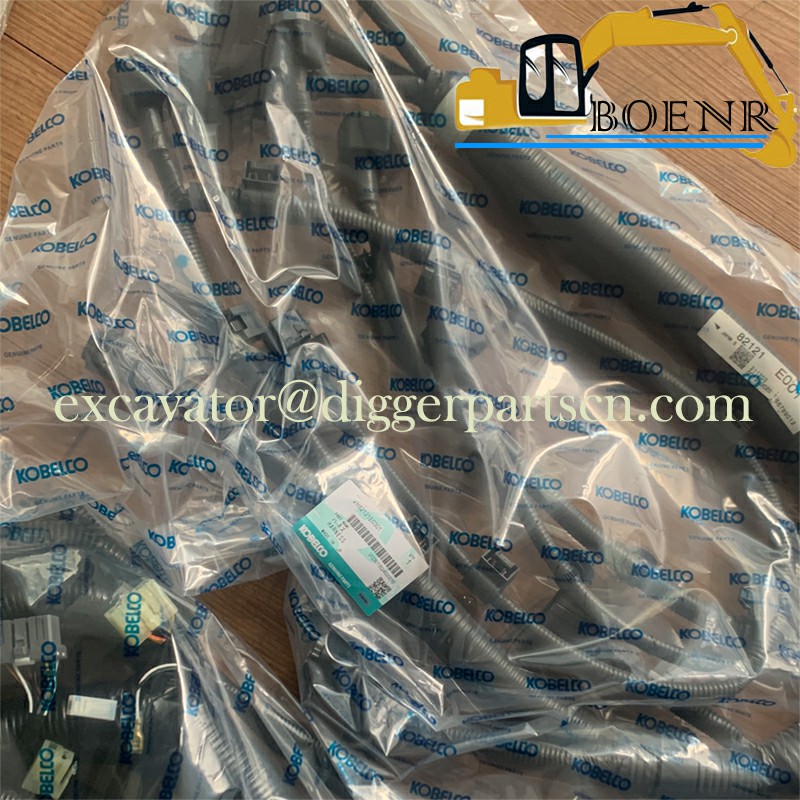

VH82121E0301 82121-E0301 J08E Engine Wiring Harness For SK350-10 SK350-8 SK330-8 SK380-8 SK380-10
SK350-10 SK350-8 SK330-8 SK380-8 SK380-10 J08E Engine Wiring Harness VH82121E0301 82121-E0301
| Part Name | Wiring Harness | Part Number | VH82121E0301 82121-E0301 |
| Brand | Kobelco、Hino | Applicable Model | SK350-10 SK350-8 SK330-8 SK380-8 SK380-10 SK330-10 |
Weight:5KG

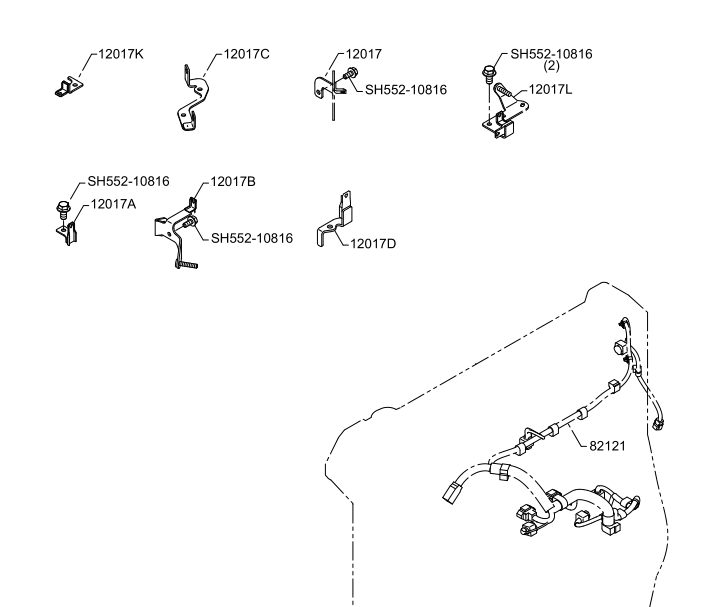

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 9854A | 2 | VH985412101A | CLIP |
| 9659B | 1 | VH965910111A | WASHER SOFT |
| 9659A | 1 | VH965914103A | WASHER SOFT |
| 9644A | 1 | VH964403136A | O-RING |
| 9412-10252 | 1 | VH941210252A | BOLT W/WASHER |
| 9280-14350 | 1 | VH928014350A | WASHER WASHER |
| 9262-10360 | 1 | VH926210360A | WASHER PLAIN |
| 9260-14270 | 2 | VH926014270A | WASHER PLAIN |
| 9241-14147 | 1 | VH924114147A | NUT |
| 9241-10107 | 1 | VH924110107A | NUT |
| 9240-08087 | 7 | VH924008087A | NUT |
| 9189A | 1 | VH918908135A | BOLT |
| 9069D | 1 | VH906914127A | BOLT FLANGE |
| 9068-60150 | 2 | VH906860150A | BOLT FLANGE |
| 9068-10650 | 1 | VH906810650A | BOLT FLANGE |
| 9068-08200 | 2 | VH906808200A | BOLT FLANGE |
| 9068-08160 | 5 | VH906808160A | BOLT FLANGE |
| 9068-08160 | 2 | VH906808160A | BOLT FLANGE |
| 9061-06140 | 4 | VH906106140A | BOLT |
| 9011-64401 | 1 | VH901164401A | BOLT |
| 900807 | 3 | VH900807101A | PROTECTION CAP BAND |
| 900239C | 1 | VH900239739A | HOSE AIR |
| 900149 | 1 | VH900149377A | BELT V-BELT SET |
| 900124 | 1 | VH900124171A | BOLT |
| 89411 | 1 | VH894111280A | SENSOR ASSY, SPEED |
| 89410A | 1 | VH894101290A | SENSOR ASSY, SPEED |
| 89410 | 1 | VH894101590A | SENSOR ASSY, SPEED |
| 89390 | 1 | VH893901080A | SENSOR ASSY, PRESSURE |
| 83530 | 1 | VH835301471A | SWITCH ASSY ASSY,OIL PRESS; Replaces VH835301471D |
| 83420 | 1 | VH834201250A | GAUGE ASSY, WATER TEMP |
| 82560 | 1 | VH825601200A | ELEC CONNECTOR ASSY |
| 82064B | 1 | VH820646621A | WIRE HARNESS ASSY, ENG |
| 82064A | 1 | VH820646621A | WIRE HARNESS ASSY, ENG |
| 82064 | 1 | VH820642530A | WIRE HARNESS ASSY, ENG |
| 82030 | 1 | VH820306450A | WIRE HARNESS ASSY |
| 79904 | 1 | VH799042230A | CLIP ASSY |
| 28100 | 1 | VH281002894A | STARTING MOTOR ASSY 24V-5KW See Fig.19-05 |
| 27040 | 1 | VH270402500A | ALTERNATOR ALTERNATOR ASSY, W/REG 24V-60A See Fig.19-04 |
| 19113 | 4 | VH191131050A | INSULATOR GLOW PLUG |
| 19112A | 1 | VH191121210A | WIRE HARNESS GLOW PLUG GROUND |
| 19112 | 2 | VH191121201A | WIRE HARNESS GLOW PLUG GROUND |
| 19110 | 4 | VH191101261A | GLOW PLUG ASSY, GLOW |
| 13694 | 1 | VH136941180A | TACH GEN |
| 12511A | 1 | VH125114170A | BRACKET GEN |
| 12511 | 1 | VH125114330A | BRACKET GEN |
| 12509 | 1 | VH125092040A | BRACKET ASSY, GEN |
| 12017H | 1 | VH120172040A | BRACKET ASSY |
| 12017G | 1 | VH120172600A | BRACKET ASSY |
| 12017F | 1 | VH120173560A | BRACKET ASSY |
| 12017D | 1 | VH120173600A | BRACKET ASSY |
| 12017C | 1 | VH120173220A | BRACKET ASSY |
| 12017B | 1 | VH120172872A | BRACKET ASSY |
| 12017A | 1 | VH120172171A | BRACKET ASSY |
| 12017 | 1 | VH120172082A | BRACKET ASSY |
