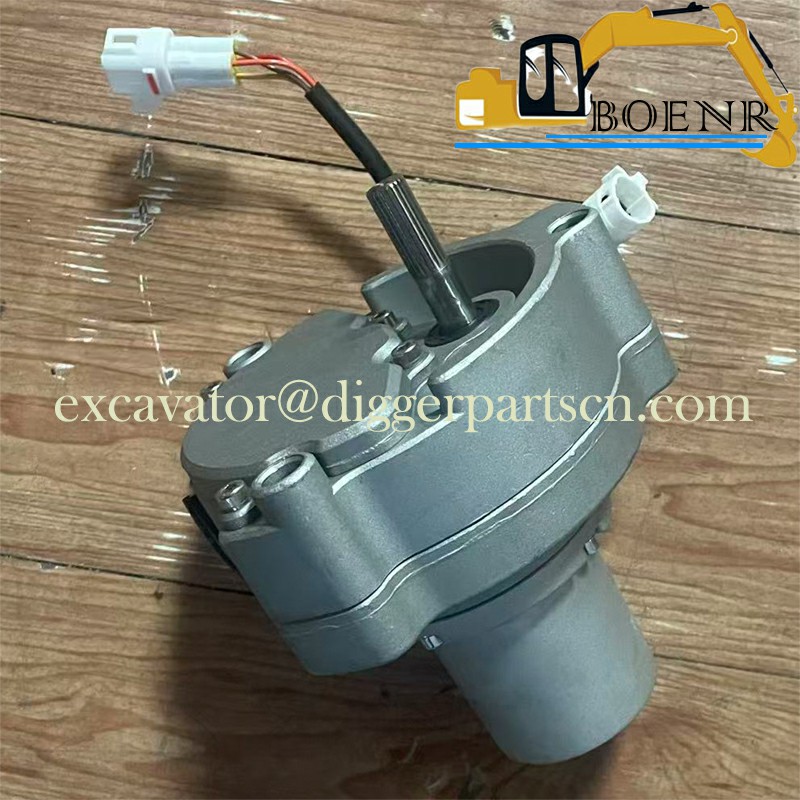

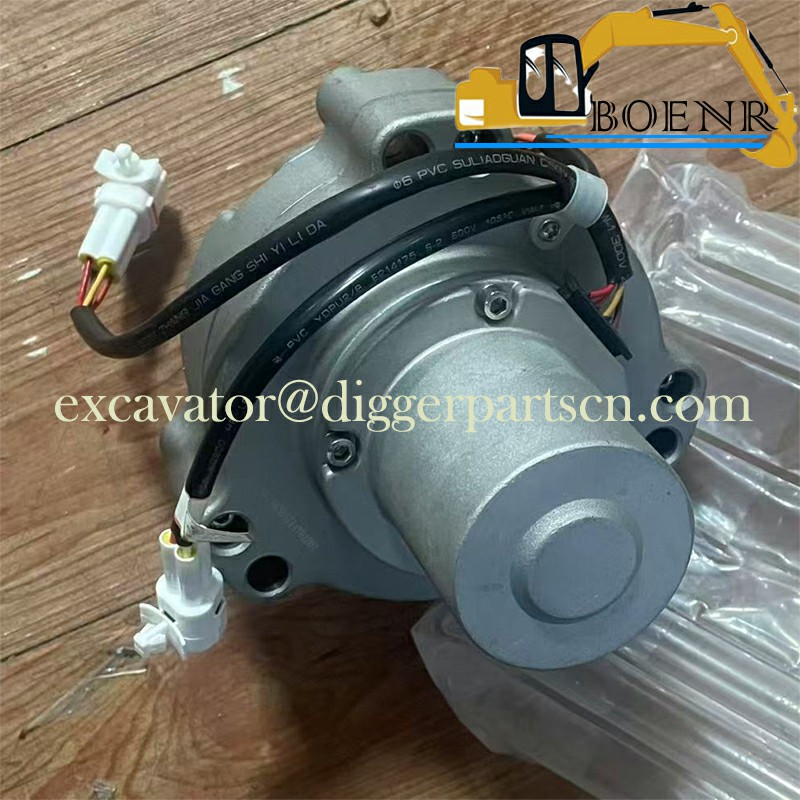

2406U197F3 2406U197F4 2406U197F1 Throttle Stepping Motor Assembly For SK200-3 SK200-5 SK220-3
SK200-3 SK200-5 SK220-3 SK220-5 Throttle Stepping Motor Assembly 2406U197F3 2406U197F4 2406U197F1
| Part Name | Throttle Stepping Motor | Part Number | 2406U197F3 2406U197F4 2406U197F1 |
| Brand | Kobeki | Applicable Model | SK200-3 SK200-5 SK220-3 SK220-5 |
Weight: 3 kg

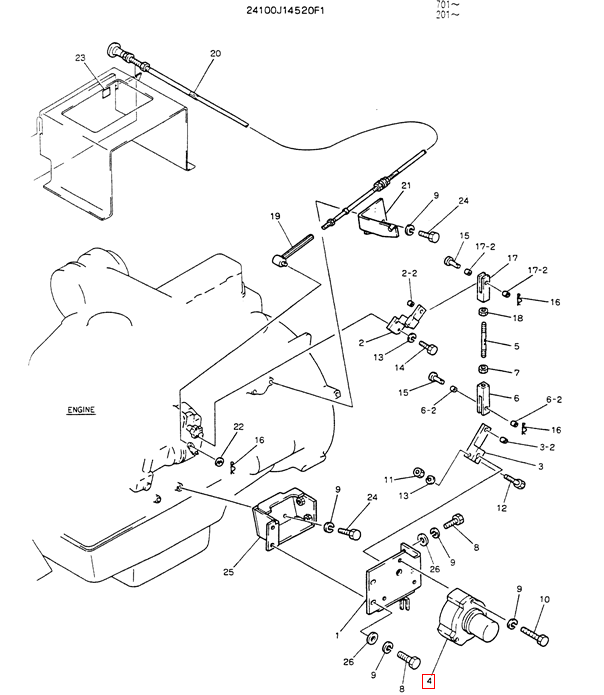

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 26 | 4 | ZW16X10000 | ID 10 x OD 21 x Th 2.0mm |
| 25 | 1 | 2416N6475 | BRACKET |
| 24 | 6 | ZS18C10025 | M10x1.50x25mm |
| 23 | 1 | 2432T4615 | Decal -- 45x45mm Red triangle |
| 22 | 1 | ZW16X06000 | ID 06 x OD 12.5 x Th 1.6mm |
| 21 | 1 | 2416P17774 | BRACKET |
| 20 | 1 | 2406R494D1 | CABLE, CONTROL |
| 19 | 1 | 2419T7017 | PIN ASSY |
| 18 | 1 | 2420T7359 | M08x1.25mm -- Left Hand Threads |
| 17-2 | 2 | 2405R61D17 | BUSHING |
| 17 | 1 | 2420Z1347 | ROD END ASSY |
| 16 | 3 | 2419R9D1 | OD 06mm x 21.2mm Long |
| 15 | 2 | 2419Z216 | PIN |
| 14 | 2 | ZS18C06020 | M06x1.0x20mm |
| 13 | 3 | ZW26X06000 | ID 06 x OD 07 x Th 1.5mm |
| 12 | 1 | ZS23C06025 | M06x1.0x25mm |
| 11 | 1 | ZN18C06005 | M06x1.0mm |
| 10 | 3 | ZS18C10080 | M10x1.50x80mm |
| 9 | 13 | ZW26X10000 | ID 10 x OD 18 x Th 2.5mm |
| 8 | 4 | ZS18C10035 | M10x1.50x35mm |
| 7 | 1 | ZN18C08007 | M08x1.25mm |
| 6-2 | 2 | 2405R61D17 | BUSHING |
| 6 | 1 | 2420Z1346 | ROD END ASSY |
| 5 | 1 | 2420Z3126 | ROD |
| 4 | 1 | 2406U197F3 | ACCELERATOR ASSY |
| 3-2 | 1 | 2405R61D15 | BUSHING |
| 3 | 1 | 2406T3075 | LEVER ASSY |
| 2-2 | 1 | 2405R61D17 | BUSHING |
| 2 | 1 | 2406T3100 | LEVER ASSY |
| 1 | 1 | 2416P17815 | BRACKET |
| 24100J14520F1 | CONTROL ASSY, ENGINE |
