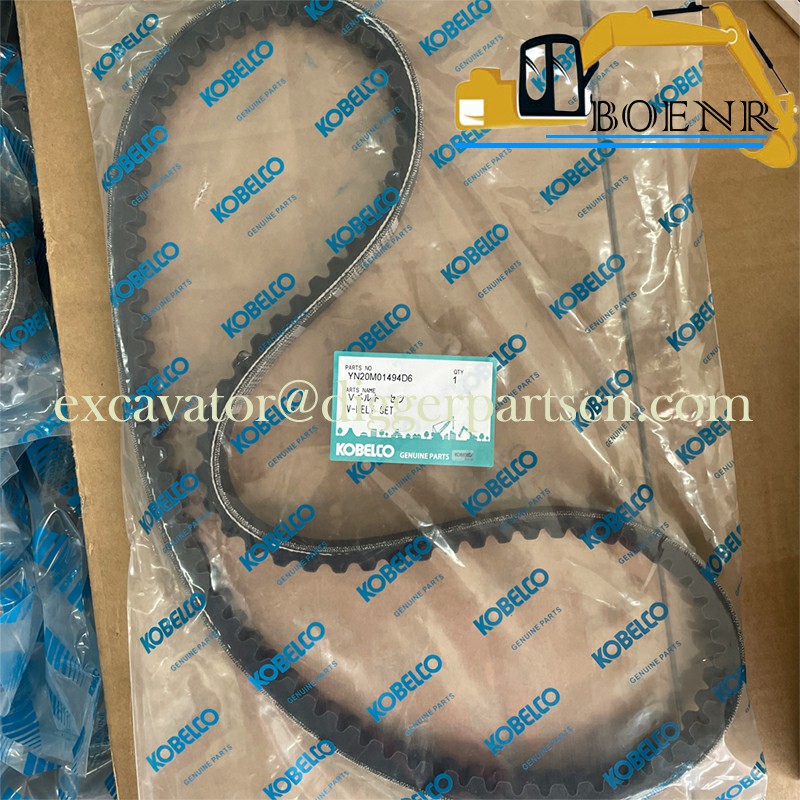

YN20M01494D6 Air Conditioning Belt For SK485-8 SK485LC-9 SK460-8 SK480-8

SK485-8 SK485LC-9 SK460-8 SK480-8 Air Conditioning Belt YN20M01494D6

Part Name	Belt	Part Number	YN20M01494D6
Brand	Kobelco, Kobeki	Applicable Model	SK485-8 SK485LC-9 SK460-8 SK480-8

Weight: 0.2 kg

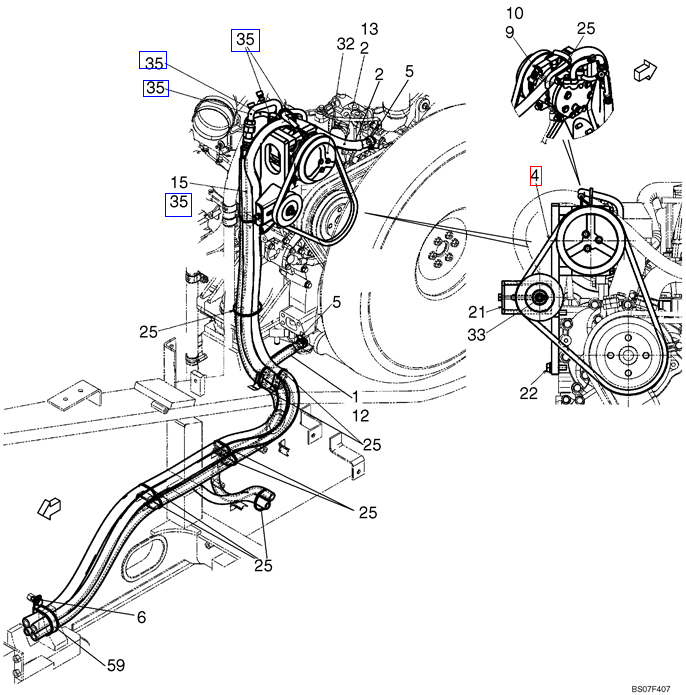

Image: Component Installation Diagram

Parts Catalog

ITEM	QTY	PART NUMBER	PART NAME
59	1	2432R325	CLIP ID 69 x 25mm
35	1	LS96V00026F1	Assembly, ASN YS07U0791
35	1	LS96V00010F1	RECEIVER-DRYER Assembly, Air --See Figure 02-68, BSN YS07U0790
	1	YN20M01696F1	PULLEY Used after date 10/22/2007 - Up
33	1	YN20M01559F1	PULLEY Used from date 12/15/2006 - 10/22/2007
32	1	YX91V00001F1	COMPRESSOR See Figure 02-69
25	19	PY01P01043D4	CLIP Wire Ties -- 249mm Long
22	3	ZM73C10035	BOLT M10x1.50x35mm (Incls. Washer)
	1	LS20M01097P2	BRACKET Used after date 5/12/2008 - UP
21	1	LS20M01097P1	BRACKET Used from date 12/15/2006 - 05/12/2008
15	1	LQ20M01131D2	TUBE ID 25 x OD 30 x 2300mm Long
13	1	YN20M01046DN	TUBE Protective Plastic
12	1	YN20M01046DE	TUBE Protective Plastic
10	4	ZW16P08000	WASHER ID 08 x OD 17 x Th 1.6mm
9	4	ZS18C08100	SCREW Screw -- M08x1.25x100mm
6	6	ZM73C10025	BOLT M10x1.50x25mm (Incls. Washer)
5	4	ZC16X02000	CLIP Clamp, Hose -- Min 15 x Max 25mm
4	1	YN20M01494D6	V-BELT 1067mm Long (42 in)
2	1	HX11W08430DX	HOSE ID 13 x OD 21 x 4300mm Long (169-9/32 in)
1	1	HX11W08320DX	HOSE ID 13 x OD 21 x 3200mm Long (126 in)
