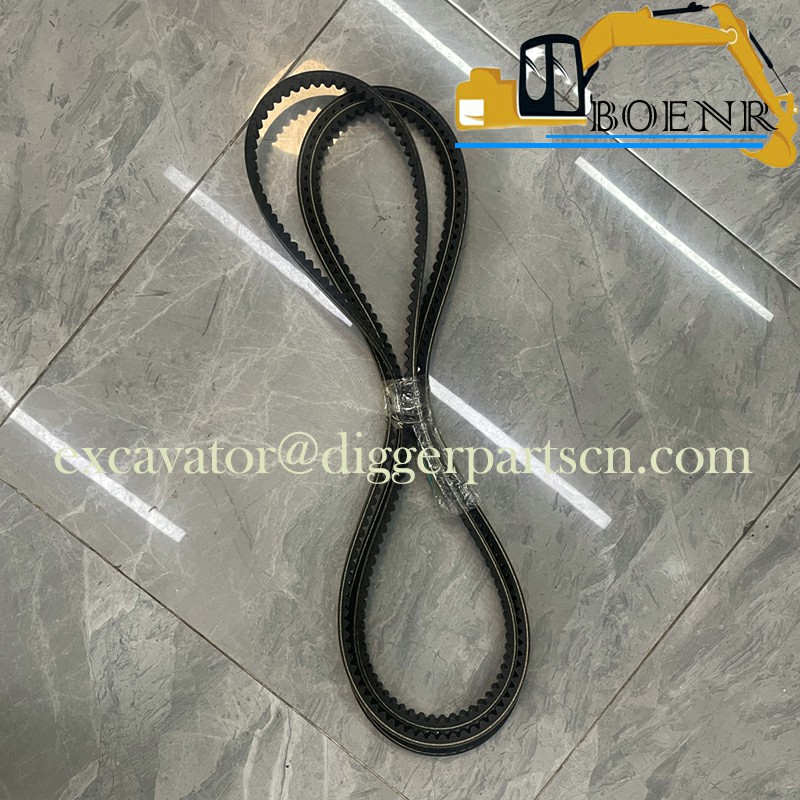

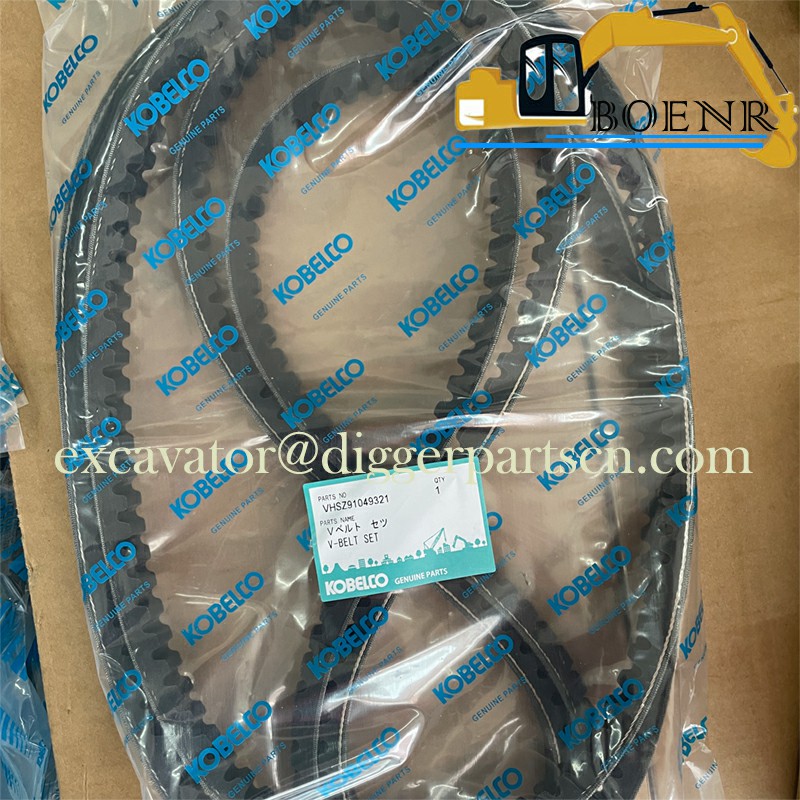

VHSZ91049278 VHSZ91049264 P11C Engine belt For SK485-9 SK480-8
SK485-9 SK480-8 P11C Engine belt VHSZ91049278 VHSZ91049264
| Part Name | belt | Part Number | VHSZ91049278 VHSZ91049264 |
| Brand | Kobelco, Kobeki | Applicable Model | SK485-9 SK480-8 |
Weight: 1KG

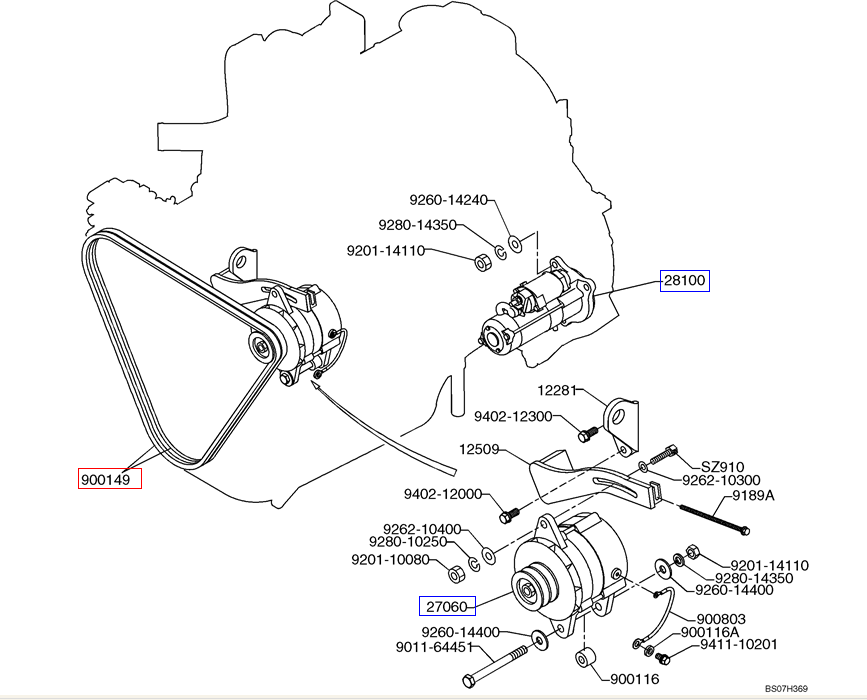

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| SZ910 | 1 | VHSZ91024453 | BOLT Bolt |
| 9411-10201 | 1 | VH941110201A | BOLT Bolt |
| 9402-12300 | 1 | VH940212300A | BOLT Bolt, With Washer |
| 9402-12000 | 2 | VH940212000A | BOLT Bolt, With Washer |
| 9280-14350 | 4 | VH928014350A | LOCK Washer |
| 9280-10250 | 1 | VH928010250A | LOCK Washer |
| 9262-10400 | 1 | VH926210400A | WASHER Washer |
| 9262-10300 | 1 | VH926210300A | WASHER Washer |
| 9260-14400 | 2 | VH926014400A | WASHER Washer |
| 9260-14240 | 3 | VH926014240A | WASHER Washer |
| 9201-14110 | 4 | VH920114110A | NUT Nut |
| 9201-10080 | 1 | VH920110080A | NUT |
| 9189A | 1 | VH918908158A | BOLT Bolt |
| 9011-64451 | 1 | VH901164451A | BOLT Bolt |
| 900803 | 1 | VH900803105A | STRAP Strap, Ground |
| 900149 | 1 | VHSZ91049264 | BELT Belt, Alternator |
| 900116A | 1 | VH900116115B | SPACER Spacer (4.5) |
| 900116 | 1 | VH900116602A | SPACER Spacer (22.5) |
| 28100 | 1 | VH28100E0010 | STARTER MOTOR Starter Assembly, 24V-6KW -- See Figure 19-27 |
| 27060 | 1 | VH27060E0190 | ALTERNATOR Alternator Assembly, 24V-60A -- See Figure 19-26 |
| 12509 | 1 | VH125092050A | BRACKET Support, Alternator |
| 12281 | 1 | VH122811670A | HANGER Support |
