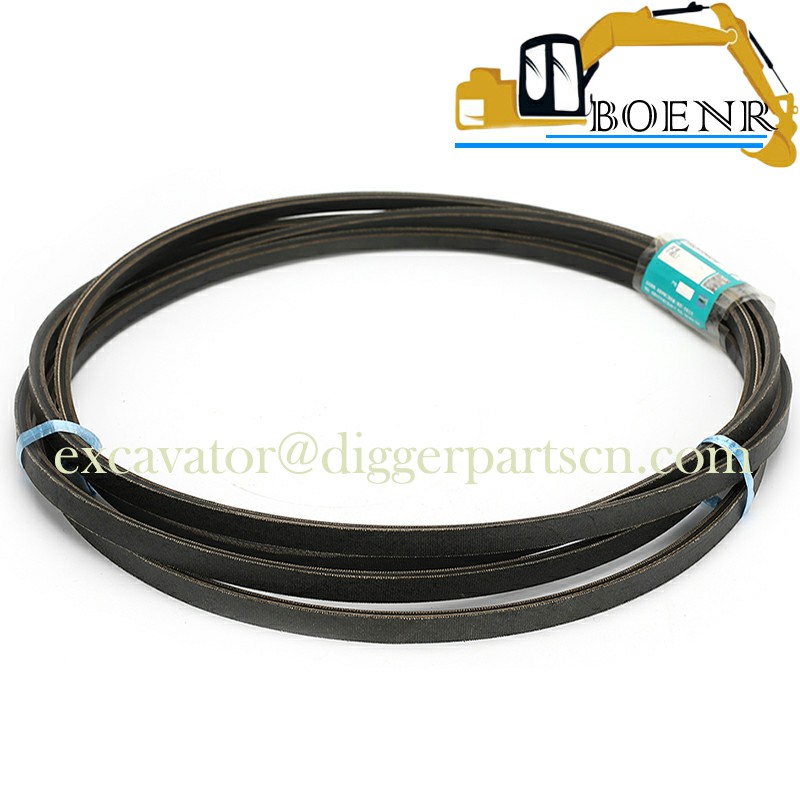

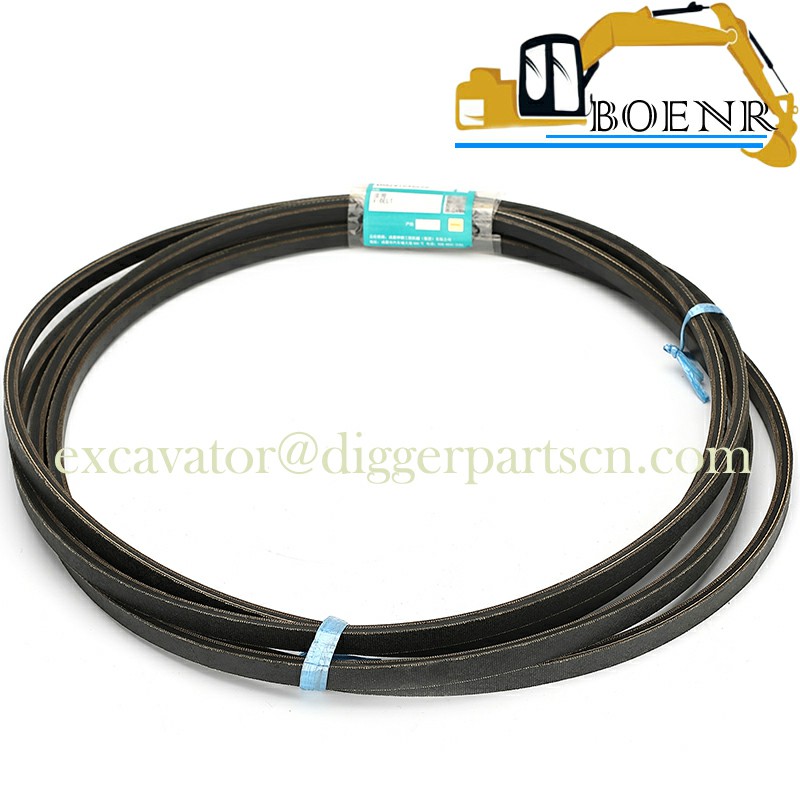

VHSZ91049259 J08E Engine Belt For SK330-8 Sk350-8 Sk380-8 SK350-10 SK380-10
SK330-8 Sk350-8 Sk380-8 J08E Engine Belt VHSZ91049259
| Part Name | Belt | Part Number | VHSZ91049259 |
| Brand | Kobelco, Kobeki | Applicable Model | SK330-8 Sk350-8 Sk380-8 SK350-10 SK380-10 |
Weight: 0.6 kg

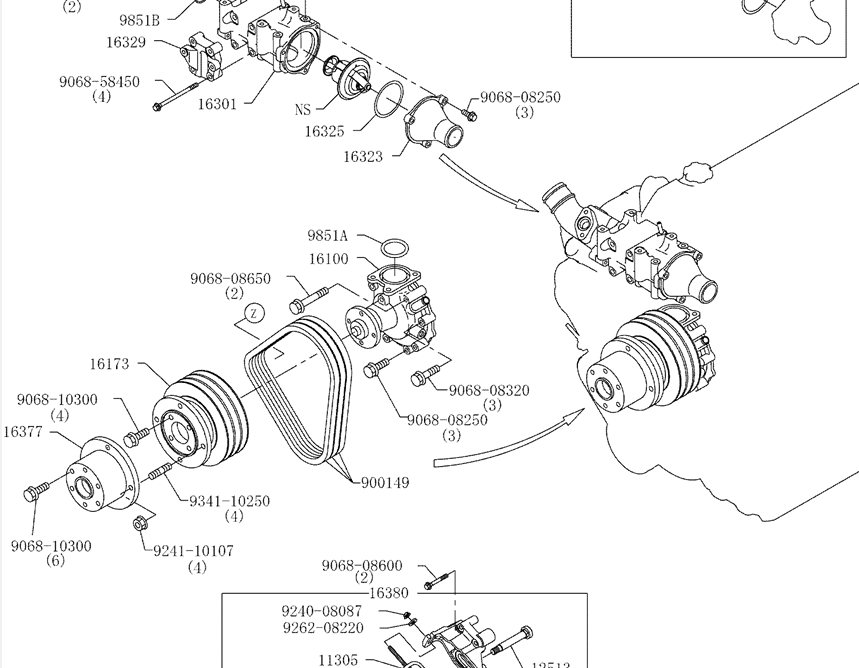

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 9881A | 2 | VH988125117A | BALL BEARING |
| 9851B | 1 | VHSZ30153006 | O-RING |
| 9851A | 1 | VH985160110A | O-RING |
| 9813-52200 | 1 | VH981352200A | RING RETAINER |
| 9341-10250 | 4 | VH934110250A | STUD |
| 9280-14350 | 1 | VH928014350A | WASHER WASHER |
| 9262-14360 | 1 | VH926214360A | WASHER PLAIN |
| 9262-08220 | 1 | VH926208220A | WASHER PLAIN |
| 9241-10107 | 4 | VH924110107A | NUT |
| 9240-08087 | 1 | VH924008087A | NUT |
| 9201-14110 | 1 | VH920114110A | NUT |
| 9069A | 3 | VH906908108A | BOLT FLANGE |
| 9068-58450 | 4 | VH906858450A | BOLT FLANGE L=145 |
| 9068-12650 | 1 | VH906812650A | BOLT FLANGE |
| 9068-10300 | 6 | VH906810300A | BOLT FLANGE |
| 9068-10300 | 4 | VH906810300A | BOLT FLANGE |
| 9068-08650 | 2 | VH906808650A | BOLT FLANGE |
| 9068-08600 | 2 | VH906808600A | BOLT FLANGE |
| 9068-08320 | 3 | VH906808320A | BOLT FLANGE |
| 9068-08250 | 5 | VH906808250A | BOLT FLANGE |
| 9068-08250 | 3 | VH906808250A | BOLT FLANGE |
| 9068-08000 | 1 | VH906808000A | BOLT FLANGE |
| 900149 | 1 | VHSZ91049259 | V-BELT |
| 900116A | 1 | VH900116566A | SPACER |
| 900116 | 1 | VH900116187A | SPACER |
| 16384 | 1 | VH163841490A | PULLEY TENSION |
| 16383 | 1 | VH163831300A | SHAFT TENSION PULLEY |
| 16382 | 1 | VH163821740A | BRACKET TENSION PULLEY |
| 16380 | 1 | VH163802760A | PULLEY ASSY, BELT TENSION |
| 16377 | 1 | VH16377-2780A | FAN PULLEY |
| 16329 | 1 | VH16329-1461A | |
| 16325 | 1 | VH163251400A | GASKET THERMOSTAT |
| 16323 | 1 | VH163231751A | COVER ASSY THERMOSTAT CASE |
| NSS | NOT SERVICED SEPARATELY CASE | ||
| 16302 | 1 | VH163021220A | KIT SUB ASSY, THERMOSTAT |
| 16301 | 1 | VH163011850B | SUB ASSY, THERMOSTAT |
| 16173 | 1 | VH161733321A | PULLEY COOLANT PUMP |
| 16100 | 1 | VH16100E0070 | WATER PUMP ASSY, COOLANT |
| 12513 | 1 | VH125131250A | SHAFT GEN BKT |
| 11305 | 1 | VH113051230A | BRACKET SUB ASSY |
| 040166 | 1 | VHS040166107 | KIT |
