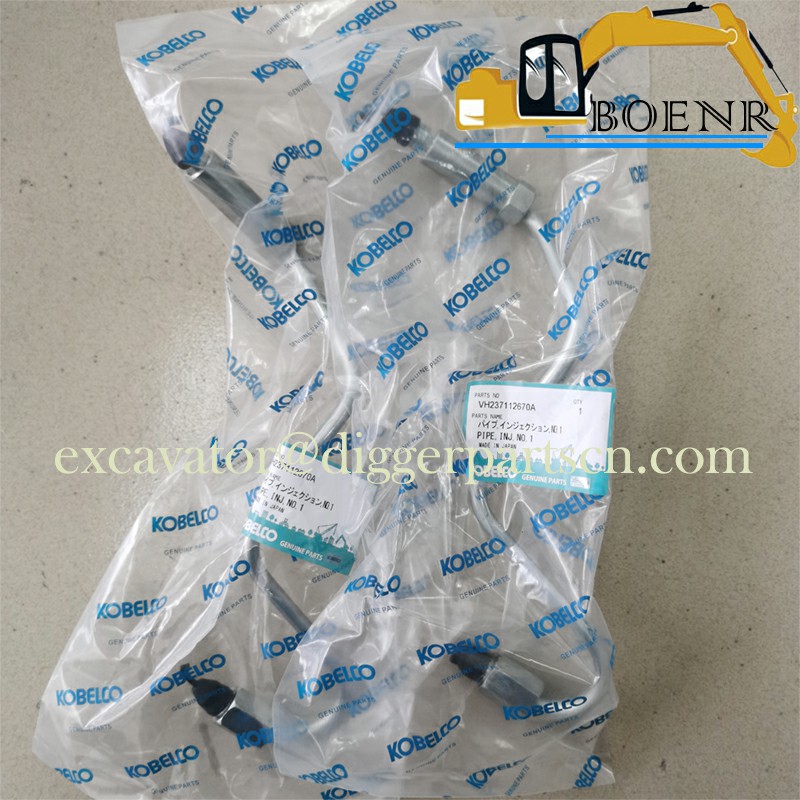

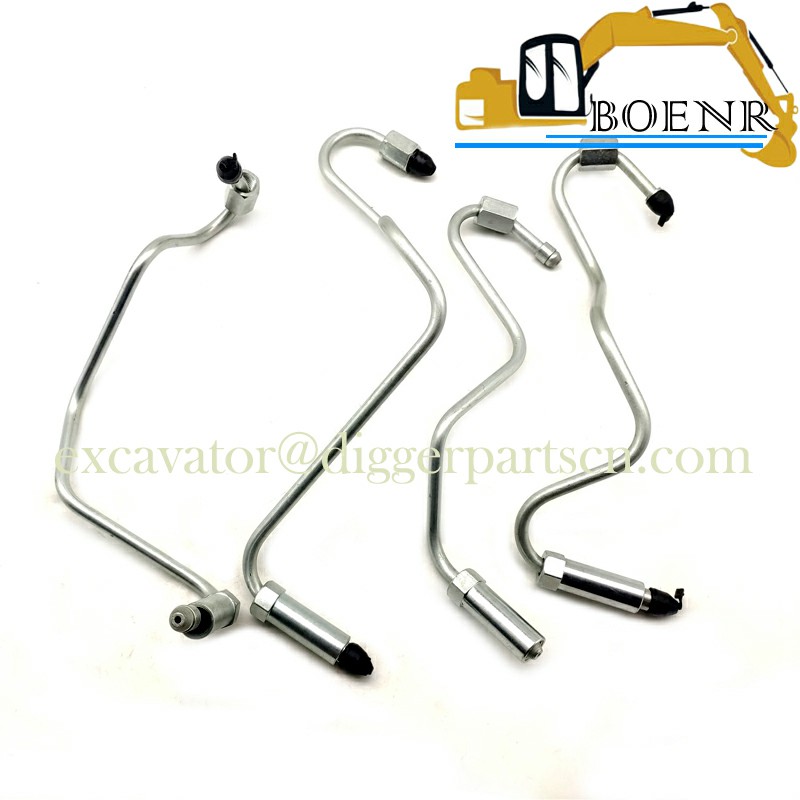

VH237112670A VHS237112670 J05E Engine High Pressure Oil Pipe For SK200-8 SK210-8 SK250-8 SK260-8
SK200-8 SK210-8 SK250-8 SK260-8 J05E Engine High Pressure Oil Pipe VH237112670A VHS237112670
| Part Name | Pipe | Part Number | VH237112670A VHS237112670 |
| Brand | Kobelco, kobeki、Hino | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 |
Weight: 0.5KG

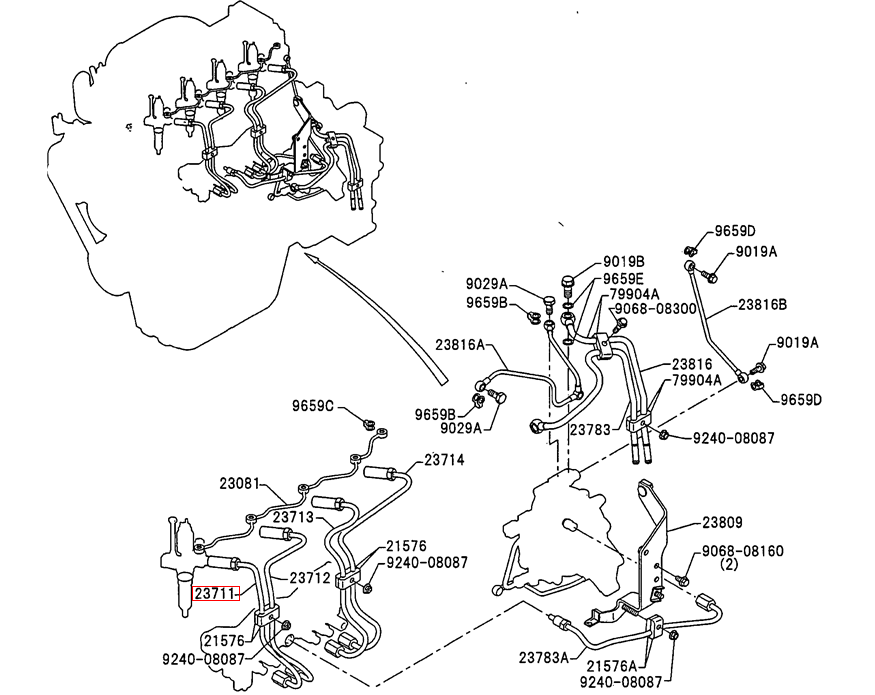

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 9851A | 2 | VH985101197A | O-RING |
| 9659E | 2 | VH965912111A | WASHER Soft |
| 9659D | 2 | VH965908119A | WASHER Soft |
| 9659C | 5 | VH965908120A | WASHER Soft |
| 9659B | 4 | VH965910119A | WASHER Soft |
| 9659A | 1 | VH965908104A | WASHER Soft |
| 9645A | 1 | VH964504935A | O-RING |
| 9600-08070 | 1 | VH960008070A | PLUG |
| 9504-03140 | 1 | VH950403140A | PIN Straight |
| 9321-08350 | 1 | VH932108350A | STUD |
| 9240-08087 | 4 | VH924008087A | NUT |
| 9068-08850 | 1 | VH906808850A | BOLT Flange |
| 9068-08550 | 2 | VH906808550A | BOLT Flange |
| 9068-08400 | 3 | VH906808400A | BOLT Flange |
| 9068-08350 | 3 | VH906808350A | BOLT Flange |
| 9068-08320 | 2 | VH906808320A | BOLT Flange |
| 9068-08300' | 1 | VH906808300A | BOLT Flange |
| 9068-08250 | 4 | VH906808250A | BOLT Flange |
| 9068-08160 | 2 | VH906808160A | BOLT Flange |
| 9029A | 4 | VH902910193A | BOLT |
| 9019B | 1 | VH901912424A | BOLT |
| 9019A | 2 | VH901908316A | BOLT |
| 900125 | 1 | VH900125101A | BOLT |
| 900124A | 4 | VH900124600A | BOLT |
| 900124 | 1 | VH900124510A | BOLT |
| 900115 | 4 | VH900115214A | GASKET |
| 82121 | 4 | VH82121E0610 | HARNESS Engine |
| 79904A | 4 | VH799041021A | CLIP Sub Assy |
| 23816B | 1 | VH23816E0090 | PIPE Fuel, No. 4 |
| 23816A | 1 | VH23816E0100 | PIPE Fuel, No. 4 |
| 23816 | 1 | VH23816E0080 | PIPE Fuel, No. 4 |
| 23810 | 1 | VH23810E0060 | RAIL ASSY. Common |
| 23809 | 1 | VH238092070A | BRACKET Sub Assy, Fuel Pipe |
| 23783A | 1 | VH237832480A | PIPE Fuel |
| 23783 | 1 | VH237832710A | PIPE Fuel |
| 23714 | 1 | VH237142590A | PIPE Inj, No.4 |
| 23713 | 1 | VH237132570A | PIPE Inj, No. 3 |
| 23712 | 1 | VH237122640A | PIPE Inj, No.2 |
| 23711 | 1 | VH237112670A | PIPE Inj, No. 1 |
| 23670 | 4 | VH23670E0050 | FUEL SYSTEM INJECTOR Assy |
| 23081 | 1 | VH230812650A | PIPE Sub Assy, Nozzle Leakage |
| 22835 | 4 | VH228351570A | BOLT Joint |
| 22825 | 1 | VH228252570A | NUT |
| 22512 | 1 | VH225122090A | COVER Timer |
| 22100 | 1 | VH22100E0030 | PUMP Assy, Supply |
| 21576A | 2 | VH21576E0010 | CLIP |
| 21576 | 4 | VH21576E0020 | CLIP |
| 21191 | 1 | VH211911221A | SENSOR Pulser |
| 16337 | 1 | VH16337E0010 | STAY Stay, Water Outlet |
| 15771 | 1 | VH15771E0010 | PIPE Inj, No.1 |
| 13603 | 1 | VH136031190A | GEAR Sub Assy, In Pump Drive |
| 13581 | 1 | VH135811751A | SHAFT Idle Gear |
| 13572 | 1 | VH135721320A | PLATE Idle Gear Thrust |
| 13505 | 1 | VH135052581A | GEAR Sub Assy, Idle |
| 11491A | 1 | VH114912470A | BRACKET Inj. Pump |
| 11334 | 1 | VH11334E0020 | HOLDER Injection Pump |
| 11195 | 4 | VH111951180A | CLAMP Nozzle Holder |
