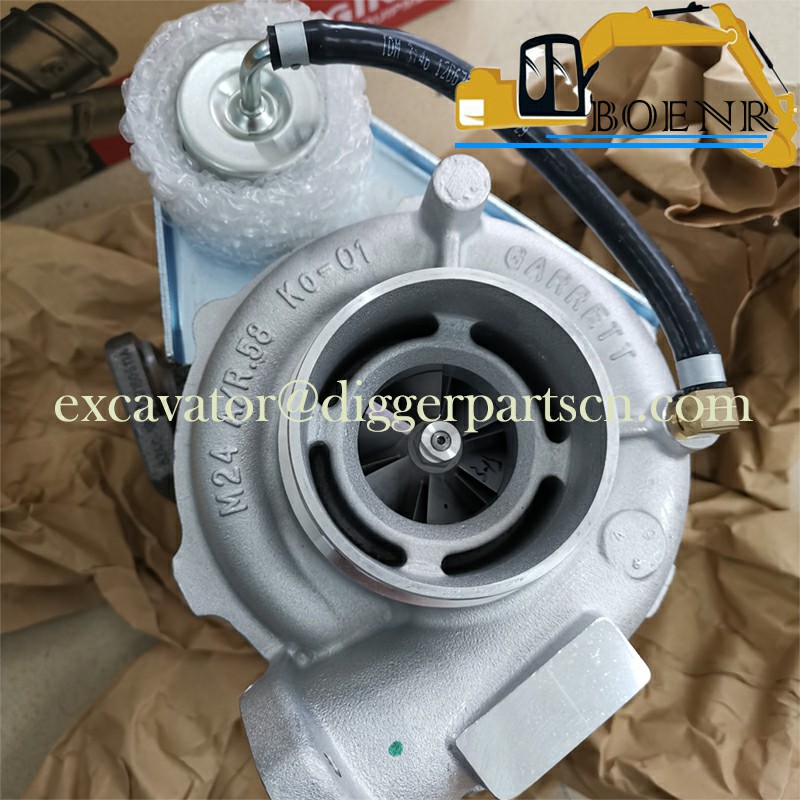

VHS1760E0190 241004640A S1760-E0200 J08E Engine Turbocharger For SK330-8 SK350-8 SK380-8
SK330-8 SK350-8 SK380-8 J08E Engine Turbocharger VHS1760E0190
| Part Name | Turbocharger | Part Number | VHS1760E0190 241004640A S1760-E0200 |
| Brand | Kobelco, Kobeki | Applicable Model | SK330-8 SK350-8 SK380-8 SK350-10 SK380-10 |
Weight: 12 kg
Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 9769A | 2 | 976900101A | CLAMP |
| 9659B | 4 | SL723-01414 | WASHER SOFT |
| 9659A | 6 | SZ430-16004 | WASHER SOFT |
| 9654-12100 | 2 | 965412100A | WASHER SOFT |
| 9369A | 5 | SZ116-08033 | STUD |
| 9359A | 6 | 935910127A | STUD |
| 9249B | 5 | 924908102A | NUT FLANGE |
| 9249A | 4 | 924910102A | NUT FLANGE |
| 9189A | 1 | 918908151A | BOLT |
| 9068-10200 | 2 | 906810200A | BOLT FLANGE |
| 9068-08450 | 2 | 906808450A | BOLT FLANGE |
| 9068-08250 | 5 | 906808250A | BOLT FLANGE |
| 9068-08160 | 1 | 906808160A | BOLT FLANGE |
| 9019C | 2 | 901916340A | BOLT |
| 9019B | 3 | 90191-4184E | |
| 9019A | 1 | 90191-2108C | |
| 900239 | 1 | SZ920-33895 | HOSE AIR |
| 24179 | 1 | S2417-91430 | GASKET |
| 24135 | 2 | S2413-51121 | GASKET OIL, OUTLET |
| 24109A | 1 | 24109-1850 | GASKET ASSY |
| 24109 | 1 | S2410-91650 | GASKET ASSY |
| 24107 | 1 | 241072150A | PIPE ASSY, OIL OUTLET |
| 24106 | 1 | 24106-1440 | PIPE ASSY. ASSY, OIL INLET |
| 24100 | 1 | 241004640A | TURBOCHARGER ASSY |
| 17458 | 1 | 17458-2960 | BRACKET BRACKET, EXH PIPE |
| 17159 | 1 | 171592720A | HYD CONNECTOR CONNECTOR, EXH MFLD |
| 17113 | 1 | 17113-9591A | PIPE, INTAKE |
| 17032 | 1 | 17032-1290 | PIPE ASSY. PIPE SUB ASSY, INTAKE |
| 16691A | 1 | 16691-3770 | PIPE PIPE, COOLANT |
| 16691 | 1 | 16691-3760 | PIPE PIPE, COOLANT |
| S1760-E0200 | TURBOCHARGER TURBOCHARGER |
