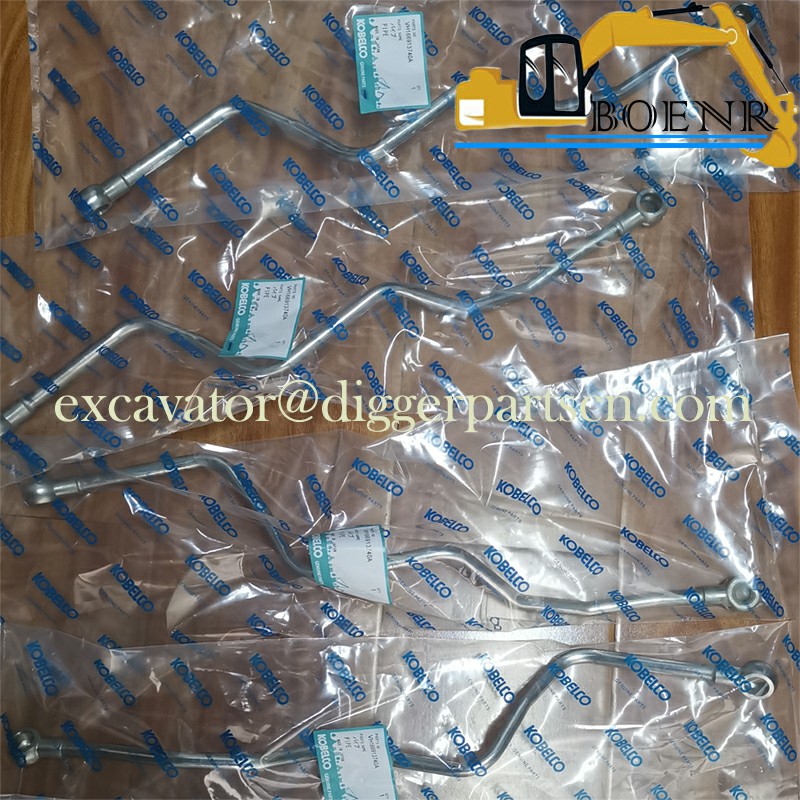

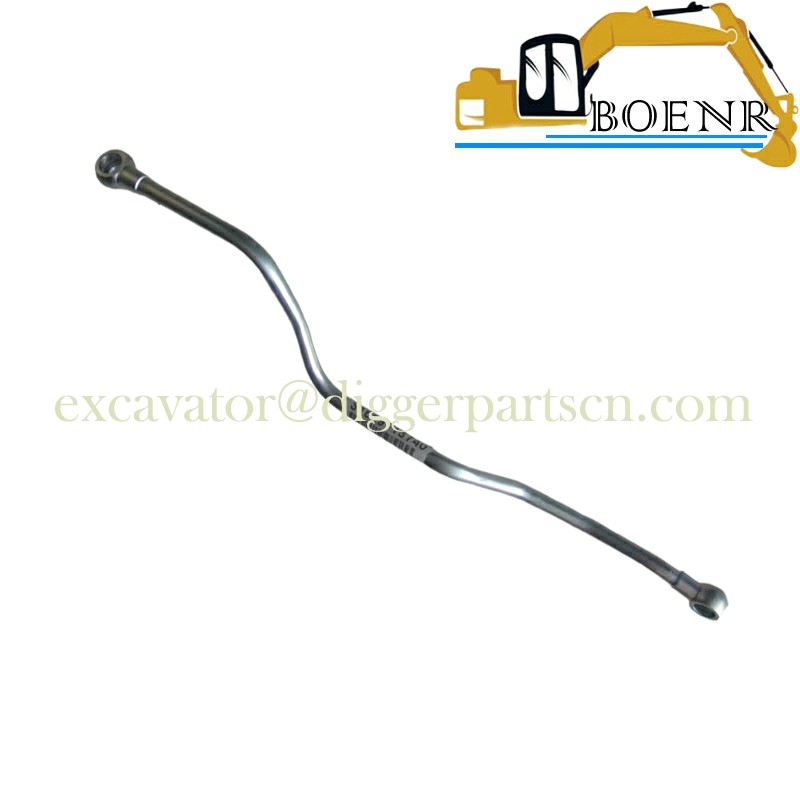

vhS166913740 S1669-13740 VH166913740A 16027-E0050 J05E Turbocharger pipe For SK200-8 SK210-8 SK250-8
SK200-8 SK210-8 SK250-8 SK260-8 SK215SR SK235SR J05E Turbocharger pipe vhS166913740 S1669-13740 VH166913740A 16027-E0050
| Part Name | Pipe | Part Number | vhS166913740 S1669-13740 VH166913740A 16027-E0050 |
| Brand | Kobelco Kobeki Hino | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK215SR SK235SR |
Weight: 0.5 kg

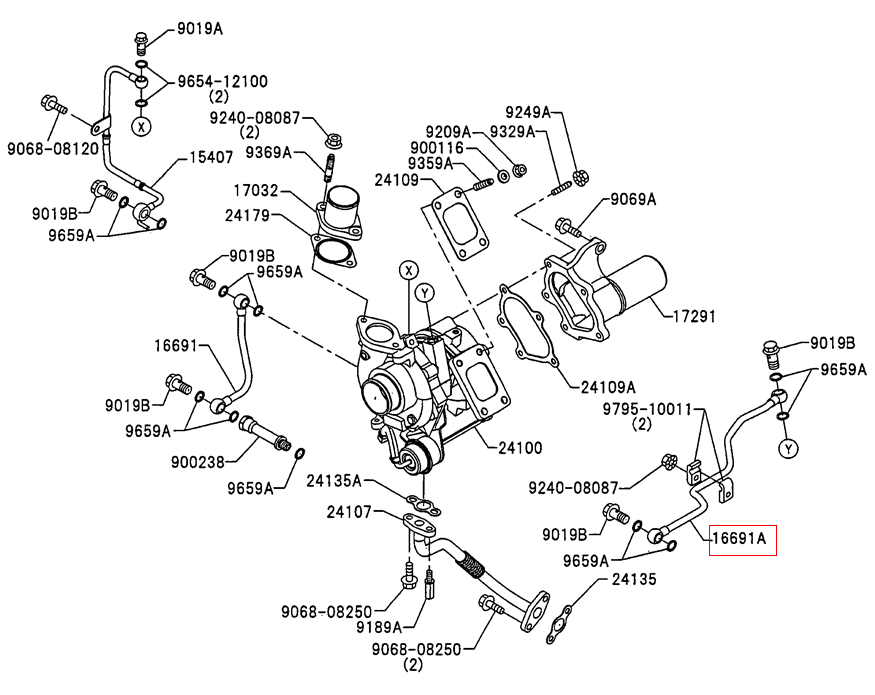

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 9795-10011 | 2 | VH979510011A | CLIP |
| 9659A | 11 | VH965914104A | WASHER Soft |
| 9654-12100 | 2 | VH965412100A | WASHER Soft |
| 9369A | 2 | VH936908111A | STUD |
| 9359A | 2 | VH935910133A | STUD |
| 9329A | 5 | VH932908122A | STUD |
| 9249A | 5 | VH924908105A | NUT Flange |
| 9240-08087 | 3 | VH924008087A | NUT |
| 9209A | 4 | VH920910202A | NUT |
| 9189A | 1 | VH918908151A | BOLT |
| 9069A | 1 | VH906910175A | BOLT Flange |
| 9068-08250 | 3 | VH906808250A | BOLT Flange |
| 9068-08120 | 1 | VH906808120A | BOLT Flange |
| 9019B | 5 | VH901914184A | BOLT |
| 9019A | 1 | VH901912518A | BOLT |
| 900238 | 1 | VH900238142A | ELEC CONNECTOR Pipe |
| 900116 | 4 | VH900116450A | SPACER (T=3.0) |
| 24179 | 1 | VH241791430A | GASKET |
| 24135A | 1 | VH241351181A | GASKET Oil, Outlet |
| 24135 | 1 | VH241351161A | GASKET Oil, Outlet |
| 24109A | 1 | VH241091870A | GASKET Sub Assy |
| 24109 | 1 | VH241091860A | GASKET Sub Assy |
| 24107 | 1 | VH241072140A | PIPE Sub Assy, Oil Outlet |
| 24100 | 1 | VH241004631A | TURBOCHARGER Assy |
| 17291 | 1 | VH17291E0100 | ELBOW Turbine Outlet |
| 17032 | 1 | VH170321290A | PIPE Sub Assy, Intake |
| 16691A | 1 | VH166913740A | PIPE Coolant |
| 16691 | 1 | VH166913730A | PIPE Coolant |
| 15407 | 1 | VH15407E0110 | PIPE Sub Assy, Turbo Oil Inlet |
