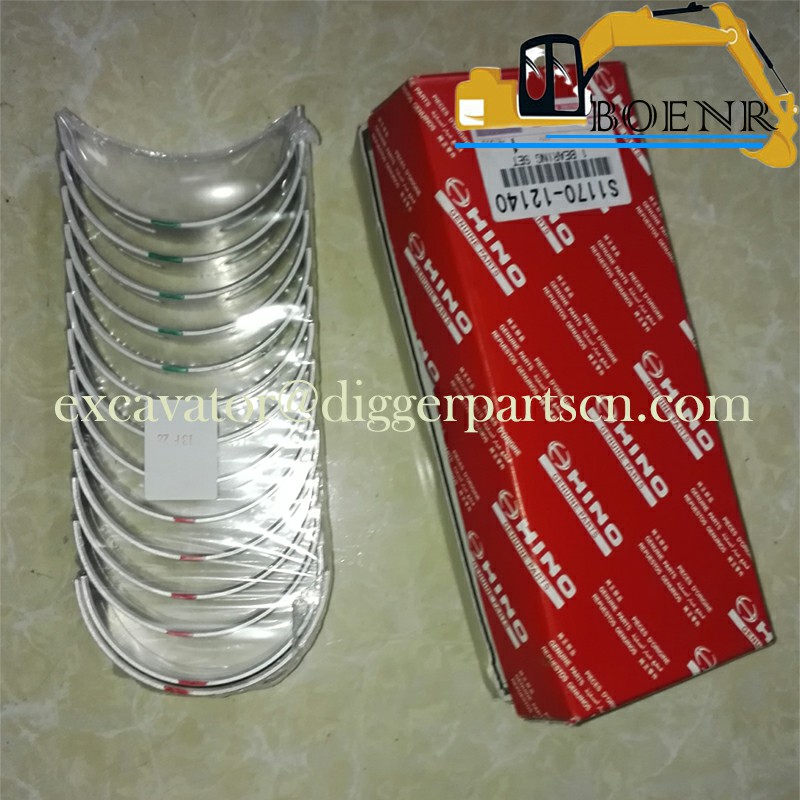

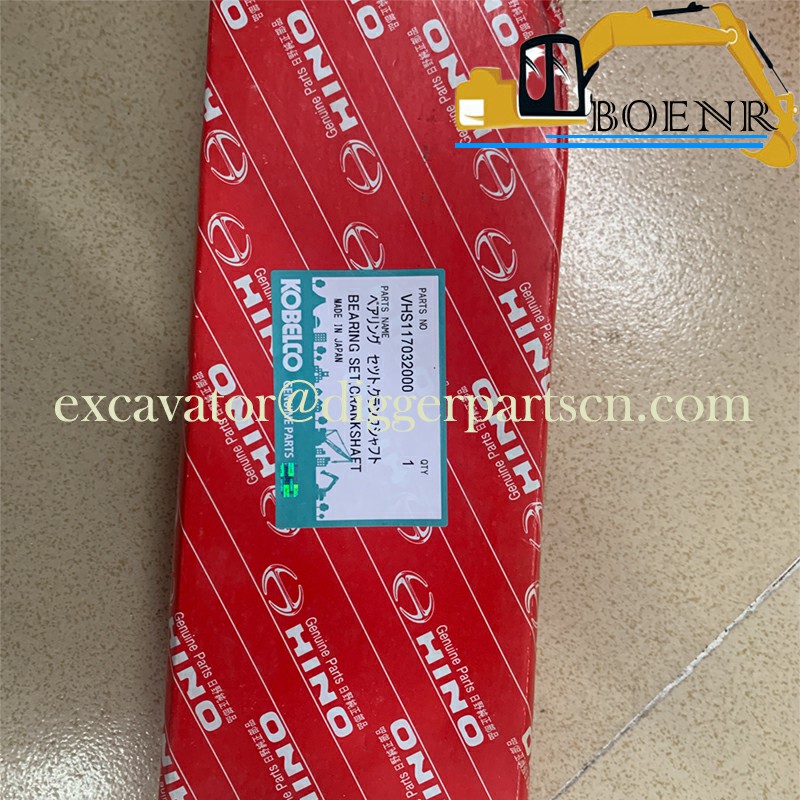

VHS117032000 VH117032000A S1170-12140 J08E Engine Crankshaft Bearing For SK350-8 SK330-8 SK380-8
SK350-8 SK330-8 SK380-8 J08E Engine Crankshaft Bearing VHS117032000 VH117032000A S1170-12140
| Part Name | Crankshaft Bearing | Part Number | VHS117032000 VH117032000A S1170-12140 |
| Brand | Kobelco、Kobeki、Hino | Applicable Model | SK350-8 SK330-8 SK380-8 |
Weight:1KG

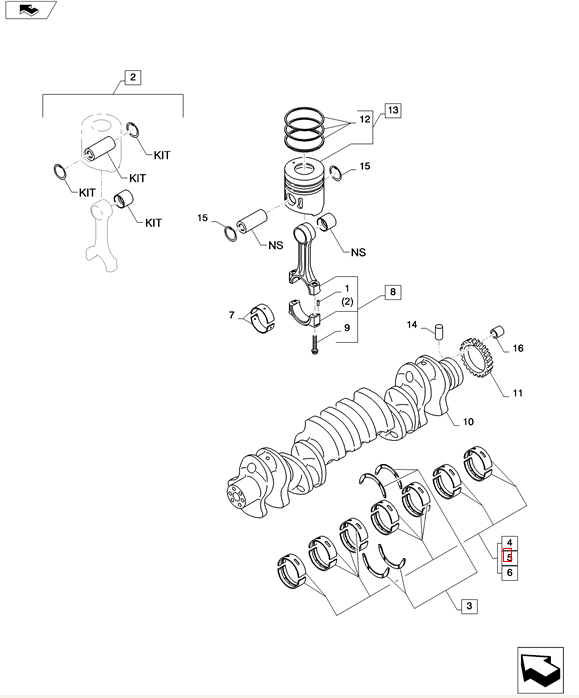

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 16 | 1 | VHSZ91029013 | COLLAR |
| 15 | 12 | VHSZ52037001 | RING Retainer Or Spring, Retainer |
| 14 | 1 | VHSZ25006006 | PIN |
| 13 | 6 | VHS130BE0130 | PISTON & RINGS KIT Includes Ref. 12 |
| 12 | 1 | VHS1304E0030 | PISTON RING SET |
| 11 | 1 | VHS135211442 | GEAR Crankshaft |
| 10 | 1 | VH13411E0100 | CRANKSHAFT |
| 9 | 2 | VHS132651620 | BOLT Conrod. |
| 8 | 6 | VH13260E0100 | CONNECTING ROD Assy., Includes Ref. 1, 9 |
| 7 | 1 | VH13041E0490 | BEARING HALF Connecting Rod, O/S 1.00 |
| 7 | 1 | VH13041E0480 | BEARING HALF Connecting Rod , O/S 0.75 |
| 7 | 1 | VH13041E0470 | BEARING HALF Connecting Rod, O/S 0.50 |
| 7 | 1 | VH13041E0460 | BEARING HALF Connecting Rod, O/S 0.25 |
| 7 | 1 | VH13041E0450 | CRANKSHAFT HALF-BEARING Set, Connecting Rod, Std |
| 6 | 1 | VHS117042030 | BEARING SET Crankshaft, U/S 0.50 , Taiho |
| 6 | 1 | VHS117042000 | CRANKSHAFT HALF-BEARING U/S 0.50, Daido |
| 5 | 1 | VHS117032000 | BEARING SET Crankshaft, U/S 0.25, Taiho |
| 5 | 1 | VHS117031970 | CRANKSHAFT HALF-BEARING U/S 0.25 , Daido |
| 4 | 1 | VHS117012140 | BEARING SET Crankshaft, Taiho |
| 3 | 1 | VHS110111380 | SET OF THRUST WASHERS (STD) Washer Set, Crankshaft Thrust, Std., Taiho |
| 2 | 6 | VH04133E0011 | PISTON PIN |
| 1 | 2 | VHSM21200408 | PIN |
