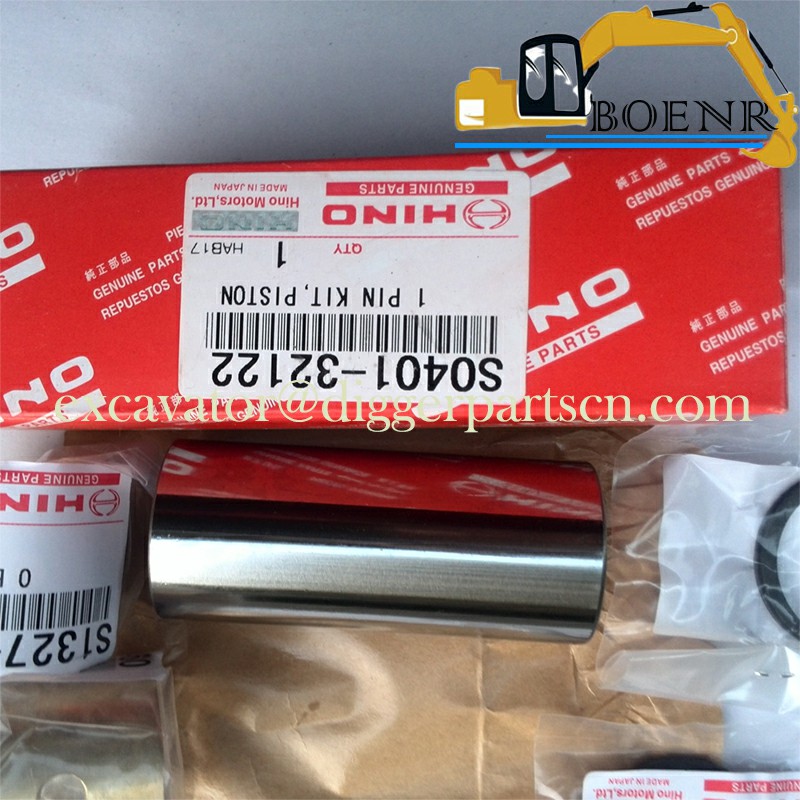

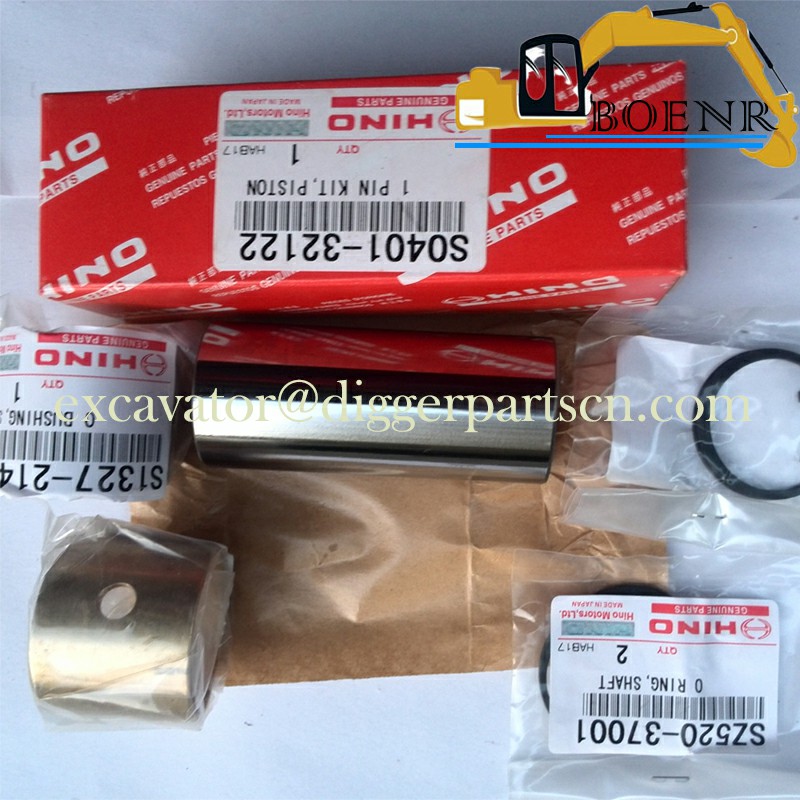

VHS040132124A VHS040132124A J05E J08E Engine Piston Pin Kits For SK200-8 SK210-8 SK250-8 SK260-8
SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK380-8 J05E J08E Engine Piston Pin Kits VHS040132124A VHS040132124A
| Part Name | Piston Pin Kits | Part Number | VHS040132124A VHS040132124A |
| Brand | Kobelco、Kobeki、Hino | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK380-8 |
Weight:0.7KG

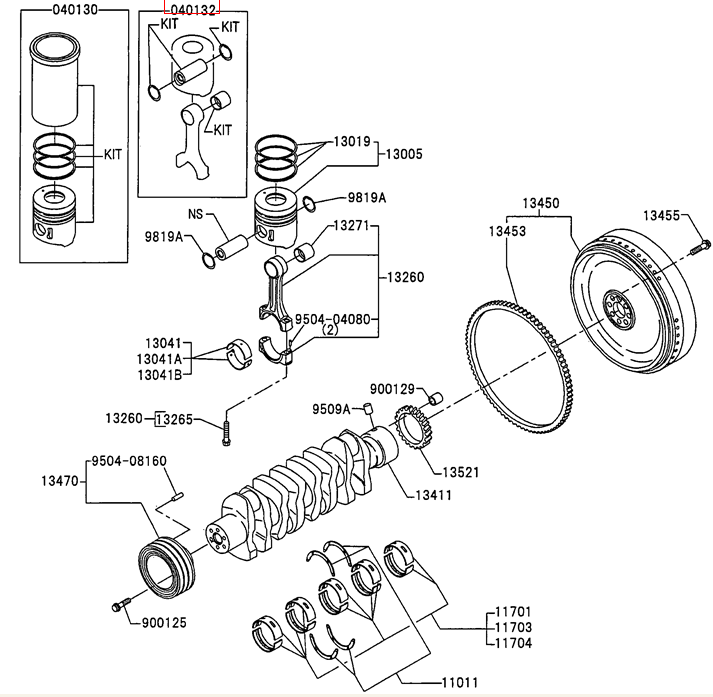

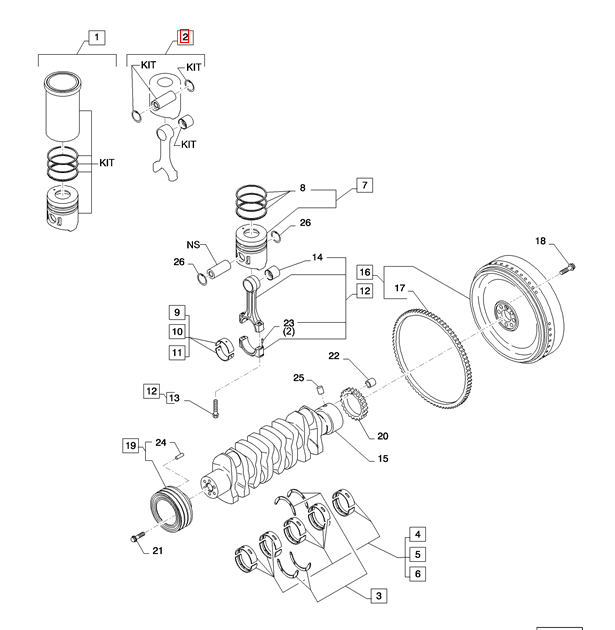

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 26 | 8 | VH981937102A | RING Retainer , T=1.2 |
| 25 | 1 | VH950906124A | PIN |
| 24 | 1 | VH950408160A | PIN Straight |
| 23 | 8 | VH950404080A | PIN Straight |
| 22 | 1 | VH900129119A | COLLAR |
| 21 | 6 | VH900125116A | BOLT |
| 20 | 1 | VH135211442A | GEAR Crankshaft |
| 19 | 1 | VH13470E0260A | Crankshaft, Includes Ref. 24 |
| 18 | 8 | VH134551550A | BOLT Flywheel |
| 17 | 1 | VH134531310A | GEAR Flywheel Ring , Teeth=129 |
| 16 | 1 | VH13450E0120 | FLYWHEEL Assy., Includes Ref. 17 |
| 15 | 1 | VH134112281A | CRANKSHAFT |
| 14 | 4 | VH132711600A | BUSHING Conrod, Std. |
| 13 | 8 | VH132651620A | BOLT Conrod |
| 12 | 4 | VH132601790A | ROD Assy., Connecting, Includes Ref. 13-14, 23 |
| 11 | 1 | VH13041E0260 | BEARING SET Conrod, U/S 0.50 |
| 10 | 1 | VH13041E0250 | BEARING SET Conrod, U/S 0.25 |
| 9 | 1 | VH13041E0240 | BEARING SET Conrod, Std. |
| 8 | 4 | VH130192080A | PISTON RING SET Sub |
| 7 | 4 | VH130053220A | PISTON Ring Set and Piston, Includes Ref. 8 |
| 6 | 1 | VH117042040A | BEARING SET Crankshaft, U/S 0.50 , Taiho |
| 5 | 1 | VH117032010A | BEARING SET Crankshaft, U/S 0.25, Taiho |
| 4 | 1 | VH117012310A | BEARING SET Crankshaft, Taiho |
| 3 | 1 | VH110111380A | WASHER Set, Crankshaft Thrust, Std. , Taiho |
| 2 | 1 | VHS040132124A | PIN Kit, Piston |
| 1 | 1 | VHS040130270A | PISTON Ring and Liner Kit , C |
| 1 | 1 | VHS040130269A | PISTON Ring and Liner Kit , B |
| 1 | 1 | VHS040130268A | PISTON Ring and Liner Kit , A |
