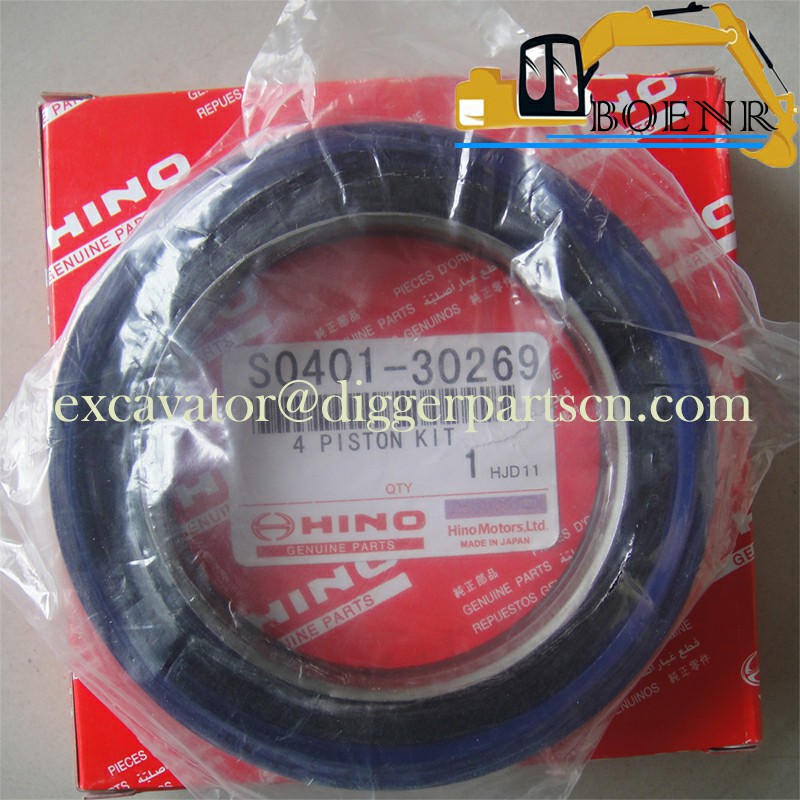

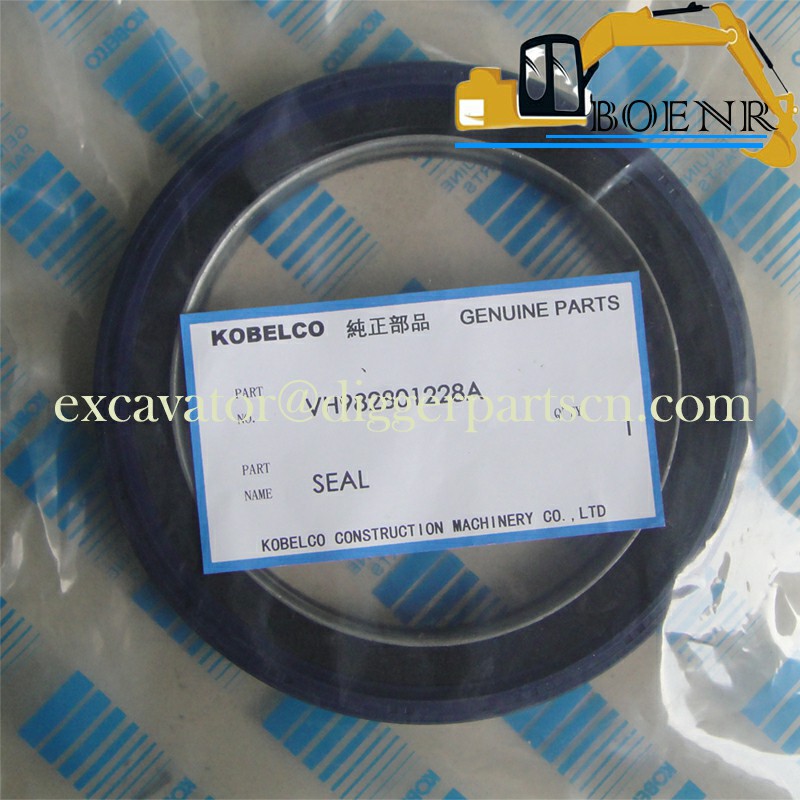

VHSZ31101045 VH982801228A S0401-30269 J05E J08E Engine Crankshaft rear oil seal SK200-8 SK210-8
SK200-8 SK210-8 SK250-8 SK260-8 SK350-8 SK330-8 SK380-8 J05E J08E Engine Crankshaft rear oil seal VHSZ31101045 VH982801228A S0401-30269
| Part Name | seal | Part Number | VHSZ31101045 VH982801228A S0401-30269 |
| Brand | Kobelco, Kobeki、Hino | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK350-8 SK330-8 SK380-8 |
Weight: 0.2 kg

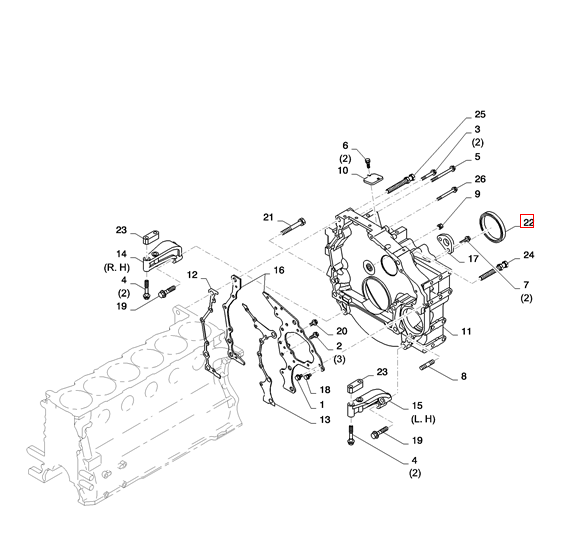

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 26 | 1 | VHSZ91024434 | BOLT |
| 25 | 1 | VHSZ91024293 | BOLT |
| 24 | 1 | VHSZ91024292 | BOLT |
| 23 | 2 | VHSZ91016216 | SPACER |
| 22 | 1 | VHSZ31101045 | OIL SEAL |
| 21 | 4 | VHSZ11916013 | BOLT |
| 20 | 2 | VHSZ11010007 | BOLT |
| 19 | 4 | VHSZ10514021 | FLANGE BOLT |
| 18 | 2 | VHSZ10508055 | FLANGE BOLT |
| 17 | 1 | VHS122811901 | HANGER Eng. |
| 16 | 1 | VHS113901050 | END PLATE Set |
| 15 | 1 | VHS113591012 | STAY F/H, LH. |
| 14 | 1 | VH11353E0130 | STAY Flywheel Housing Side |
| 13 | 1 | VHS113571062 | GASKET RR. End Plate |
| 12 | 1 | VHS113571022 | GASKET RR. End Plate |
| 11 | 1 | VH11351E0253 | HOUSING Flywheel |
| 10 | 1 | VHS113061480 | COVER ASSY Sub, F/H Dust |
| 9 | 1 | VHSL15041010 | NUT |
| 8 | 1 | VHSJ18201435 | STUD |
| 7 | 2 | VHSH78241235 | BOLT W/Washer |
| 6 | 2 | VHSH68100816 | BOLT |
| 5 | 1 | VHSH55216085 | FLANGE BOLT |
| 4 | 4 | VHSH55211290 | FLANGE BOLT |
| 3 | 2 | VHSH55211075 | FLANGE BOLT |
| 2 | 3 | VHSH55211020 | FLANGE BOLT |
| 1 | 1 | VHSH55210820 | FLANGE BOLT |
