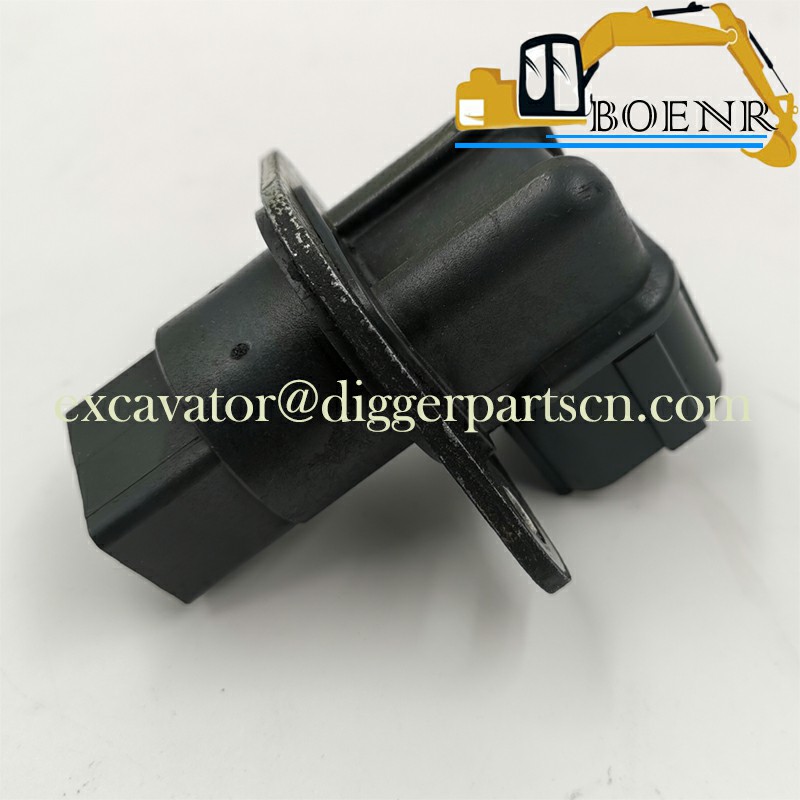

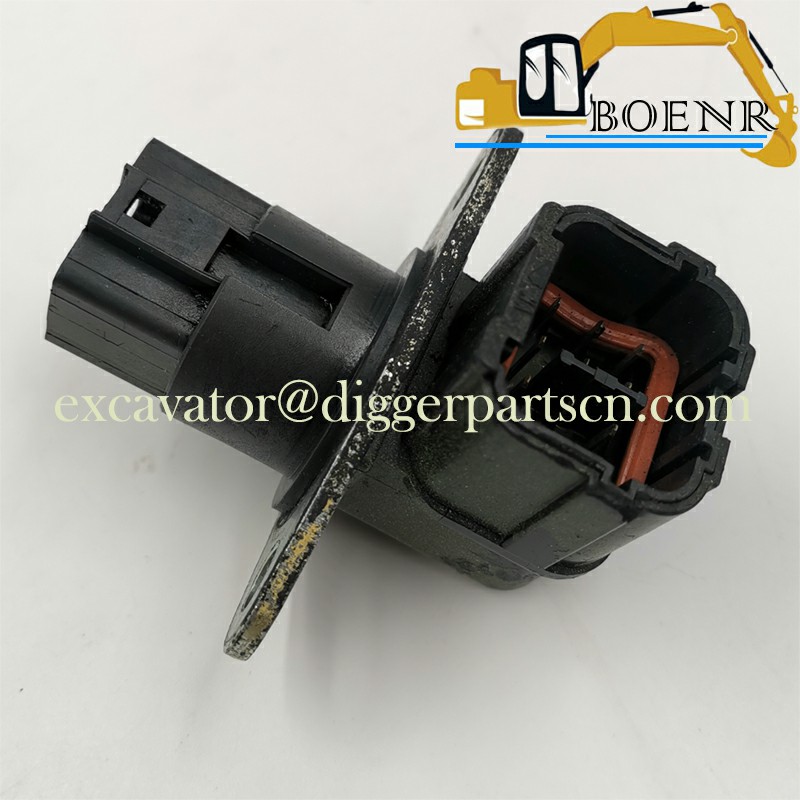

VHS825601200 VH825601200A S8256-01200 J05E Connector For SK200-8 SK210-8 SK250-8 Sk260-8
SK200-8 SK210-8 SK250-8 Sk260-8 J05E Connector VHS825601200 VH825601200A S8256-01200
| Part Name | Connector | Part Number | VHS825601200 VH825601200A S8256-01200 |
| Brand | Kobelco, kobeki | Applicable Model | SK200-8 SK210-8 SK250-8 Sk260-8 |
Weight: 0.2 kg

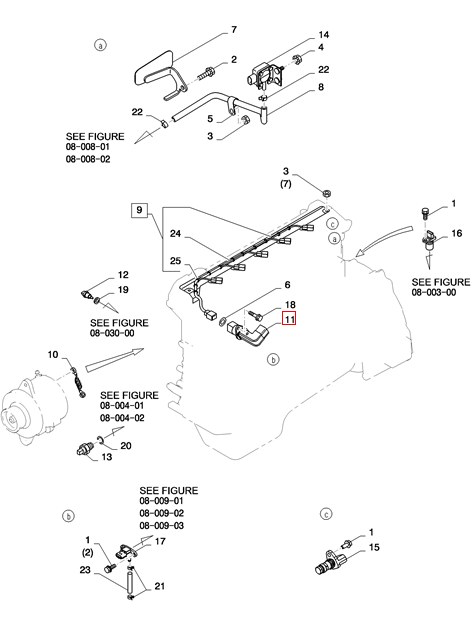

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 25 | 3 | VHSZ98007001 | CABLE TIE |
| 24 | 11 | VHSZ98007002 | CABLE TIE |
| 23 | 1 | VHSZ92033894 | INTAKE AIR HOSE |
| 22 | 2 | VHSZ46613006 | CLIP |
| 21 | 2 | VHSZ46612005 | CLIP |
| 20 | 1 | VHSZ43014002 | WASHER Soft |
| 19 | 1 | VHSZ43010005 | WASHER Soft |
| 18 | 2 | VHSZ10508055 | FLANGE BOLT |
| 17 | 1 | VH89421E0050 | PRESSURE SWITCH Air |
| 16 | 1 | VHS894111280 | SENSOR Assy., Speed |
| 15 | 1 | VHS894101590 | SENSOR Assy., Speed |
| 14 | 1 | VHS893901090 | PRESSURE SWITCH Turbo back pressure, |
| 13 | 1 | VH83530E0220 | PRESSURE SWITCH Assy., Oil |
| 12 | 1 | VHS834201250 | SENSOR Assy., Water Temp Sender |
| 11 | 1 | VHS825601200 | ELEC CONNECTOR Assy. |
| 10 | 1 | VH82121E0D60 | WIRE Engine |
| 9 | 1 | VH82051E0050 | WIRE HARNESS Fuel Control, Includes Ref. 24-25 |
| 8 | 1 | VH44778E0010 | AIR HOSE Pressure Gauge, No.1 |
| 7 | 1 | VH17041E0430 | FOAM INSULATION Exhaust Pipe, No.1 |
| 6 | 1 | VHSN74100313 | O-RING |
| 5 | 1 | VHSN23101401 | CLIP |
| 4 | 1 | VHSL15100809 | FLANGE NUT |
| 3 | 8 | VHSL15010808 | NUT |
| 2 | 5 | VHSH55211020 | FLANGE BOLT |
| 1 | 4 | VHSH51110614 | BOLT |
