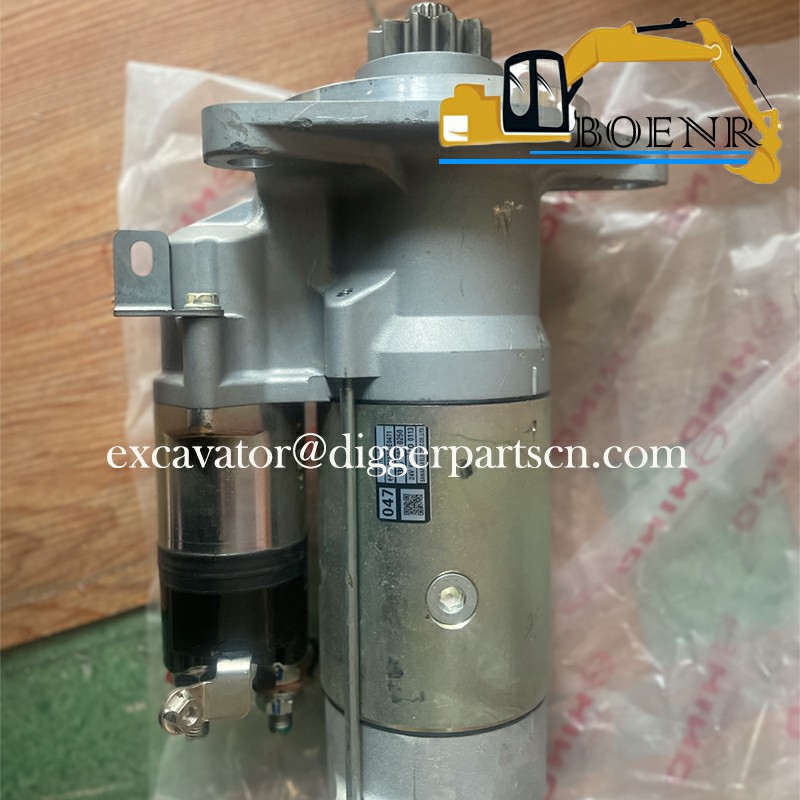

VH28100E0511 VH28100E0510 VH28100E0010 28100-E0471 P11C engine starter For sk485-8 SK460-8 SK430-8
sk485-8 SK460-8 SK430-8 SK500-8 SK480-8 P11C engine starter VH28100E0511 VH28100E0510 VH28100E0010 28100-E0471
| Part Name | starter | Part Number | VH28100E0511 VH28100E0510 VH28100E0010 28100-E0471 |
| Brand | Kobelco、Hino、KOBEKI | Applicable Model | sk485-8 SK460-8 SK430-8 SK500-8 |
Weight: 5.6KG

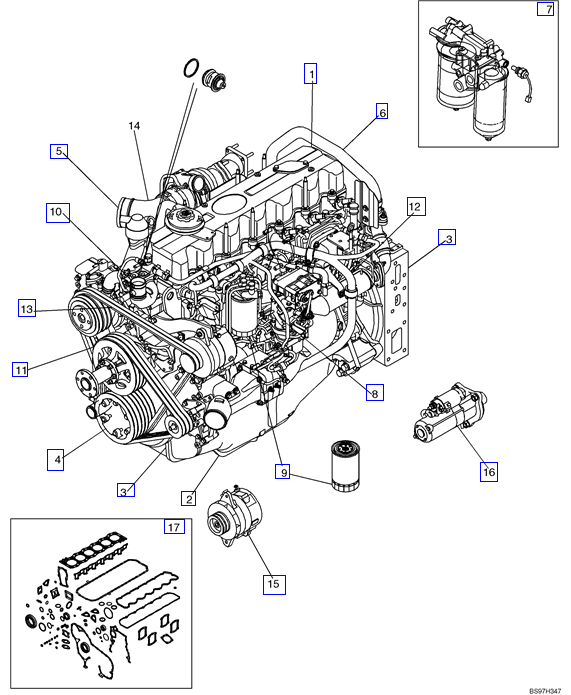

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 17 | 1 | VHS040104264A | KIT Gasket Kit (Engine Overhaul), See Figure 09-29 |
| 1 | Engine Accessory Parts, See Figure 09-28, Not Shown | ||
| 16 | 1 | VH28100E0010 | STARTER MOTOR Starter Motor Assembly, See Figure 09-27 |
| 15 | 1 | VH27060E0190 | ALTERNATOR Alternator W/Regulator Assembly, See Figure 09-26 |
| 14 | 1 | Turbocharger, See Figure 09-25 | |
| 13 | Engine Electrical Parts, See Figure 09-24 | ||
| 12 | 1 | Engine Electrical Parts, See Figure 09-23 | |
| 11 | Cooling System, See Figure 09-22 | ||
| 10 | 1 | Cooling System, See Figure 09-21 | |
| 1 | VH225701790A | FUEL PUMP Fuel Priming Pump & Fuel Feed Pump, See Figure 09-20, Not Shown | |
| 1 | VH233002700B | FILTER ASSY Fuel Filter Assembly, See Figure 09-19, Not Shown | |
| 9 | 1 | Fuel System, See Figure 09-17 & 09-18 | |
| 1 | VH151102124A | PUMP Oil Pump Assembly, See Figure 09-16, Not Shown | |
| 8 | 1 | VH15710E0040 | OIL COOLER Oil Cooler, See Figure 09-15 |
| 1 | VH15600E0070 | ENGINE OIL FILTER Oil Filter Assembly, See Figure 09-14, Not Shown | |
| 7 | 1 | Lubrication, See Figure 09-13 | |
| 6 | 1 | Intake & Exhaust System, See Figure 09-11 & 09-12 | |
| 5 | 1 | Intake & Exhaust System, See Figure 09-09 & 09-10 | |
| 1 | Valve System, See Figure 09-08, Not Shown | ||
| 1 | Camshaft and Idler Gear, See Figure 09-07, Not Shown | ||
| 4 | 1 | Main Moving Parts, See Figure 09-06 | |
| 3 | 1 | Timing Gear Cover & Flywheel Housing, See Figure 09-05 | |
| 2 | 1 | Engine Cylinder Block, See Figure 09-03 & 09-04 | |
| 1 | 1 | Engine Cylinder Head, See Figure 09-01 & 09-02 | |
| 1 | LS02P00031F1 | ENGINE ASSY |
