28100-E0612 VH28100E0080 J05E J08E Engine starter For SK200-10 SK210-10 SK250-10 SK260-10 SK270-10
SK200-10 SK210-10 SK250-10 SK260-10 SK270-10 SK350-10 SK380-10 SK330-10 J05E J08E Engine starter 28100-E0612 VH28100E0080
| Part Name | starter | Part Number | 28100-E0612 VH28100E0080 |
| Brand | Kobeki、Kobelco、Hino | Applicable Model | SK200-10 SK210-10 SK250-10 SK260-10 SK270-10 SK350-10 SK380-10 SK330-10 |
Weight:8KG

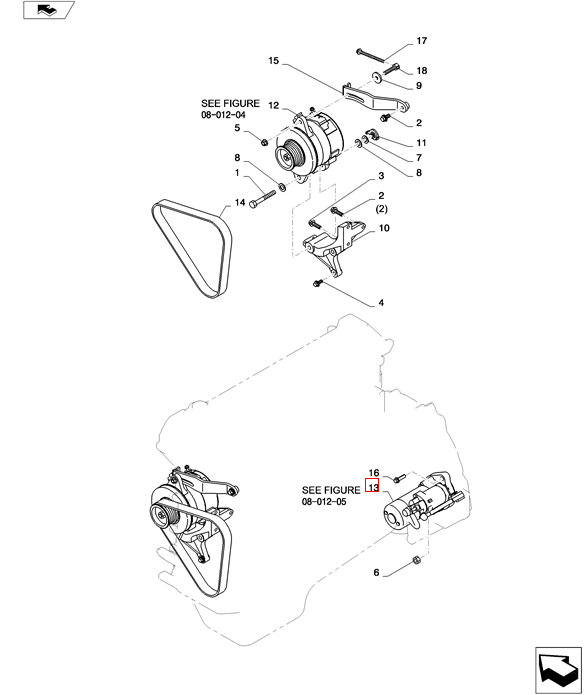

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 18 | 1 | VHSZ91024047 | BOLT |
| 17 | 1 | VHSZ11908033 | BOLT |
| 16 | 1 | VHSZ10514031 | FLANGE BOLT |
| 15 | 1 | VHS1205E0370 | BRACKET Alternator |
| 14 | 1 | VH88594E0080 | BELT Alternator |
| 13 | 1 | VH28100E0080 | STARTER MOTOR Assy., 24V-5Kw, See Figure 08-012-05 |
| 12 | 1 | VH27060E0040 | ALTERNATOR W/Regulator, 24V-60A, See Figure 08-012-04 |
| 11 | 1 | VHS125114170 | BRACKET Gen. |
| 10 | 1 | VH12511E0780 | BRACKET Alternator |
| 9 | 1 | VHSL62101036 | WASHER Plain |
| 8 | 2 | VHSL61101427 | WASHER Plain |
| 7 | 1 | VHSL51101435 | WASHER, LOCK |
| 6 | 1 | VHSL15041414 | NUT |
| 5 | 1 | VHSL15041010 | NUT |
| 4 | 1 | VHSH55211235 | FLANGE BOLT |
| 3 | 1 | VHSH55211065 | FLANGE BOLT |
| 2 | 4 | VHSH55211035 | FLANGE BOLT |
| 1 | 1 | VHSH12206440 | BOLT |
