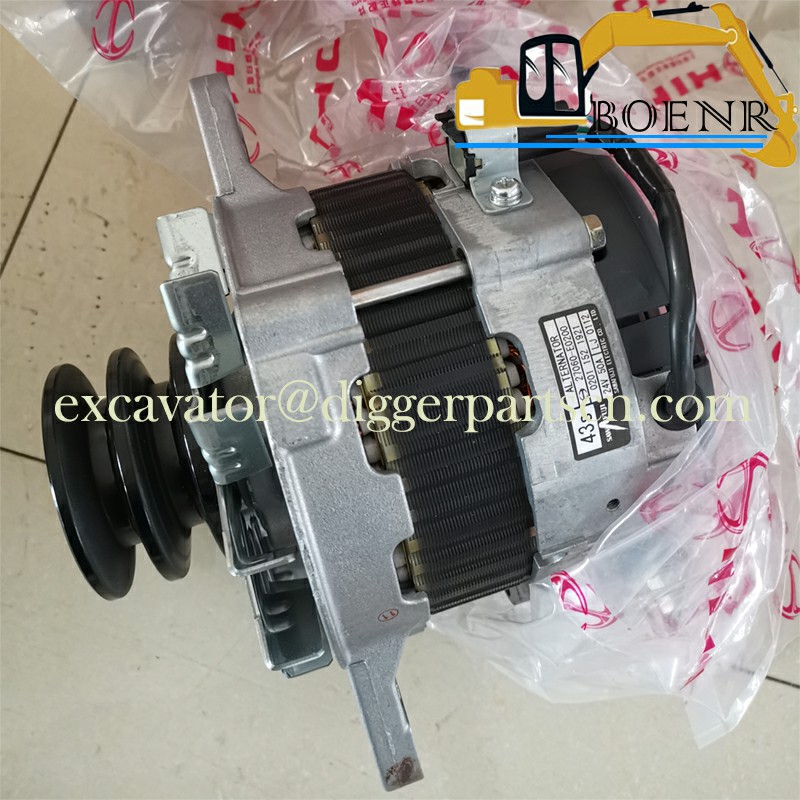

VH27060E0200 27060-E0200 VH270402192A VHS270402192 J05E Engine Alternator For SK200-8 SK210-8
SK200-8 SK210-8 SK250-8 SK260-8 SK215SR SK235SR J05E Engine Alternator VH27060E0200 27060-E0200 VH270402192A VHS270402192
| Part Name | Alternator | Part Number | VH27060E0200 27060-E0200 VH270402192A VHS270402192 |
| Brand | Kobeki、Hino、Kobelco | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK215SR SK235SR |
Weight:0.6KG

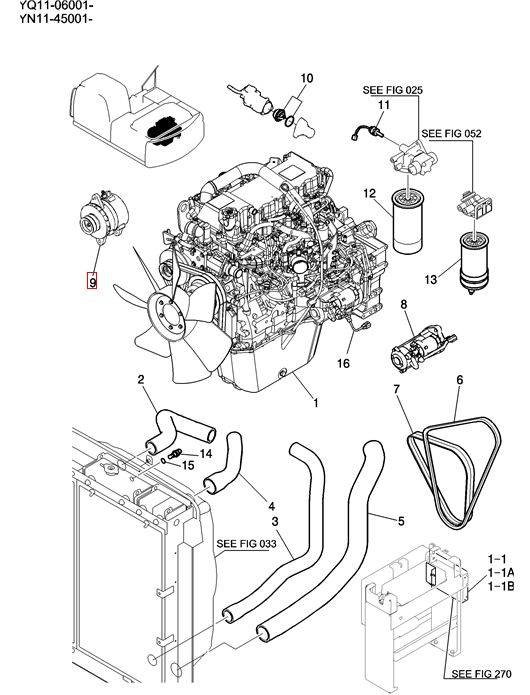

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 16 | 1 | VH894101290A | SENSOR Assy |
| 15 | 1 | VH985119116A | O-RING |
| 14 | 1 | VH834601510A | SWITCH Assy, Level Warning |
| 13 | 1 | YN30T01002P1 | ELEMENT Filter Fuel E/G Hino pn VH23390E0010 |
| 12 | 1 | YN30T01001P1 | ELEMENT Filter Oil E/G Hino pn VH156072190A |
| 11 | 1 | VH156601090A | PLUG Assy, Oil |
| 10 | 1 | VH040166104A | THERMOSTAT Kit |
| 9 | 1 | VH270402192A | ALTERNATOR Assy |
| 8 | 1 | VH281002894A | STARTER MOTOR Assy |
| 7 | 1 | VH900149375A | BELT V-belt (2 Pieces Set) (2) |
| 1-1B | 1 | YN22E00263S002 | Software Not serviced |
| 1-1A | 1 | YN22E00263S001 | CONTROLLER Unprogrammed - Hino pn VH89661E0010 |
| 6 | 1 | YN20M01494D1 | BELT V (conditioner, Air) (COG B66) |
| 5 | 1 | YN05P01495P1 | HOSE |
| 4 | 1 | YN05P01439P1 | HOSE |
| 3 | 1 | YN05P01494P1 | RADIATOR HOSE |
| 2 | 1 | YN05P01479P1 | HOSE Radiator |
| 1 | YN02P00042F1 | ENGINE Assy , BTW YQ11-06077 & YN11-46018 | |
| 1-1 | 1 | YN22E00263F1 | CONTROLLER Assy |
| 1 | 1 | YN02P00028F1 | ENGINE Assy , BTW YN11-45001 & YN11-46017 |
| 1 | 1 | YN02P00028F1 | ENGINE Assy , BTW YQ11-06001 & YQ11-06076 |
| AR | YN02P00031F1 | Instal (See Fig No.025-01-1,2) | |
| AR | YN02P00034F1 | Instal |
