VH17201E0520 VH241004631A 24100-4631A 17201-E0522 17201-E0520 J05E Engine Turbocharger for SK200-8
SK200-8 SK200-10 SK250-8 J05E Engine Turbocharger VH17201E0520 VH241004631A 24100-4631A 17201-E0522 17201-E0520
| Part Name | Turbocharger | Part Number | VH17201E0520 VH241004631A 24100-4631A 17201-E0522 17201-E0520 |
| Brand | Kobelco、Garrett、KOBEKI | Applicable Model | SK200-8 SK210-8 |
Weight: 9.5KG

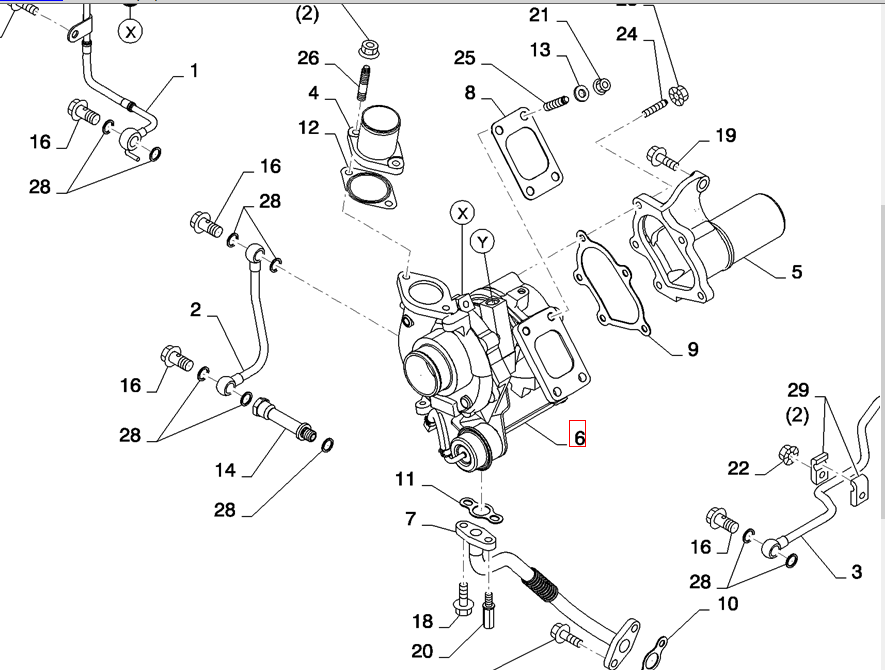

Image: Component assembly diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 29 | 2 | VH979510011A | CLIP |
| 28 | 11 | VH965914104A | WASHER Soft |
| 27 | 2 | VH965412100A | WASHER Soft |
| 26 | 2 | VH936908111A | STUD |
| 25 | 2 | VH935910133A | STUD |
| 24 | 5 | VH932908122A | STUD |
| 23 | 5 | VH924908105A | NUT Flange |
| 22 | 3 | VH924008087A | NUT |
| 21 | 4 | VH920910202A | NUT |
| 20 | 1 | VH918908151A | BOLT |
| 19 | 1 | VH906910175A | BOLT Flange |
| 18 | 3 | VH906808250A | BOLT Flange |
| 17 | 1 | VH906808120A | BOLT Flange |
| 16 | 5 | VH901914184A | BOLT |
| 15 | 1 | VH901912108A | BOLT |
| 14 | 1 | VH900238142A | ELEC CONNECTOR Pipe |
| 13 | 4 | VH900116450A | SPACER , T=3.0 |
| 12 | 1 | VH241791430A | GASKET |
| 11 | 1 | VH241351181A | GASKET Oil, Outlet |
| 10 | 1 | VH241351161A | GASKET Oil, Outlet |
| 9 | 1 | VH241091870A | GASKET Sub Assy. |
| 8 | 1 | VH241091860A | GASKET Sub Assy. |
| 7 | 1 | VH241072140A | PIPE Sub Assy., Oil Outlet |
| 6 | 1 | VH17201E0520 | TURBOCHARGER Assy., Start Year: 03/01/2008 |
| 6 | 1 | VH241004631A | TURBOCHARGER Assy., Years: 12/01/2006-02/01/2008 |
| 5 | 1 | VH17291E0100 | ELBOW Turbine Outlet |
| 4 | 1 | VH170321290A | PIPE Sub Assy., Intake |
| 3 | 1 | VH166913740A | PIPE Coolant |
| 2 | 1 | VH166913730A | PIPE Coolant |
| 1 | AR | VH15407E0110 | PIPE Sub Assy., Oil Inlet |
