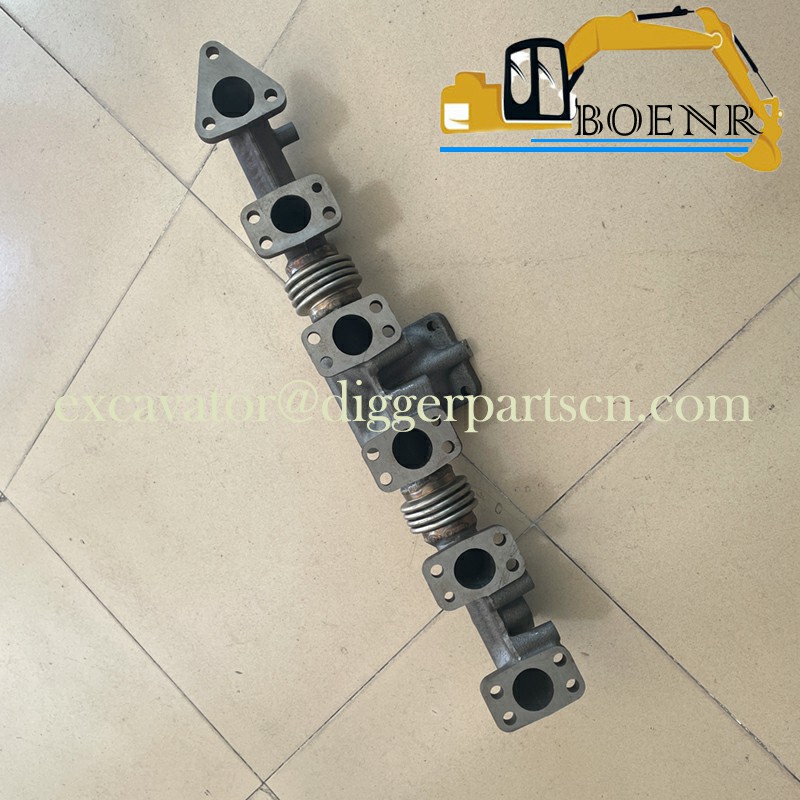

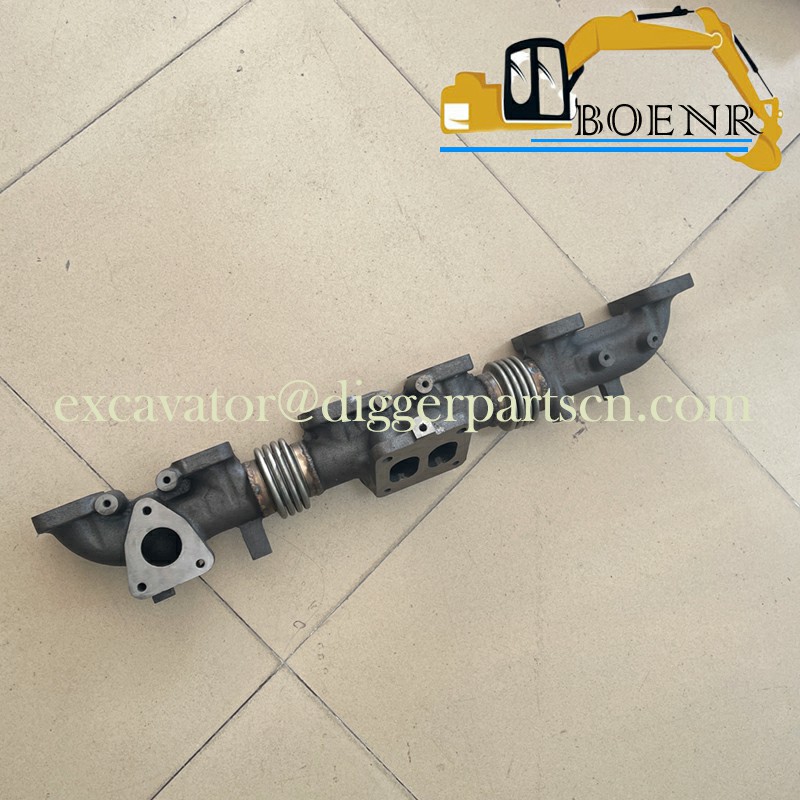

VH17104E0210 P11C Exhaust manifolds For SK430-8 SK450-8 SK485LC-9
SK430-8 SK450-8 SK485LC-9 P11C Exhaust manifolds VH17104E0210
| Part Name | Exhaust manifolds | Part Number | VH17104E0210 |
| Brand | Kobelco、Hino | Applicable Model | SK430-8 SK450-8 SK485LC-9 |
Weight:8KG

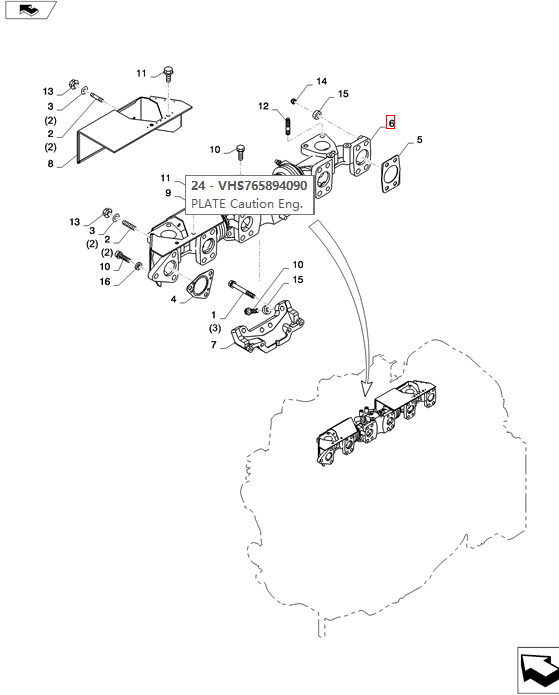

Image: Component assembly diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 16 | 3 | VHSZ91016009 | SPACER |
| 15 | 24 | VHSZ91016217 | SPACER |
| 14 | 20 | VHSZ17810007 | NUT |
| 13 | 4 | VHSZ17708005 | FLANGE NUT |
| 12 | 6 | VHSZ12610005 | STUD |
| 11 | 4 | VHSZ11908216 | BOLT W/Washer |
| 10 | 7 | VHSZ10510001 | BOLT |
| 9 | 1 | VH17167E0210 | INSULATOR Exhaust Manifold Heat |
| 8 | 1 | VH17167E0190 | INSULATOR Exhaust Manifold Heat |
| 7 | 1 | VH17118E0140 | STAY Exhaust Manifold |
| 6 | 1 | VH17104E0210 | EXHAUST MANIFOLD Exhaust |
| 5 | 5 | VHS171041860 | GASKET Exh. Mfld. |
| 4 | 1 | VHS171041850 | GASKET Exh. Mfld. |
| 3 | 4 | VHSL61100824 | WASHER Plain |
| 2 | 4 | VHSJ11200822 | STUD |
| 1 | 3 | VHSH79211070 | BOLT |
