VH161004280A 16100-E0373 J05E Water pump for SK200-8 SK250-8 SK210-8 SK260-8
SK200-8 SK250-8 SK210-8 SK260-8 J05E Engine Water pump VH161004280A
| Part Name | Water pump | Part Number | VH161004280A |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-8 SK250-8 SK210-8 SK260-8 |
Weight:8KG

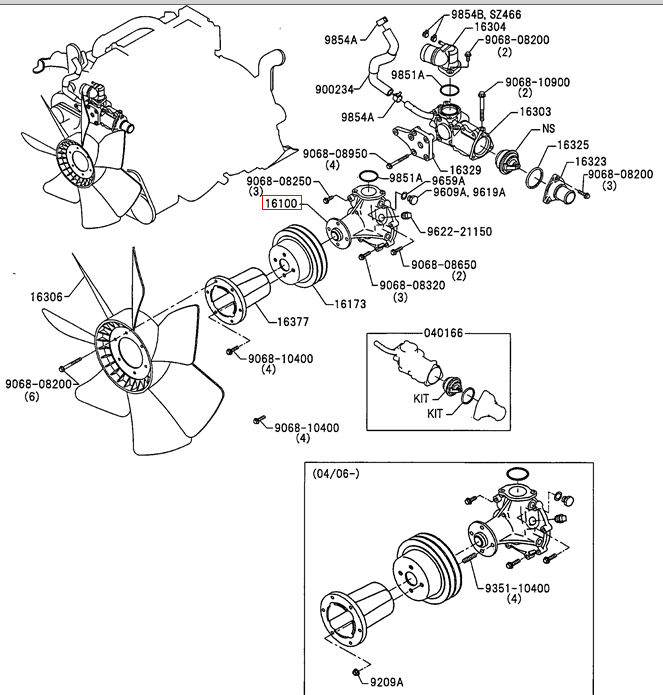

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| SZ466 | 2 | VHSZ46613007 | CLIP , Start Year: 06/01/2004 |
| 9854B | 2 | VH985413112A | CLIP , Years: 06/01/2002-06/01/2003 |
| 9854A | 2 | VH985424102A | CLIP |
| 9851A | 2 | VH985149109A | O-RING |
| 9659A | 1 | VH965916105A | WASHER Soft |
| 9619A | 1 | VH961916103A | PLUG , Start Year: 06/01/2004 |
| 9622-21150 | 1 | VH962221150A | PLUG |
| 9609A | 1 | VH960916101A | PLUG , Years: 06/01/2002-06/01/2003 |
| 9351-10400 | 4 | VH935110400A | STUD , Start Year: 06/01/2004 |
| 9209A | 4 | VH920910202A | NUT , Start Year: 06/01/2006 |
| 9068-10900 | 2 | VH906810900A | BOLT Flange |
| 9068-10400 | 4 | VH906810400A | BOLT Flange, Years: 06/01/2002-06/01/2003 |
| 9068-08950 | 4 | VH906808950A | BOLT Flange |
| 9068-08650 | 2 | VH906808650A | BOLT Flange |
| 9068-08320 | 3 | VH906808320A | BOLT Flange |
| - 9068-08250 | 3 | VH906808250A | BOLT Flange |
| 9068-08200 | 6 | VH906808200A | BOLT Flange |
| 9068-08200 | 5 | VH906808200A | BOLT Flange |
| 900234 | 1 | VH900234555A | HOSE Water |
| 16377 | 1 | VH163772740A | SPACER Fan Pulley |
| 16329 | 1 | VH163291440A | BRACKET |
| 16325 | 1 | VH163251390A | GASKET Thermostat |
| 16323 | 1 | VH163231911A | COVER Thermostat Case |
| 16306 | 1 | VH163063000A | FAN Sub Assy, Cooling |
| 16304 | 1 | VH16304E0070 | OUTLET Sub Assy, Water |
| 16303 | 1 | VH16303E0130 | HOUSING Sub-Assy, Water Outlet |
| 16173 | 1 | VH161733310A | PULLEY Coolant Pump |
| 16100 | 1 | VH161004280A | PUMP Pump Assy, Coolant |
| 40166 | 1 | VH040166104A | THERMOSTAT Kit |
