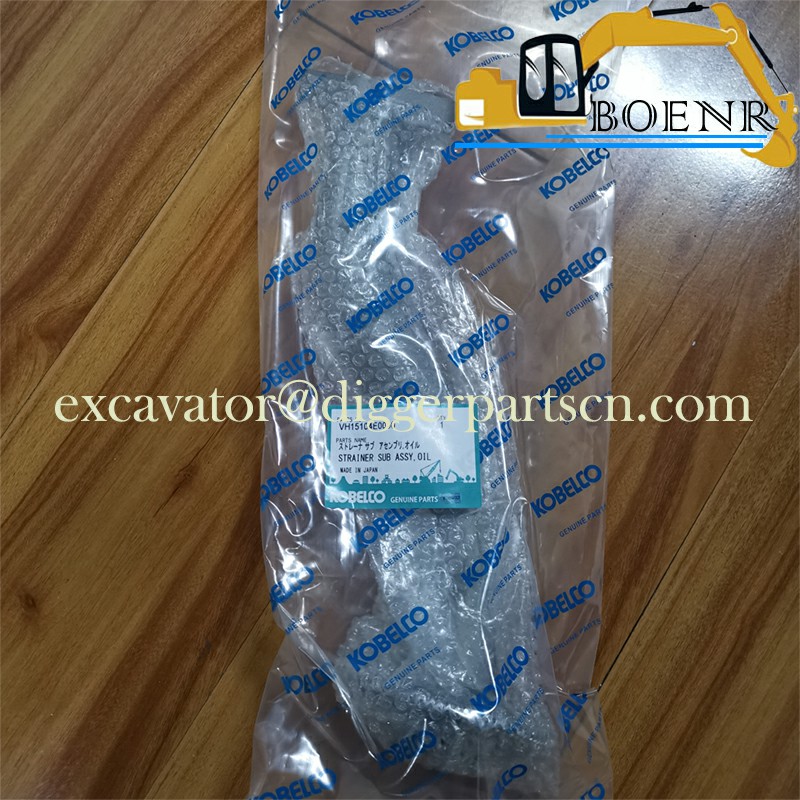

VH15104E0050 VH151041950A Strainer For SK215SR SK235SR SK200-8 SK250-8 SK210-8 SK260-8
SK215SR SK235SR SK200-8 SK250-8 SK210-8 SK260-8 Strainer VH15104E0050 VH151041950A
| Part Name | Strainer | Part Number | VH15104E0050 VH151041950A |
| Brand | Kobelco , Kobeki | Applicable Model | SK215SR SK235SR SK200-8 SK250-8 SK210-8 SK260-8 |
Weight: 0.5 kg

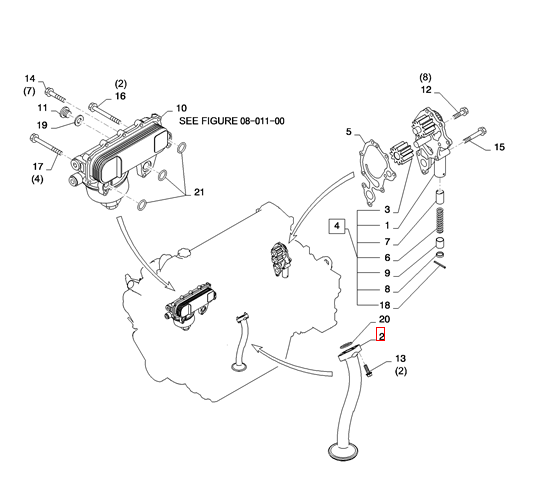

Image: Component assembly diagram
Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 9851B | 3 | VH985125106A | O-RING |
| 9851A | 1 | VH985129105A | O-RING |
| 9659A | 1 | VH965914103A | WASHER Soft |
| 9500-40400 | 1 | VH950040400A | PIN Cotter |
| 9068-58100 | 4 | VH906858100A | BOLT Flange |
| 9068-08750 | 2 | VH906808750A | BOLT Flange |
| 9068-08550 | 1 | VH906808550A | BOLT Flange |
| 9068-08320 | 7 | VH906808320A | BOLT Flange |
| 9068-08250 | 2 | VH906808250A | BOLT Flange |
| 9068-08160 | 8 | VH906808160A | BOLT Flange |
| 15716 | 1 | VH157161130A | PLUG Valve Spring |
| 15710 | 1 | VH15710E0030 | COOLER ASSY. Oil (See Fig No. 14-52) |
| 15139A | 1 | VH151391120A | SEAT Spring Oil Pump |
| 15139 | 1 | VH151391110A | SEAT Spring Oil Pump |
| 15135 | 1 | VH151351090A | VALVE Oil Pump Safety |
| 15132 | 1 | VH151321070A | SPRING Oil Pump Relief Valve |
| 15119 | 1 | VH151191134A | GASKET Oil Pump Cover |
| 15110 | 1 | VH151102160A | PUMP Assy, Oil L/Stnr |
| 15107 | 1 | VH151071550A | GEAR Sub Assy, Oil Pump |
| 15104 | 1 | VH151041950A | FILTER STRAINER Strainer. Sub Assy, Oil |
| 15012 | 1 | VH150121460A | COVER ASSY Oil Pump |
