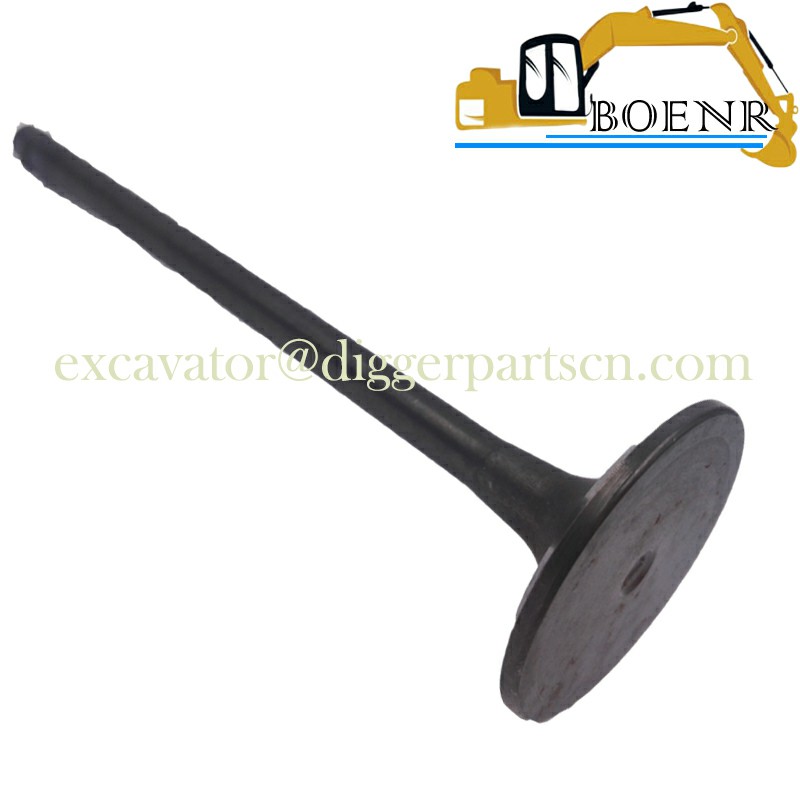

VH137111632A VHS137111632 J05E J08E Enigne intake Valve For SK200-8 SK210-8 SK250-8 SK260-8 SK330-8
SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 J05E J08E Enigne intake Valve VH137111632A VHS137111632
| Part Name | intake Valve | Part Number | VH137111632A VHS137111632 |
| Brand | Kobeki、Kobelco、Hino | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 |
Weight:0.5KG

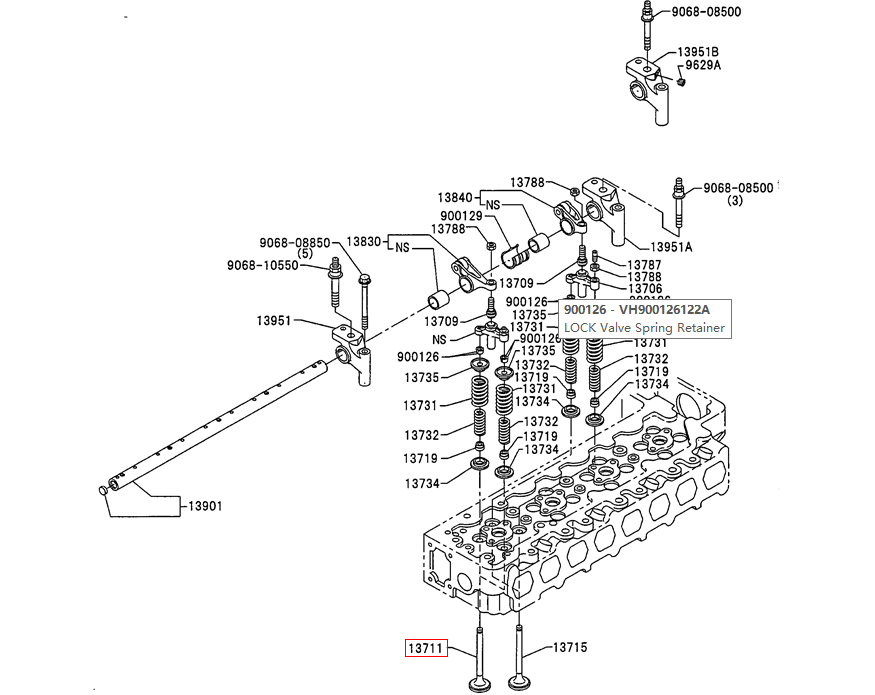

Part Location Diagram
| ITEM | QTY | PART NO | PART NANE |
| 9629A | 1 | VH962910117A | PLUG |
| 9068-10550 | 1 | VH906810550A | BOLT Flange |
| 9068-08850 | 5 | VH906808850A | BOLT Flange |
| 9068-08500 | 4 | VH906808500A | BOLT Flange |
| 900129 | 4 | VH900129267A | COLLAR |
| 900126 | 32 | VH900126122A | LOCK Valve Spring Retainer |
| 13951B | 1 | VH139512231A | SUPPORT Valve Rocker |
| 13951A | 3 | VH139512221A | SUPPORT Valve Rocker |
| 13951 | 1 | VH139512211A | SUPPORT Valve Rocker |
| 13901 | 1 | VH139011410A | SHAFT Valve Rocker |
| 13840 | 4 | VH138401430A | ARM Assy, Valve Rocker Exh |
| 13830 | 4 | VH138301560A | ARM Assy, Valve Rocker |
| 13788 | 16 | VH137881030A | NUT Valve Adj Screw |
| 13787 | 8 | VH137871210A | SCREW Valve Adj |
| 13735 | 16 | VH137351470A | SEAT Valve Spg, Upper |
| 13734 | 16 | VH137341280A | SEAT Valve Spg, Lower |
| 13732 | 16 | VH137321500A | SPRING Valve, Inner |
| 13731 | 16 | VH137311610A | SPRING Valve, Outer |
| 13719 | 16 | VH137191470A | SEAL Valve Stem Oil |
| 13715 | 8 | VH137151733A | VALVE Exh, Std |
| 13711 | 8 | VH137111632A | VALVE Intake, Std |
| 13709 | 8 | VH137091030A | SCREW Sub Assy, Valve Adj |
| 13706 | 8 | VH137061080A | CROSS Head Sub Assy |
Hino Genuine Engine Parts
