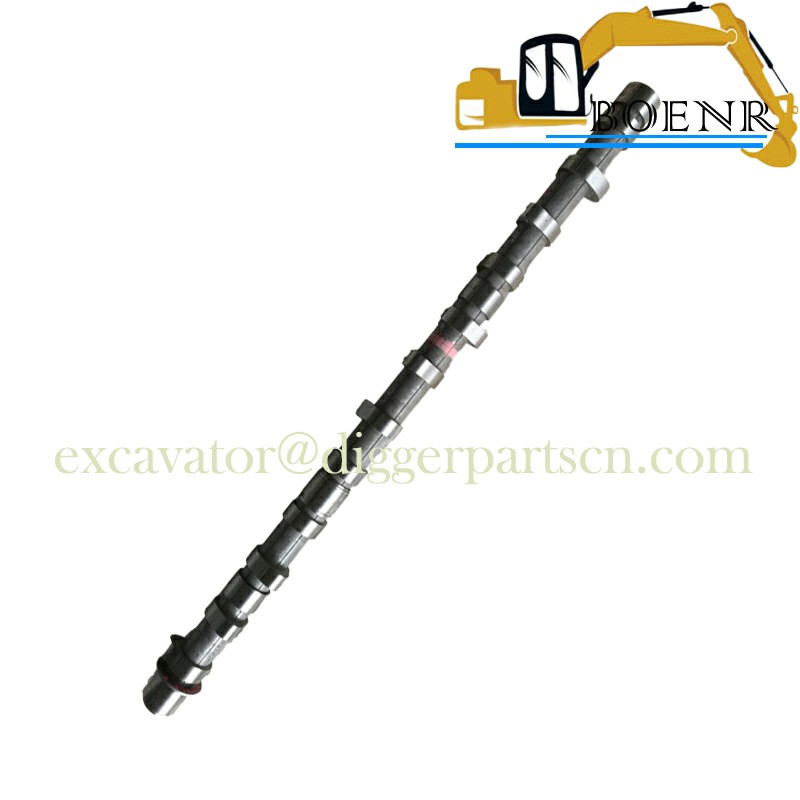

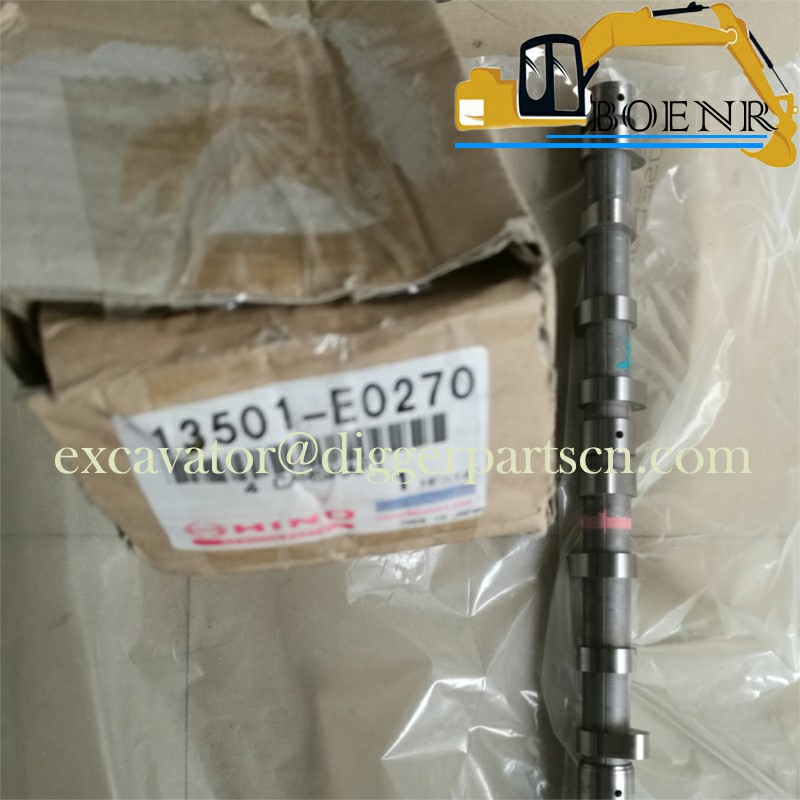

VH135011620A VH13501E0300 13501-E0270 J08E Engine Camshaft For SK330-8 Sk350-8 Sk380-8 SK350-9
SK330-8 Sk350-8 Sk380-8 SK350-9 J08E Engine Camshaft VH135011620A VH13501E0300 13501-E0270
| Part Name | Camshaft | Part Number | VH135011620A VH13501E0300 13501-E0270 |
| Brand | Kobelco , kobeki、hino | Applicable Model | SK330-8 Sk350-8 Sk380-8 SK350-9 |
Weight: 8KG

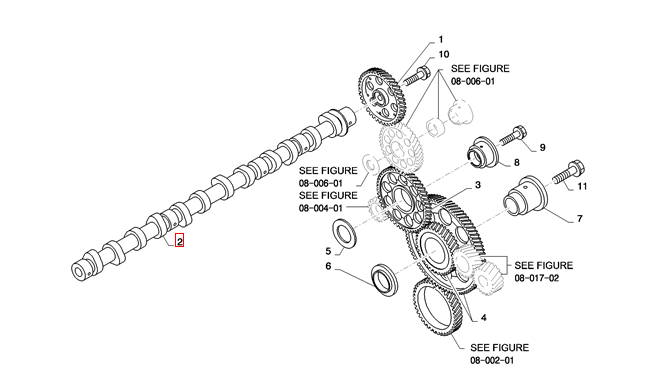

Image: Component assembly diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 11 | 1 | VHSZ91024338 | BOLT |
| 10 | 1 | VHSZ91024265 | BOLT |
| 9 | 1 | VHSZ91024264 | BOLT |
| 8 | 1 | VHS135811530 | SHAFT Idle Gear |
| 7 | 1 | VHS135811440 | SHAFT Idle Gear |
| 6 | 1 | VHS135721271 | PLATE Idle Gear Thrust |
| 5 | 1 | VHS135721230 | PLATE Idle Gear Thrust |
| 4 | 1 | VH13508E0331 | GEAR Idle |
| 3 | 1 | VHS135052292 | GEAR Sub Assy., Idle |
| 2 | 1 | VH13501E0300 | CAMSHAFT Sub-Assy. |
| 1 | 1 | VH13050E0060 | GEAR Camshaft Timing |
