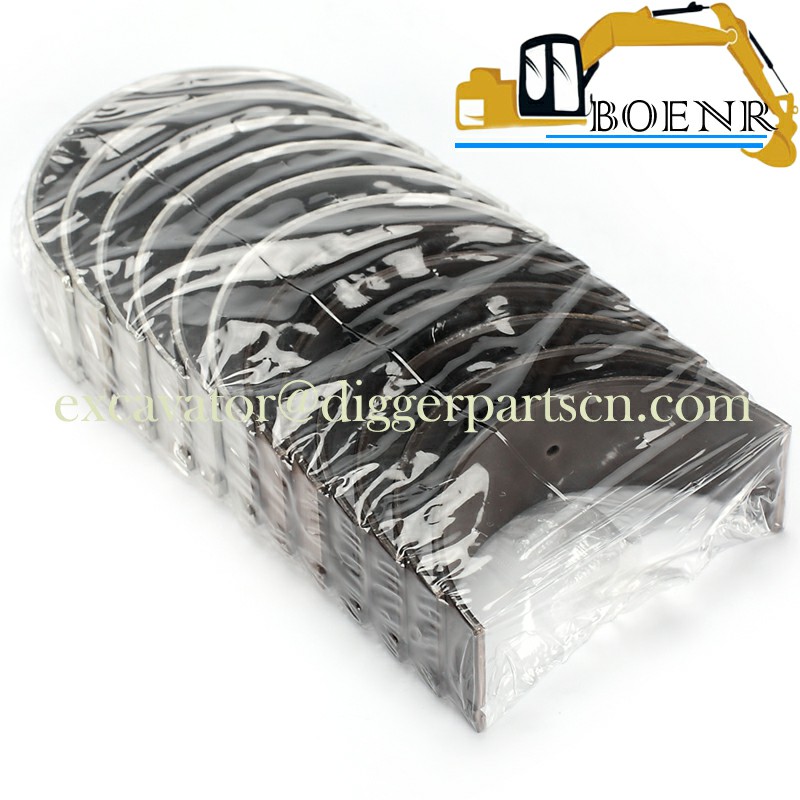

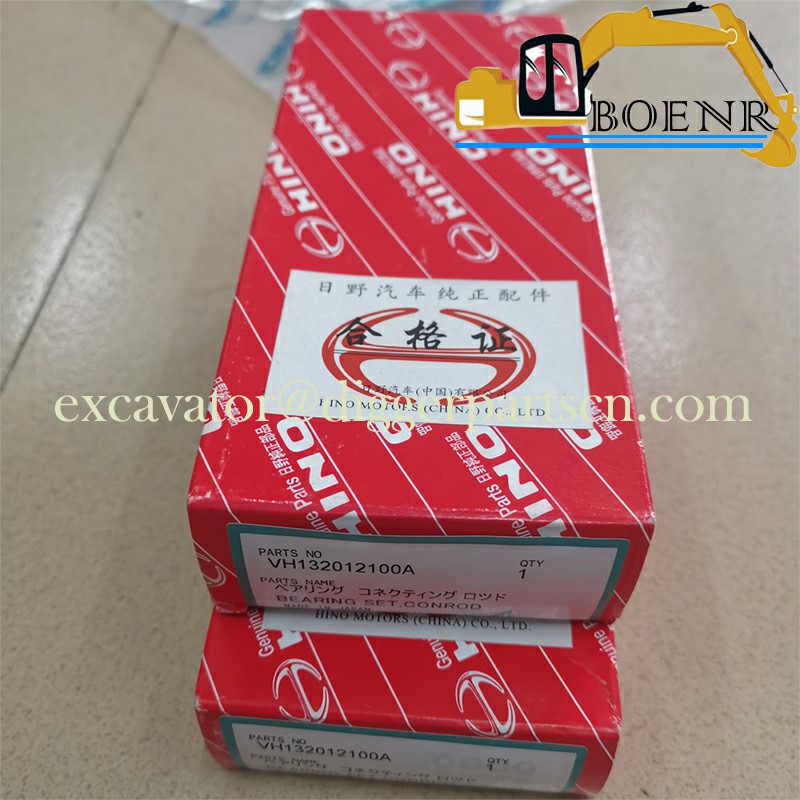

VH132012100A VHS132012100 J08E engine Con Rod Bearing For SK330-8 SK350-8 SK380-8

SK330-8 SK350-8 SK380-8 J08E engine Con Rod Bearing VH132012100A c

Part Name	Bearing	Part Number	VH132012100A VHS132012100
Brand	Kobelco, Kobeki Hino	Applicable Model	SK330-8 SK350-8 SK380-8

Weight: 0.6 kg

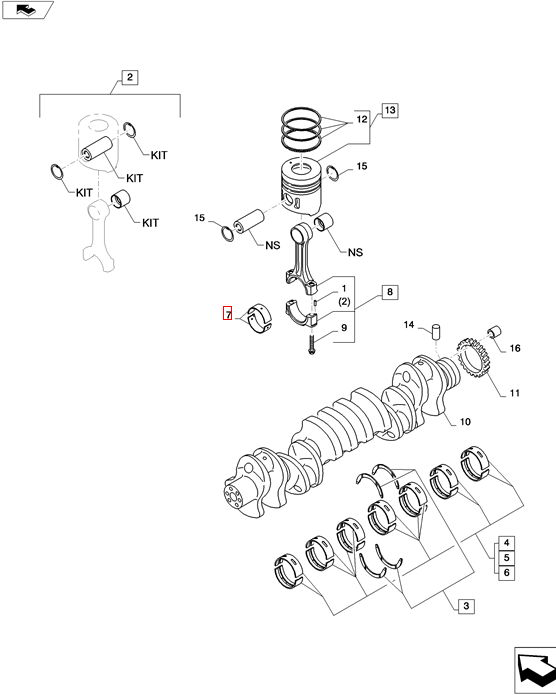

Parts Catalog

ITEM	QTY	PART NUMBER	PART NAME
16	1	VHSZ91029013	COLLAR
15	12	VHSZ52037001	RING Retainer Or Spring, Retainer
14	1	VHSZ25006006	PIN
13	6	VHS130BE0130	PISTON & RINGS KIT Includes Ref. 12
12	1	VHS1304E0030	PISTON RING SET
11	1	VHS135211442	GEAR Crankshaft
10	1	VH13411E0100	CRANKSHAFT
9	2	VHS132651620	BOLT Conrod.
8	6	VH13260E0100	CONNECTING ROD Assy., Includes Ref. 1, 9
7	1	VH13041E0490	BEARING HALF Connecting Rod, O/S 1.00
7	1	VH13041E0480	BEARING HALF Connecting Rod , O/S 0.75
7	1	VH13041E0470	BEARING HALF Connecting Rod, O/S 0.50
7	1	VH13041E0460	BEARING HALF Connecting Rod, O/S 0.25
7	1	VH13041E0450	CRANKSHAFT HALF-BEARING Set, Connecting Rod, Std
6	1	VHS117042030	BEARING SET Crankshaft, U/S 0.50 , Taiho
6	1	VHS117042000	CRANKSHAFT HALF-BEARING U/S 0.50, Daido
5	1	VHS117032000	BEARING SET Crankshaft, U/S 0.25, Taiho
5	1	VHS117031970	CRANKSHAFT HALF-BEARING U/S 0.25 , Daido
4	1	VHS117012140	BEARING SET Crankshaft, Taiho
3	1	VHS110111380	SET OF THRUST WASHERS (STD) Washer Set, Crankshaft Thrust, Std., Taiho
2	6	VH04133E0011	PISTON PIN
1	2	VHSM21200408	PIN
