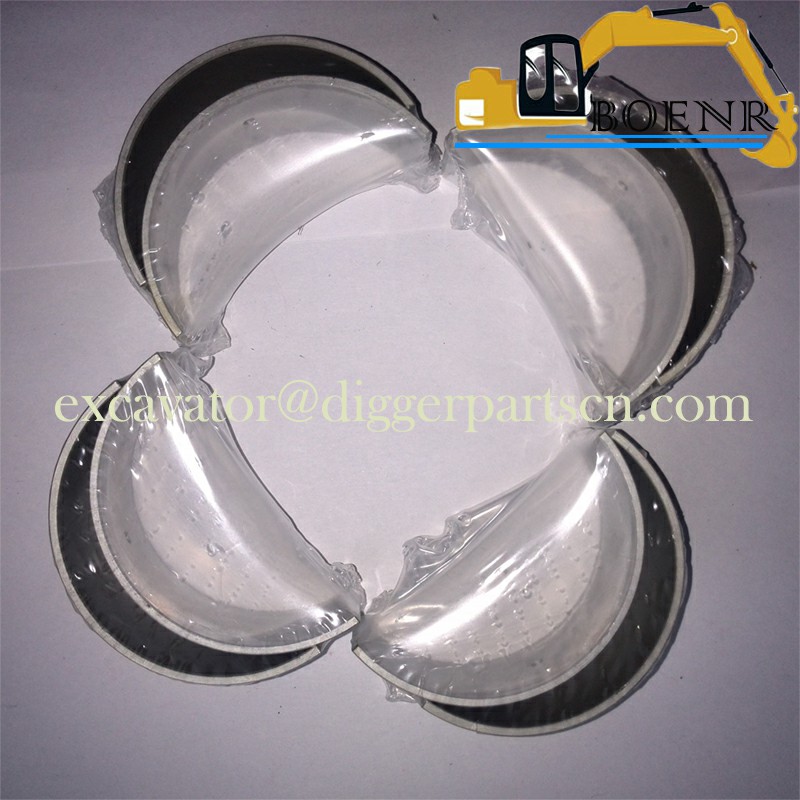

13041-E0800 S1170-12160 13041-E0240 VH13041E0240 VH13041E0560 connecting rod bearing For SK200-8
SK200-8 SK210-8 SK215SR SK235SR connecting rod bearing 13041-E0800 S1170-12160 13041-E0240 VH13041E0240 VH13041E0560
| Part Name | connecting rod bearing | Part Number | 13041-E0800 S1170-12160 13041-E0240 VH13041E0240 VH13041E0560 |
| Brand | Kobelco、Kobeki、Hino | Applicable Model | SK200-8 SK210-8 SK215SR SK235SR |
Weight:0.5KG

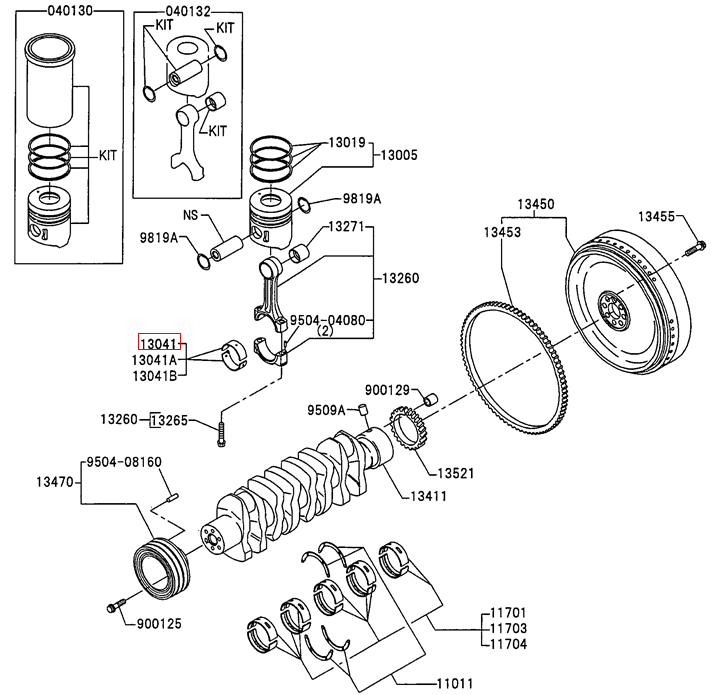

Image: Component assembly diagram
Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 9819A | 8 | VH981937102A | RING Retainer (T=1.2) |
| 9509A | 1 | VH950906124A | PIN |
| 9504-08160 | 1 | VH950408160A | PIN Straight |
| 9504-04080 | 8 | VH950404080A | PIN Straight |
| 900129 | 1 | VH900129119A | COLLAR |
| 900125 | 6 | VH900125116A | BOLT |
| 13521 | 1 | VH135211442A | GEAR Crankshaft |
| 13470 | 1 | VH13470E0020 | CRANKSHAFT PULLEY Assy |
| 13455 | 8 | VH134551550A | BOLT Flywheel |
| 13453 | 1 | VH134531310A | GEAR Flywheel Ring (Teeth=129) |
| 13450 | 1 | VH13450E0120 | FLYWHEEL Assy |
| 13411 | 1 | VH134112281A | CRANKSHAFT |
| 13271 | 4 | VH132711600A | BUSHING Conrod, Std |
| 13265 | 8 | VH132651620A | BOLT Conrod |
| 13260 | 4 | VH132601790A | ROD Assy, Connect Ing |
| 13041B | 1 | VH13041E0260 | BEARING SET onrod, U/S 0.50 |
| 13041A | 1 | VH13041E0250 | BEARING SET Conrod, U/S 0.25 |
| 13041 | 1 | VH13041E0240 | BEARING SET Conrod, Std |
| 13019 | 4 | VH130192080A | PISTON RING SET Ring Sub Set, Piston |
| 13005 | 4 | VH130053220A | PISTON Piston Ring Set |
| 11704 | 1 | VH117042040A | BEARING SET Crankshaft, U/S 0.50 (Taiho) |
| 11703 | 1 | VH117032010A | BEARING SET Bearing Set, Crankshaft, U/S 0.25 (Taiho) |
| 11701 | 1 | VH117012310A | BEARING SET Crankshaft (Taiho) |
| 11011 | 1 | VH110111380A | WASHER Set, Crankshaft Thrust, Std (Taiho) |
| 040132 | 1 | VHS040132124A | PIN Kit, Piston |
| 040130 | 1 | VHS040130270 | PISTON And Ring And Liner Kit (C) |
| 040130 | 1 | VHS040130269 | PISTON And Ring And Liner Kit (B) |
| 040130 | 1 | VHS040130268 | PISTON And Ring And Liner Kit (A) |
