VH111881062A VH11188E0010 11188-E0010 11188-1062A J05E Engine Camshaft Housing for SK200-8 SK210D-8
SK200-8 SK210D-8 SK215SR SK235SRLC-2 J05E Engine Camshaft Housing VH111881062A VH11188E0010 11188-E0010 11188-1062A
| Part Name | Camshaft Housing | Part Number | VH111881062A VH11188E0010 11188-E0010 11188-1062A |
| Brand | Kobelco、Kobeki | Applicable Model | SK200-8 SK210D-8 SK215SR SK235SRLC-2 |
Weight: 0.5KG

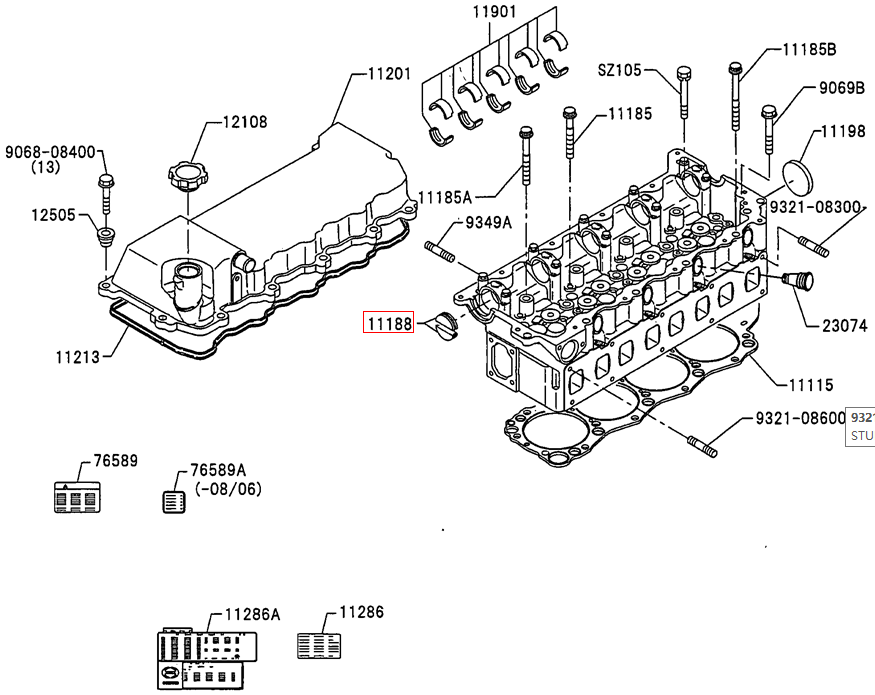

Image: Component assembly diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| SZ105 | 1 | VHSZ10510069A | FLANGE BOLT |
| 9800-06100 | 4 | VH980006100A | BALL Steel |
| 9639A | 4 | VH963917104A | PLUG Expansion |
| 9633-30160 | 5 | VH963330160A | PLUG Sealing |
| 9633-22160 | 8 | VH963322160A | PLUG Sealing |
| 9633-17120 | 4 | VH963317120A | PLUG Sealing |
| 9504-04080 | 10 | VH950404080A | PIN Straight |
| 9349A | 12 | VH934910159A | STUD |
| 9321-08600 | 1 | VH932108600A | STUD |
| 9321-08300 | 1 | VH932108300A | STUD |
| 9069B | 2 | VH906910181A | BOLT Flange (L=40) |
| 9068-08500 | 10 | VH906808500A | BOLT Flange |
| 9068-08400 | 13 | VH906808400A | BOLT Flange |
| 900115 | 4 | VH900115214A | GASKET |
| 76589A | 1 | VH765896350A | PLATE Caution Eng. (Japanese), Years: 06/01/2002-06/01/2008 |
| 76589 | 1 | VH765894090A | PLATE Caution Eng. (Japanese) |
| 23074 | 4 | VH230741070A | SEAL Sub Assy.Injection Pipe Oil |
| 12505 | 13 | VH125051101A | SILENTBLOC Sub Assy |
| 12108 | 1 | VH121081100A | CAP Sub Assy, Oil Filler |
| 11901 | 1 | VH119011070A | BEARING SET Camshaft (Taiho) |
| 1 | VH11286E0440 | PLATE Caution, Start Year: 07/01/2001 | |
| 11286A | 1 | VH82685E0380 | PLATE Caution, Years: 06/01/2002-06/01/2012 |
| 11286 | 1 | VH11286E0250 | PLATE Engine Specification |
| 11213 | 1 | VH112132020A | CYLINDER HEAD GASKET Cover |
| 11201 | 1 | VH112012181A | COVER Sub Assy, Cyl Head |
| 11198 | 1 | VH111981060A | PLUG Cyl Head |
| 11188 | 2 | VH111881062A | PLUG Camshaft Housing |
| 11185B | 5 | VH111852460A | BOLT Cyl Head(L=187) |
| 11185A | 4 | VH111852450A | BOLT Cyl Head(L=156) |
| 11185 | 9 | VH111852261A | BOLT Cyl Head (L=126) |
| 11176 | 4 | VH111761190A | SEAT Inj Nozzle |
| 11135 | 8 | VH111351720A | SEAT/SLOT Valve Exh |
| 11131 | 8 | VH111311480A | SEAT Valve Uptake |
| 11122 | 16 | VH111221220A | BUSHING Valve Guide Intake, Repair Std |
| 11115 | 1 | VH111152900A | CYLINDER HEAD GASKET |
| 11101 | 1 | VH111014950A | HEAD Sub Assy, Cyl |
