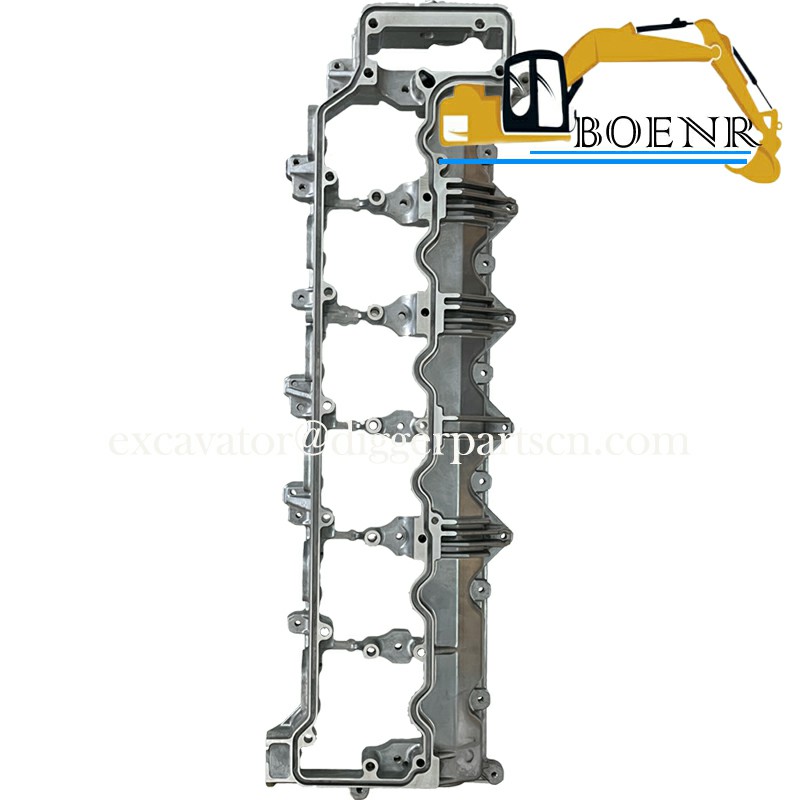

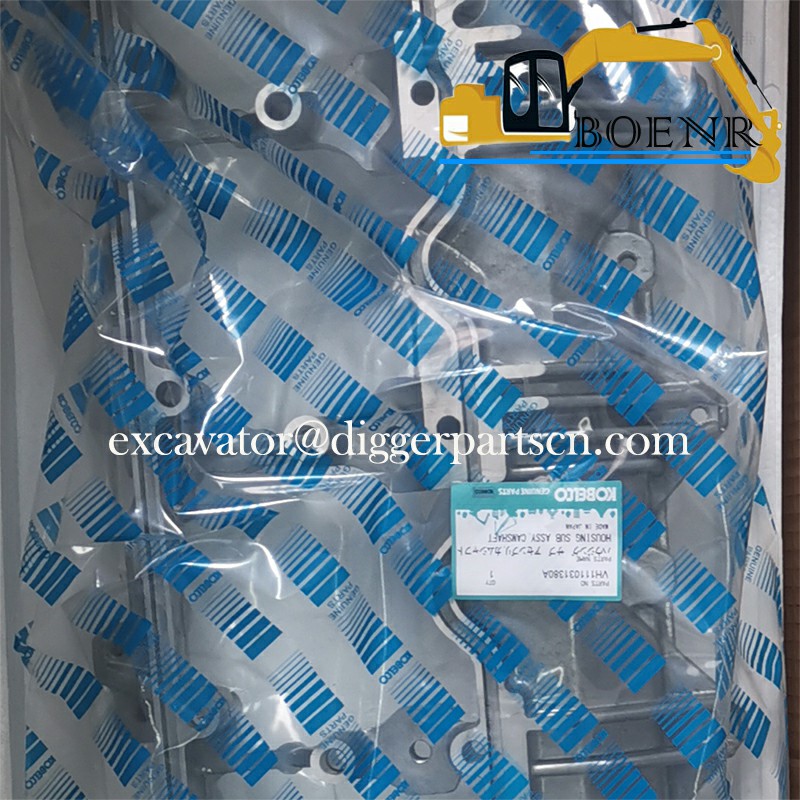

VH111031380A VH111031380B S1110-31380 J08E Engine Camshaft Housing Sub Assy for SK330-8 SK350-8
SK330-8 SK350-8 SK380-8 J08E Engine Camshaft Housing Sub Assy VH111031380A VH111031380B S1110-31380
| Part Name | Camshaft Housing Sub Assy | Part Number | VH111031380A VH111031380B S1110-31380 |
| Brand | Kobelco、HIno、KOBEKI | Applicable Model | SK330-8 SK350-8 SK380-8 |
Weight: 16KG

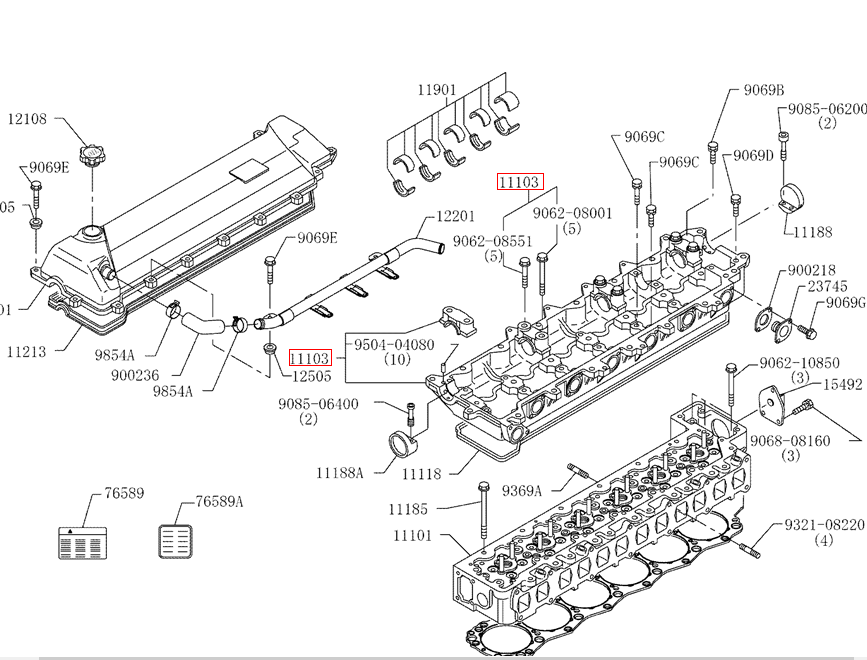

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 9854A | 2 | 985428101A | CLIP |
| 9800-06100 | 6 | 980006100A | BALL STEEL |
| 9633-30160 | 8 | 963330160A | PLUG SEALING |
| 9633-26160 | 1 | 963326160A | PLUG SEALING |
| 9633-22160 | 7 | 963322160A | PLUG SEALING |
| 9633-20120 | 1 | 963320120A | PLUG SEALING |
| 9633-17120 | 12 | 963317120A | PLUG SEALING |
| 9633-14120 | 1 | 963314120A | PLUG SEALING |
| 9504-08160 | 2 | 950408160A | PIN STRAIGHT |
| 9504-04080 | 10 | SM212-00408 | PIN STRAIGHT |
| 9369A | 18 | 936910150A | STUD |
| 9321-08220 | 4 | 932108220A | STUD |
| 9085-06400 | 2 | 908506400A | BOLT TORX |
| 9085-06200 | 2 | 908506200A | BOLT TORX |
| 9069G | 12 | 906908149A | BOLT FLANGE |
| 9069E | 18 | 906908180A | BOLT FLANGE |
| 9069D | 3 | 906908132A | BOLT FLANGE |
| 9069C | 13 | 906908124A | BOLT FLANGE |
| 9069B | 2 | 906908131A | BOLT FLANGE |
| 9068-08160 | 3 | 906808160A | BOLT FLANGE |
| 9062-10850 | 3 | 906210850A | BOLT |
| 9062-08551 | 5 | 906208551A | BOLT |
| 9062-08001 | 5 | 906208001A | BOLT |
| 900236 | 1 | 90023-6322B | VENT |
| 900218 | 6 | 900218116A | FLANGE |
| 900115 | 6 | 90011-5214B | |
| 76589A | 1 | 765896350A | PLATE CAUTION ENG |
| 76589 | 1 | 76589-4090C | CAUTION ENG |
| 23745 | 6 | 237451020A | SEAL INJ PIPE OIL |
| 15492 | 1 | 154928940A | HOLDER CLIP |
| 12505 | 18 | 125051181A | BLOCK SUB ASSY |
| 12201 | 1 | 122012230A | PIPE SUB ASSY, VENT |
| 12108 | 1 | 121081100A | CAP SUB ASSY, OIL FILLER |
| 11901 | 1 | 11901-1030A | SET |
| 11213 | 1 | 112131880A | GASKET GASKET, CYL HEAD COVER |
| 11201 | 1 | 11201-2011B | SUB ASSY, CYL HEAD |
| 11188A | 1 | 111881070A | PLUG CAMSHAFT HOUSING |
| 11188 | 1 | 111881080A | PLUG CAMSHAFT HOUSING |
| 11185 | 26 | 11185-2261C | CYL HEAD |
| 11176 | 6 | 111761190A | NOZZLE INJ NOZZLE |
| 11135 | 12 | 11135-1720B | EXHAUST |
| 11131 | 12 | 11131-1480B | INTAKE |
| INTAKE, REPAIR STD | |||
| 11122 | 24 | 111221220A | BUSHING VALVE GUIDE |
| 11118 | 1 | S1111-81011 | GASKET CAMSHAFT HOUGING |
| 11115 | 1 | 111152870A | GASKET |
| 11103 | 1 | S1110-31380 | HOUSING ASSY. SUB ASSY, CAMSHAFT |
| 11101 | 1 | 11101-4830C | ASSY |
