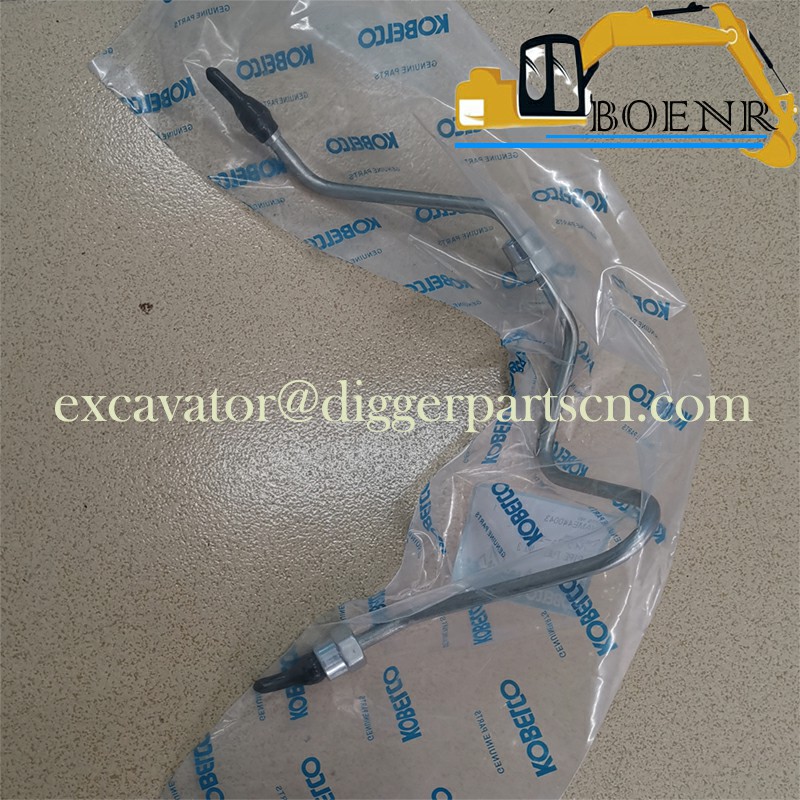

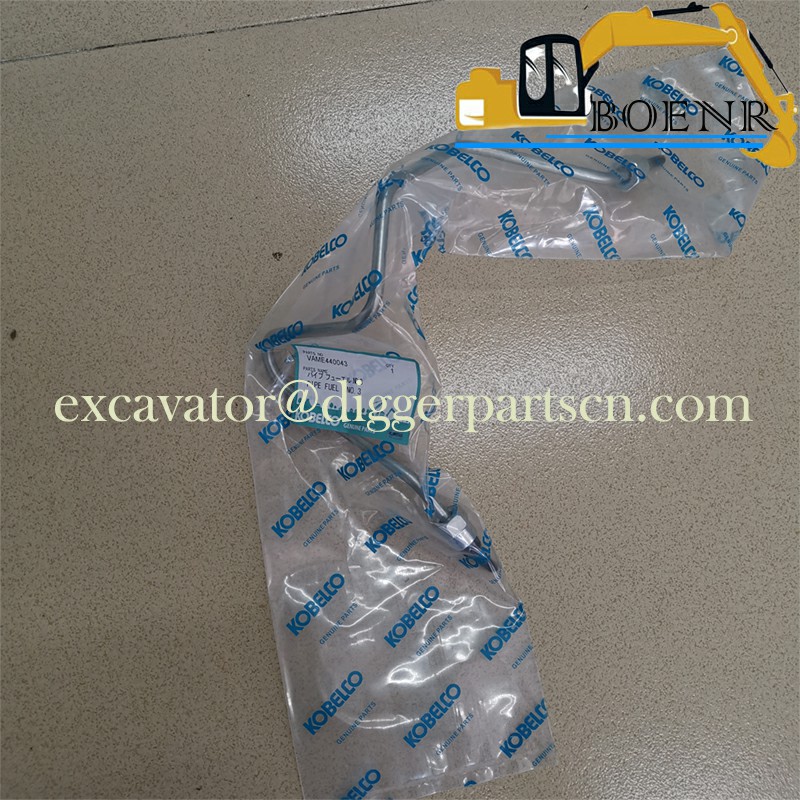

VAME440043 ME440043 6D16T Engine Diesel Pipe For SK330-6 SK290-6E SK330-6E
SK330-6 SK290-6E SK330-6E 6D16T Engine Diesel Pipe VAME440043 ME440043
| Part Name | Pipe | Part Number | VAME440043 ME440043 |
| Brand | Kobelco Kobeki | Applicable Model | SK330-6 SK290-6E SK330-6E |
Weight: 0.5 kg

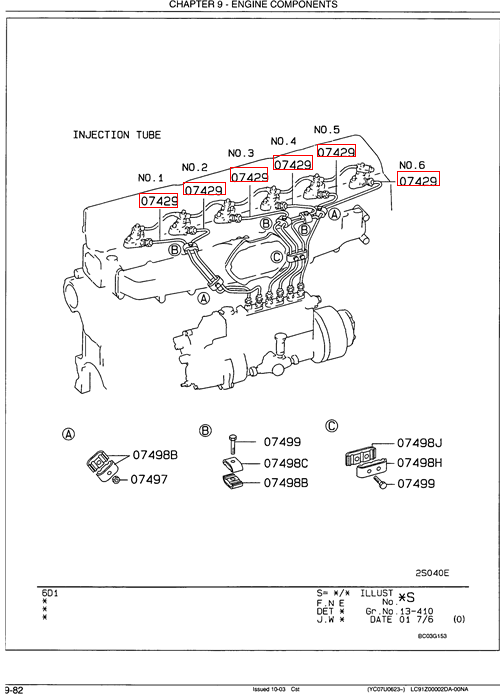

Image: Component assembly diagram
| ITEM | QTY | PARTS NO. | PART NAME |
| 07499 | 5 | VAMF240032 | BOLT FUEL INJECTION TUBE, WASHER ASSEMBLE D.6X32, 0212-1- |
| 07498J | 1 | VAMH020296 | CLAMP FUEL INJECTION TUBE, D=6X3, 0212-1- |
| 07498H | 1 | VAMH020295 | CLAMP FUEL INJECTION TUBE, D=6X3, 0212-1- |
| 07498C | 3 | VAMH020294 | CLAMP FUEL INJECTION TUBE, D=6X2, 0212-1- |
| 07498B | 7 | VAMH020293 | CLAMP FUEL INJECTION TUBE, D=6X2, 0212-1- |
| 07497 | 2 | VAMF434103 | NUT FUEL INJECTION TUBE, FLANGE.6, 0212-1- |
| 07494 | 12 | VAMH001516 | BOLT FUEL INJECTION NOZZLE, 8X64, 0212-1- |
| 07493C | 6 | VAME705403 | NUT FUEL INJECTION NOZZLE, 0212-1- |
| 07493B | 6 | VAME748013 | NUT FUEL INJECTION NOZZLE, 0212-1- |
| 07491 | 12 | VAME705407 | PIN FUEL INJECTION NOZZLE, 0212-1- |
| 07488B | 6 | VAME705408 | SCREW FUEL INJECTION NOZZLE, 0212-1- |
| 07434B | 6 | VAME705409 | SPRING FUEL INJECTION NOZZLE HOLDER, 0212-1- |
| 07432B | 6 | VAME738087 | PUSH ROD, FUEL INJECTION NOZZLE HOLDER, 0212-1- |
| 07429 | 1 | VAME078566 | INJECTION PIPE TUBE, FUEL INJECTION, 6.35X2.0X490 NO.6, 0212-1- |
| 07429 | 1 | VAME440045 | TUBE FUEL INJECTION, 6.35X2.0X470 NO.5, 0212-1- |
| 07429 | 1 | VAME440044 | TUBE FUEL INJECTION, 6.35X2.0X470 NO.4, 0212-1- |
| 07429 | 1 | VAME440043 | TUBE FUEL INJECTION, S.35X2.0X470 NO.3, 0212-1- |
| 07429 | 1 | VAME440042 | TUBE FUEL INJECTION, 6.35X2.0X470 NO.2, 0212-1- |
| 07429 | 1 | VAME440041 | TUBE FUEL INJECTION, 6.35X2.0X470 NO.1, 0212-1- |
| 07420 | 6 | VAME748723 | FUEL SYSTEM INJECTOR NOZZLE, FUEL INJECTION, 0212-1- |
| 07414 | 6 | VAME705426 | HYD CONNECTOR JOINT, FUEL INJECTION NOZZLE HOLDER, 0212-1- |
| 07410A | 6 | VAME740838 | NOZZLE HOLDER HOLDER ASSY, FUEL INJECTION NOZZLE, 0212-1- |
| 07406D | 12 | VAME705389 | PACKING GASKET, FUEL INJECTION NOZZLE INR, 0212-1- |
| 07406C | 6 | VAME705425 | GASKET FUEL INJECTION NOZZLE INR, 0212-1- |
| 07406B | 6 | VAME705391 | GASKET FUEL INJECTION NOZZLE INR, 0212-1- |
| 07405 | 6 | VA3096102300 | O-RING GASKET, FUEL INJECTION NOZZLE, 0212-1- |
| 07404 | 6 | VAME705400 | SCREW EYEBOLT, FUEL INJECTION NOZZLE, 0212-1- |
| 07403 | 6 | VAME036562 | DUST CAP FUEL INJECTION NOZZLE HOLDER, 0212-1- |
| 07400A | 6 | VAME440071 | NOZZLE NOZZLE & HOLDER ASSY, FUEL INJECTION, ZEXEL, 0212-1- |
