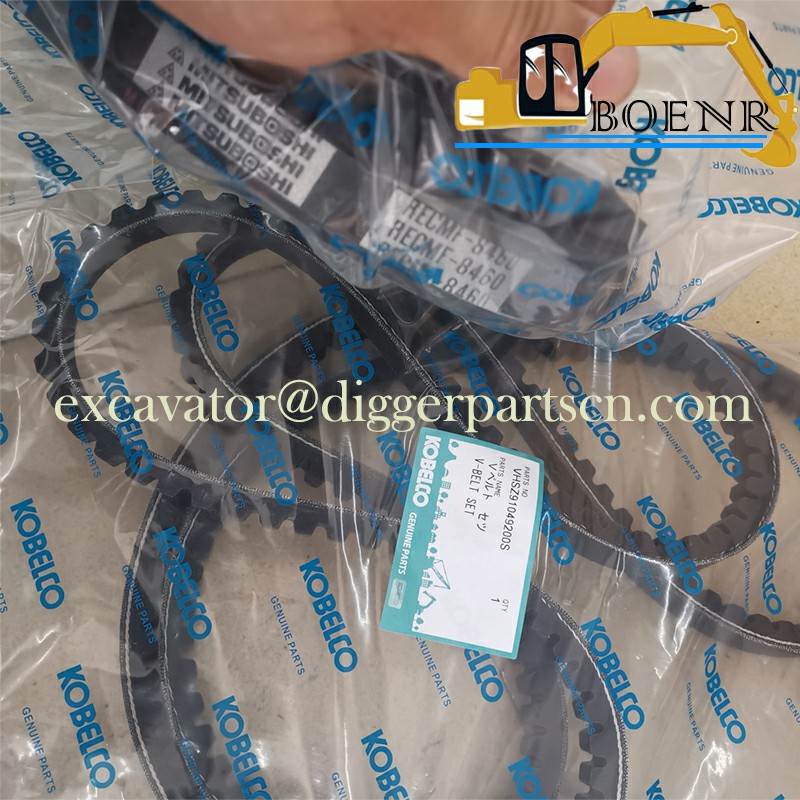

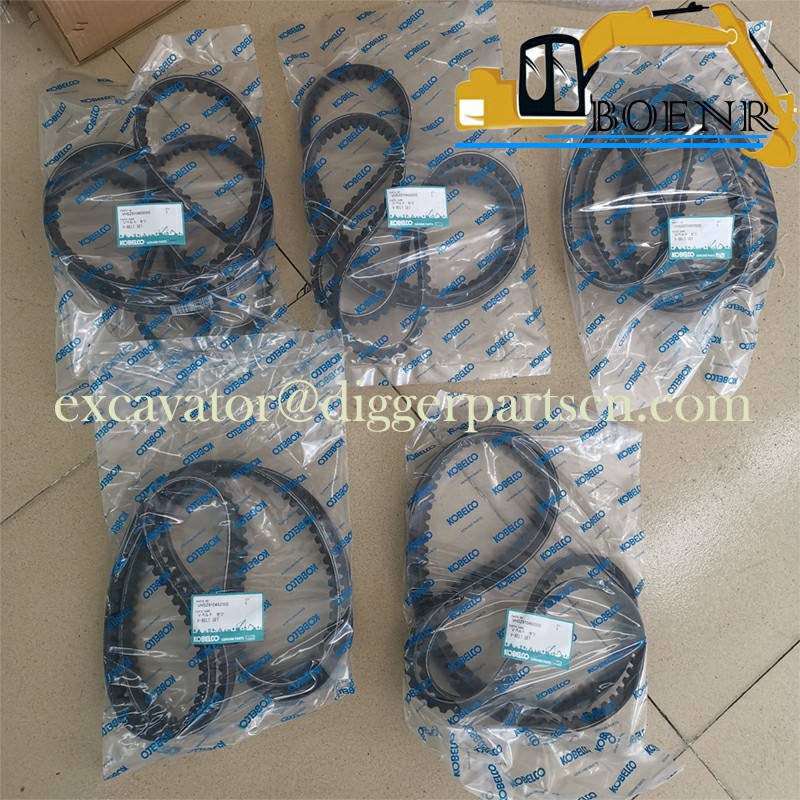

VHSZ91049200 VH900149375A J05E Engine Alternator Belt For SK200-8 SK210-8 SK250-8 SK260-8 SK2215SR
SK200-8 SK210-8 SK250-8 SK260-8 SK2215SR J05E Engine Alternator Belt VHSZ91049200 VH900149375A
| Part Name | Belt | Part Number | VHSZ91049200 VH900149375A |
| Brand | Kobelco Kobeki | Applicable Models | SK200-8 SK210-8 SK250-8 SK260-8 SK2215SR |
Weight:0.45 KG
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| S1138 | 1 | VHS1138E0010 | ADAPTER Flywheel Housing Speed Sensor, Years: 06/01/2002-06/01/2002 |
| 9659B | 1 | VH965910111A | WASHER Soft |
| 9659A | 1 | VH965914103A | WASHER Soft |
| 9644A | 1 | VH964403136A | O-RING |
| 9412-10252 | 1 | VH941210252A | BOLT W/Washer |
| 9280-14350 | 1 | VH928014350A | LOCK Washer |
| 9262-10360 | 1 | VH926210360A | WASHER Plain |
| 9260-14270 | 2 | VH926014270A | WASHER Plain |
| 9241-14147 | 1 | VH924114147A | NUT |
| 9241-10107 | 1 | VH924110107A | NUT |
| 9240-08087 | 5 | VH924008087A | NUT |
| 9190-06121 | 1 | VH919006121A | BOLT |
| 9189A | 1 | VH918908135A | BOLT |
| 9069A | 1 | VH906914127A | BOLT Flange |
| 9068-12700 | 2 | VH906812700A | BOLT Flange |
| 9068-10350 | 1 | VH906810350A | BOLT Flange |
| 9068-08300 | 2 | VH906808300A | BOLT Flange, Years: 06/01/2002-06/01/2002 |
| 9068-08250 | 1 | VH906808250A | BOLT Flange |
| 9068-08200 | 1 | VH906808200A | BOLT Flange |
| 9068-08160 | 7 | VH906808160A | BOLT Flange |
| 9068-08160 | 2 | VH906808160A | BOLT Flange |
| 9061-06140 | 4 | VH906106140A | BOLT |
| 9011-64401 | 1 | VH901164401A | BOLT |
| 900149 | 1 | VH900149375A | BELT V Set |
| 900124 | 1 | VH900124171A | BOLT |
| 89411 | 1 | VH894111280A | SENSOR Assy, Speed |
| 89410A | 1 | VH894101290A | SENSOR Assy, Speed, Years: 06/01/2002-06/01/2002 |
| 89410 | 1 | VH894101570A | SENSOR Assy, Speed |
| 89390 | 1 | VH893901080A | SENSOR Assy, Pressure |
| 83530 | 1 | VH835301471A | SWITCH Assy, Oil Press |
| 83420 | 1 | VH834201250A | SENSOR Assy, Water Temp Sender |
| 82715 | 1 | VH82715E0C60 | BRACKET Wiring Harness Clamp |
| 1 | VH82702E0200 | BRACKET Sub Assy, Start Year: 06/01/2003 | |
| 82702B | 1 | VH120173550 | Sub Assy, Years: 06/01/2002-06/01/2002 |
| 82702A | 1 | VH82702E0240 | BRACKET Sub Assy, Wiring Harness |
| 82702 | 1 | VH82702E0230 | BRACKET Sub Assy, Wiring Harness |
| 82560 | 1 | VH825601200A | ELEC CONNECTOR Assy |
| 82121B | 1 | VH82121E0D60 | WIRE Engine |
| 1 | VH82121E0G60 | WIRE Eng, Start Year: 06/01/2010 | |
| 1 | VH82121E0311 | Eng, Years: 06/01/2003-06/01/2009 | |
| 82121A | 1 | VH820649540A | HARNESS Sub Assy, Eng, Years: 06/01/2002-06/01/2002 |
| 1 | VH82121E0842 | WIRE Sub Assy,Eng, Start Year: 06/01/2003 | |
| 82121 | 1 | VH820649530A | HARNESS Harness Sub Assy, Eng, Years: 06/01/2002-06/01/2002 |
| 82064C | 1 | VH820646621A | HARNESS Sub Assy,Eng |
| 82051 | 1 | VH82051E0010 | HARNESS Sub Assy, Fuel Control |
| 28100 | 1 | VH281002894A | STARTER MOTOR Assy (24V-50A) (See Fig No. 19-05) |
| 27040 | 1 | VH270402192A | ALTERNATOR Assy, W/Reg (24V-50A) (See Fig No. 19-04) |
| 19113 | 4 | VH191131050A | INSULATOR Glow Plug |
| 19112 | 3 | VH191121201A | WIRE Glow Plug Ground |
| 19110 | 4 | VH191101261A | SPARK PLUG Assy, Glow |
| 15492 | 1 | VH154929520A | HOLDER Clip |
| 12514 | 1 | VH12514E0020 | BAR Alternator Belt Adjusting |
| 12511A | 1 | VH125114170A | BRACKET Gen |
| 12511 | 1 | VH125113580A | BRACKET Gen |
| 12281 | 1 | VH12281E0030 | HANGER Engine |
| 12017G | 1 | VH120172600A | BRACKET Sub Assy |
| 12017D | 1 | VH120173531A | BRACKET Sub Assy |
| 12017C | 1 | VH120173520A | BRACKET Assy |
| 12017 | 1 | VH120172220A | BRACKET Assy |
