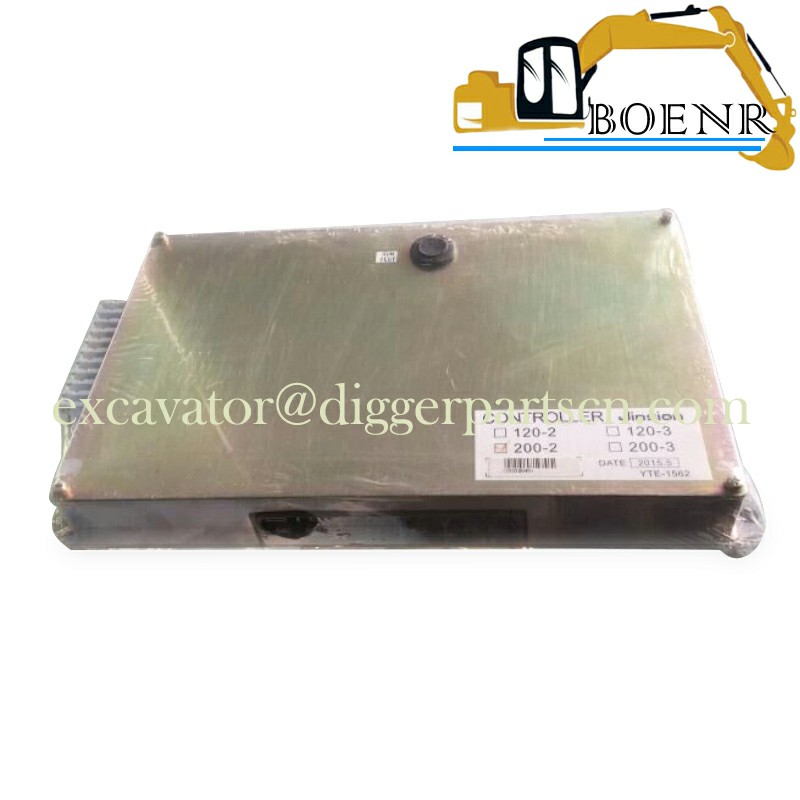

LP22E00004F2 LP22E00019F1 Controller For SK120-5 SK120-2
SK120-5 SK120-2 Controller LP22E00004F2 LP22E00019F1
| Part Name | Controller | Part Number | LP22E00004F2 LP22E00019F1 |
| Brand | Kobeki | Applicable Model | SK120-5 SK120-2 |
Weight: 1.3 kg

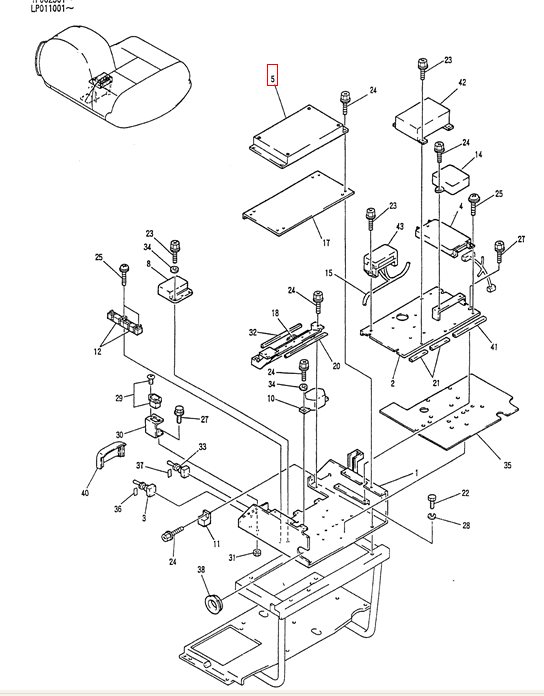

Part Location Diagram
| ITEM | QTY | PARTS NO. | PART NAME |
| 43-7 | 1 | YN73E00001S008 | WIRE HARNESS |
| 43-6 | 8 | 2479R655S9 | FUSE 20 Amp |
| 43-5 | 3 | 2479R655S8 | FUSE 10 Amp |
| 43-4 | 9 | 2479R655S10 | FUSE 5 Amp |
| 43-3 | 1 | YN73E01002P1 | LABEL |
| 43-2 | 1 | YN73E00001S002 | COVER |
| 43-1 | 1 | YN73E00001S001 | BASE |
| 43 | 1 | YN73E00001F2 | FUSE BOX |
| 1 | YN22E00013F5 | CONTROL (CLUSTER, GAUGE), ASN LP012423- | |
| 1 | YN22E00013F5 | CONTROL (CLUSTER, GAUGE), ASN YP002351- | |
| 42 | 1 | YN22E00013F3 | CONTROLLER (CLUSTER,GAUGE), BTW LP011001 & LP012422 |
| 42 | 1 | YN22E00013F3 | CONTROLLER (CLUSTER,GAUGE), BTW YP002301 & YP002350 |
| 41 | 1 | YN22M01006D4 | BUSHING |
| 40 | 1 | YN20M01098P1 | COVER |
| 38 | 1 | 2420Z699 | GROMMET |
| 37 | 1 | YN22M01014P1 | LABEL Decal, Swing Parking Brake Release Lock and Normal |
| 36 | 1 | YN22M01013P1 | LABEL |
| 35 | 1 | YN22M01012P2 | SHEET,RUBBER |
| 34 | 5 | ZW16X06000 | WASHER ID 06 x OD 12.5 x Th 1.6mm |
| 33 | 1 | YN50S01002P1 | SWITCH (PARKING BRAK RELEASE) |
| 33 | 1 | YN50S01002P1 | SWITCH (PARKING BRAK RELEASE) |
| 32 | 1 | YN22M01011D1 | BUSHING |
| 31 | 2 | ZN18C06005 | NUT M06x1.0mm |
| 30 | 1 | YN22M01010P1 | BRACKET |
| 29 | 1 | YN58S00002P1 | HOURMETER |
| 28 | 3 | ZW26X10000 | LOCK WASHER ID 10 x OD 18 x Th 2.5mm |
| 27 | 2 | YN22M01005D1 | SCREW M06x1.0x12mm (Incls. Washer & Lockwasher) |
| 25 | 6 | 2420R1091D1 | BOLT |
| 24 | 11 | YN22M01005D2 | SCREW M06x1.0x16mm (Incls. Washer & Lockwasher) |
| 23 | 13 | YN22M01005D3 | SCREW M06x1.0x20mm (Incls. Washer & Lockwasher) |
| 22 | 3 | ZS18C10020 | SCREW M10x1.50x20mm |
| 21 | 2 | YN22M01006D3 | BUSHING |
| 20 | 1 | YN22M01006D1 | BUSHING |
| 18 | 1 | YN22M01008P1 | SUPPORT |
| 17 | 1 | YN22M01004P1 | PLATE |
| 15-5 | 1 | YN22M01005D2 | SCREW M06x1.0x16mm (Incls. Washer & Lockwasher) |
| 15-3 | 2 | YN22M01005D3 | SCREW M06x1.0x20mm (Incls. Washer & Lockwasher) |
| 15-3 | 1 | 2432R233D1 | CLIP 37x12x40mm |
| 15-2 | 4 | YN03E01001D2 | CLIP |
| 15-1 | 1 | YW13E01001P2 | WIRE HARNESS |
| 15 | 1 | YW14E00001F1 | HARNESS, WIRING |
| 14 | 1 | YN22E00010F1 | CONTROL (WIPER) |
| 12 | 2 | YN33T00002D1 | RESISTOR |
| 11 | 1 | YN24S00001P1 | RELAY |
| 10 | 1 | YN24S00002P1 | RELAY |
| 8 | 1 | YN24E00001F1 | |
| 1 | LP22E00004F4 | CONTROLLER (KPSS), ASN LP012823 | |
| 1 | LP22E00004F4 | CONTROLLER (KPSS), ASN YP002359 | |
| 1 | LP22E00004F3 | CONTROLLER (KPSS), BTW LP012523 & LP012822 | |
| 1 | LP22E00004F3 | CONTROLLER (KPSS), BTW YP002353 & YP002358 | |
| 5 | 1 | LP22E00004F2 | CONTROL (KPSS), BTW LP011001 & LP012522 |
| 5 | 1 | LP22E00004F2 | CONTROL (KPSS), BTW YP002301 & YP002352 |
| 4 | 1 | YN22E00014P1 | CONTROL (AIR-CON) |
| 3 | 1 | YN50S01003P1 | SWITCH (MODE RELEASE) |
| 2 | 1 | YN22M01003P1 | PLATE |
| 1 | 1 | YN22M01002P1 | BOX |
| LP22M00001F3 | CONTROLLER GROUP |
