LS30V00009F1 Hydraulic main control valve For SK460-8 SK485-8
SK460-8 SK485-8 Hydraulic main control valve LS30V00009F1
| Part Name | Control Valve | Part Number | LS30V00009F1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK460-8 SK485-8 |
Weight: 445 kg

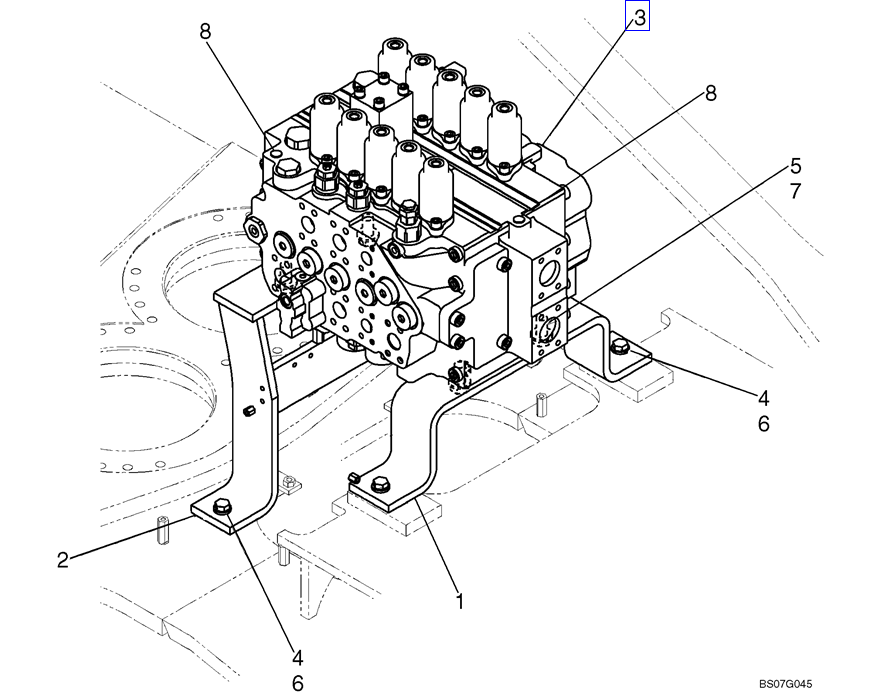

Image: Part Installation Diagram
Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 8 | 3 | YN64H01392D1 | CAP 14.0mm (Nylon) |
| 7 | 4 | ZS18C20040 | SCREW M20x2.50x40mm |
| 6 | 4 | ZS18C16040 | SCREW M16x2.0x40mm |
| 5 | 4 | ZW16H20000 | WASHER ID 21 x OD 40 x Th 4.5mm |
| 4 | 4 | ZW16H16000 | WASHER ID 17 x OD 32 x Th 4.5mm |
| 3 | 1 | LS30V00009F1 | CONTROL VALVE See Figure 08-01-00 |
| 2 | 1 | LS64H01047P1 | BRACKET |
| 1 | 1 | LS64H01058P1 | BRACKET |
| Main Valve Installation, LS64H00086F1 |
