Mastering Kobelco SK-8 ABC Electromechanical Adjustment: The Definitive Guide
For Kobelco SK-8 series (SK200/210/260/350-8), the ABC Electromechanical Adjustment is the most critical calibration to ensure engine and hydraulic harmony. Failure to perform this correctly can lead to the dreaded Z030 error and severe power loss.

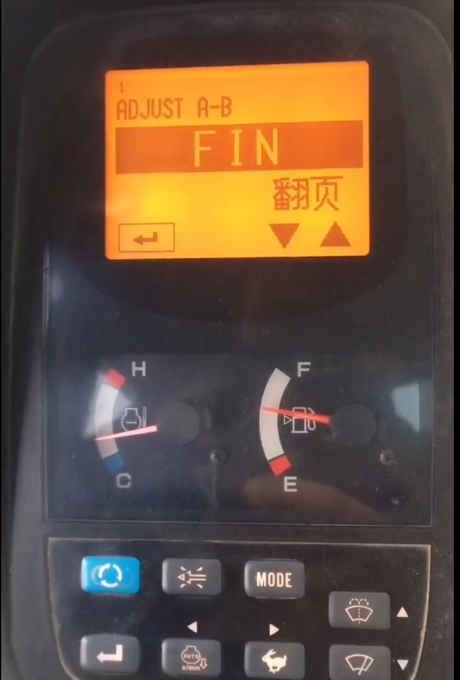

How to Enter the Menu ：
1. Hold [Work Mode] + Turn Key ON.
2. Wait 5-10s, then hold [Buzzer Stop] for 6s.
3. Select ADJUST A-B FIN on the monitor.
1. Hold [Work Mode] + Turn Key ON.
2. Wait 5-10s, then hold [Buzzer Stop] for 6s.
3. Select ADJUST A-B FIN on the monitor.
1. "A" Adjustment: Throttle Learning
The "A" adjustment synchronizes the engine ECU with the throttle dial. It ensures that when you turn the dial to step 10, the engine reaches its maximum rated RPM accurately.
[IMAGE: Kobelco Monitor showing A-ADJUST Interface]
2. "B" Adjustment: Power & Torque Matching
This is the heart of Kobelco maintenance. It balances the engine's output torque with the hydraulic pump's power absorption. A failed B-adjustment is a clear diagnostic signal.

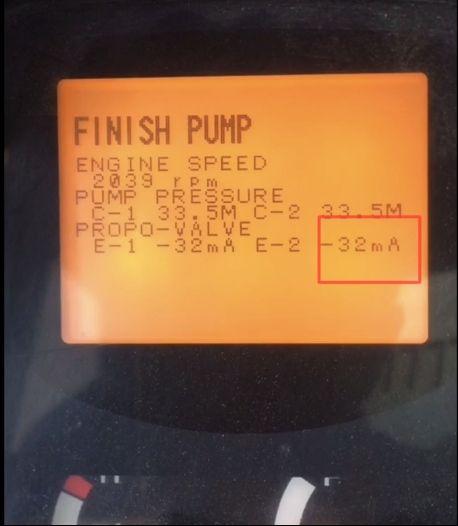

| B-Adjustment Result | Technical Meaning | Diagnostic Action |
|---|---|---|
| Near 0 mA | Perfect Matching | No action needed. |
| -50 mA (or Large Neg) | Engine Horsepower Loss | Check fuel filters, injectors, and turbo. |
| Positive (+) Values | Pump Displacement Low | Check pump regulators and solenoids. |
Expert Warning: If the screen stays at -50 mA, your engine cannot handle the pump's load. Do not force the adjustment; fix the engine performance first.
3. "C" Adjustment: Pump Cut-off Calibration
The "C" adjustment calibrates the P1 and P2 proportional valves. This controls the "unloading" phase, ensuring the machine feels smooth and responsive without jerky movements or engine stalling under high pressure.
The Critical Z030 Error
Important: If the ABC process is interrupted or fails (common in BU or later models), the Z030 error will trigger. This forces the machine into a "limp mode," causing extremely slow hydraulic movements.Before you begin, make sure the excavator is in proper working order.
