Why Does Your Kobelco Excavator Keep Leaking Hydraulic Cylinder Oil Seals? 4 Key Causes
Many excavator owners face a frustrating problem: they replace the oil seals on their hydraulic cylinders, only for them to start leaking again after just a few days! Most people immediately blame the quality of the new oil seals. This blog post will provide an in-depth analysis of the root causes of hydraulic cylinder oil leaks.
Here are the 4 main hidden causes that ruin your new hydraulic cylinder oil seals:
1. Piston Rod Surface Damage or Bending
1. Check the Piston Rod Surface

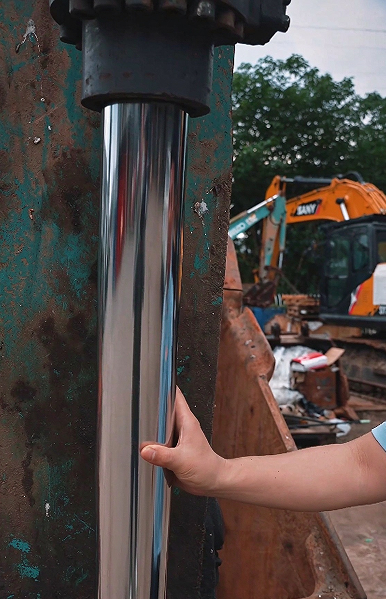

The surface finish requirements for hydraulic cylinder piston rods are extremely strict. If there are scratches, pits, or grooves on the rod, even top-tier oil seals will be cut and destroyed in a short time. Run your hands along the rod to feel for any rough spots or scratches.
Additionally, check if the rod is bent. You can pull a straight string or line along the rod to inspect its straightness. If it's scratched or bent, repair or replace the piston rod before installing new seals.
2. Rust Inside the Cylinder Head Grooves
2. Inspect Internal Seal Grooves for Corrosion

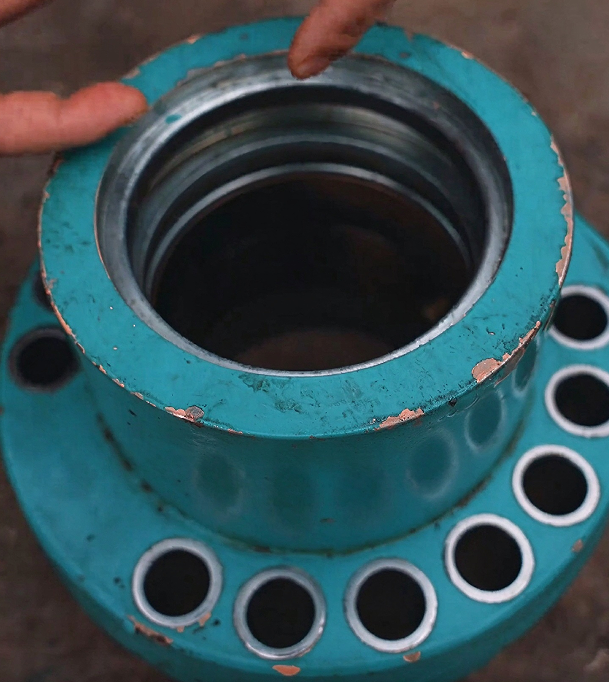

Deformation or rust inside the cylinder head can prevent seals from seating properly. After removing the old oil seal, look closely inside the seal grooves on the inner wall of the cylinder head. If severe rust or debris has built up in these grooves, the new oil seal will fail to seal tightly, causing oil leakage from the seal outer diameter.
3. Worn Bushing / Wear Ring Inside Cylinder Head
3. Check the Wear Ring / Bushing (Cup Sleeve)

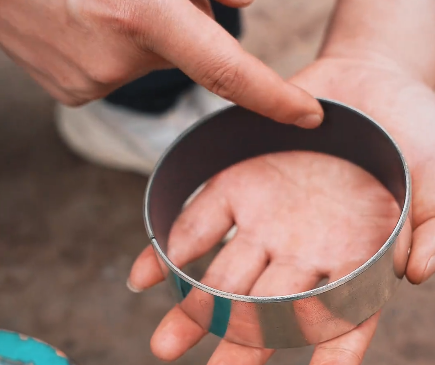

Inside the cylinder head, there is a metallic guide bushing (often referred to as the cup sleeve or guide ring). If this component becomes worn or loose, it allows eccentric movement of the piston rod during operation, which directly scratches the rod surface and ruins the sealing capability of the oil seal.
4. Excessive Pin Clearance at Cylinder Ends
4. Worn Mounting Pins and Excessive Play

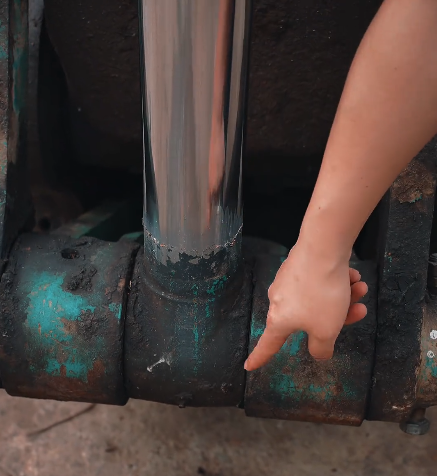

Check the mounting pins and bushings at both ends of the hydraulic cylinder rod. If the pin is severely worn and the clearance is too large, side-loading forces will act on the piston rod during operation. Over time, this force will bend the rod and destroy the seal quickly.
Summary & Final Tips
Replacing hydraulic oil seals is simple, but solving the root cause of repeated leaks requires thorough inspection! If your Kobelco excavator cylinder oil seal fails continuously, check these four points: piston rod condition, cylinder head grooves, guide bushing wear, and pin slop.
