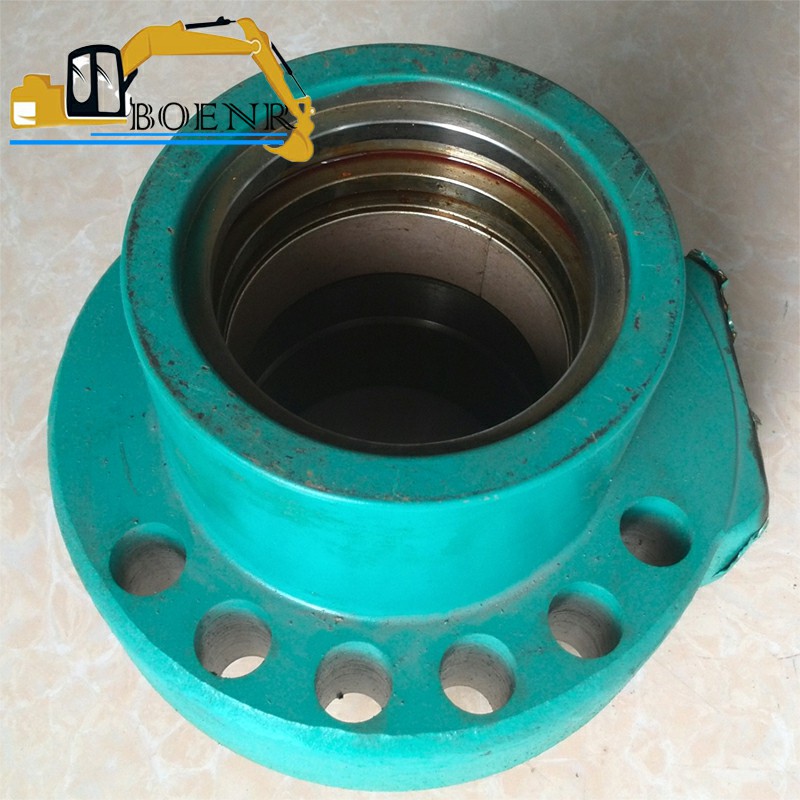

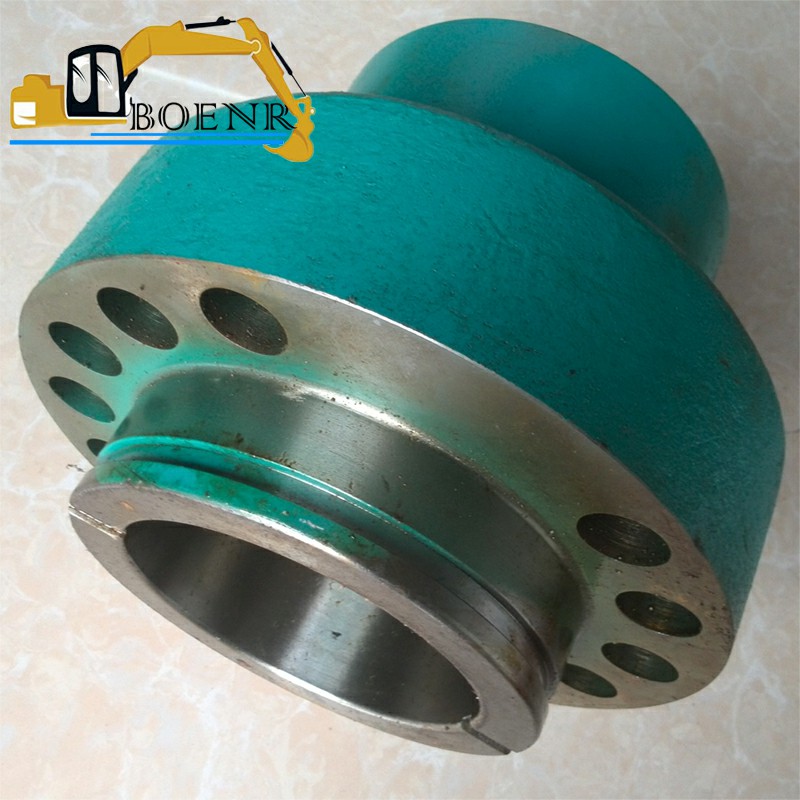

YN01V00151S003 boom cylinder head For SK200-8 SK210-8
SK200-8 SK210-8 boom cylinder head YN01V00151S003
| Part Name | cylinder head | Part Number | YN01V00151S003 |
| Brand | Kobeki Kobelco | Applicable Model | SK200-8 SK210-8 |
Weight: 12 kg

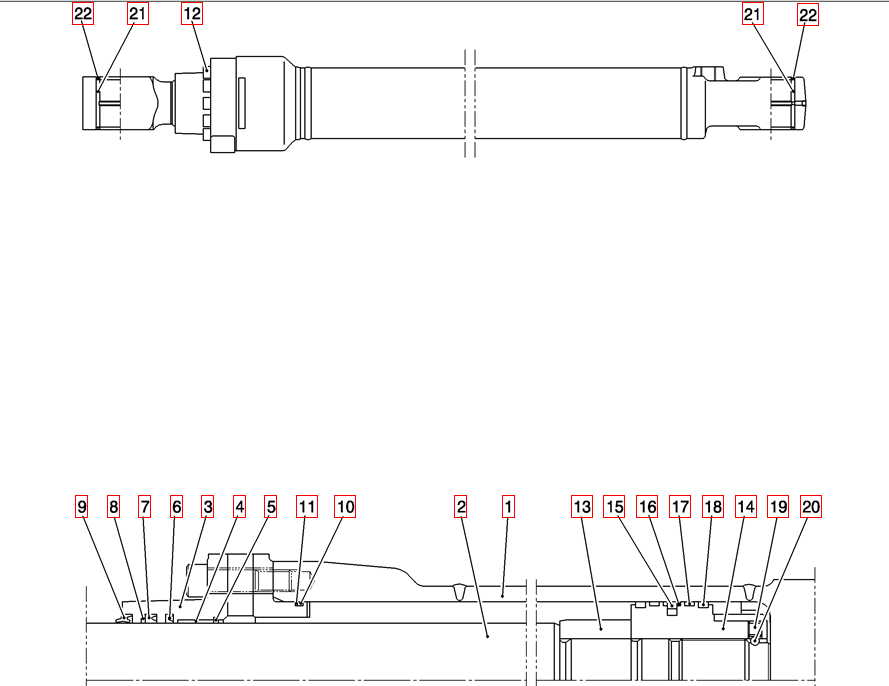

Parts Catalogue
| ITEM | QTY | PART NUMBER | PART NAME |
| 1 | YN01V00174R500 | REPAIR KIT Repair Kit Consists Of Ref. 2x1, 21x2, 22x2 | |
| 1 | YN01V00174R400 | REPAIR KIT Repair Kit Consists Of Ref. 1x1, 21x2, 22x2 | |
| 1 | YN01V00174R300 | REPAIR KIT Repair Kit All (Rod + Piston) | |
| 1 | YN01V00151R200 | REPAIR KIT Piston Side | |
| 1 | YN01V00174R100 | REPAIR KIT Repair Kit Rod Side | |
| 22 | 4 | YN01V00153S022 | SEAL Dust |
| 21 | 4 | YN12B02221P1 | BUSHING |
| 20 | 1 | 2436U330S16 | BALL |
| 19 | 1 | 2438U999S21 | SCREW Set |
| 18 | 2 | 2438U1105S18 | RING Slide |
| 17 | 2 | YN01V00151S018 | RING Slide |
| 16 | 2 | LQ01V00004S017 | BACK-UP RING |
| 15 | 1 | 2438U1105S16 | RING ASSY. Seal |
| 14 | 1 | YN01V00174S014 | PISTON |
| 13 | 1 | YN01V00174S013 | RING Bearing, Cushion |
| 12 | 12 | ZS23C16075 | SCREW Cap |
| 11 | 1 | 2438U1105S12 | BACK-UP RING |
| 10 | 1 | ZD12G11500 | O-RING |
| 9 | 1 | LP01V00008S009 | RING Wiper |
| 8 | 1 | 2438U959S8 | RING Back Up |
| 7 | 1 | YN01V00151S007 | RING U |
| 6 | 1 | YN01V00151S006 | RING Buffer |
| 5 | 1 | 2438U959S5 | RING Retaining |
| 4 | 1 | 2438U1106S17 | BUSHING |
| 3 | 1 | YN01V00151S003 | CYLINDER HEAD |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY Rod, Piston |
| 1 | 1 | NSS | NOT SERVICED SEPARATELY Tube, Cylinder |
| AR | YN01V00174F1 | CYLINDER Bucket |
