Kobelco Excavator Troubleshooting: P0540 Fault Code Guide
Resolving the Kobelco P0540 Alarm Code

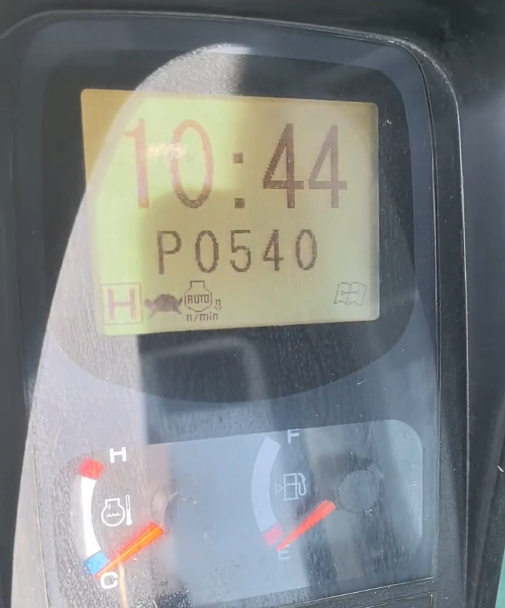

Kobelco Dash-8 models frequently encounter the P0540 fault code. This alarm clearly indicates a preheating system malfunction, which directly leads to difficult or sluggish engine starting, especially during cold starts or in low-temperature environments.
Preheating Relay & Wiring Harness

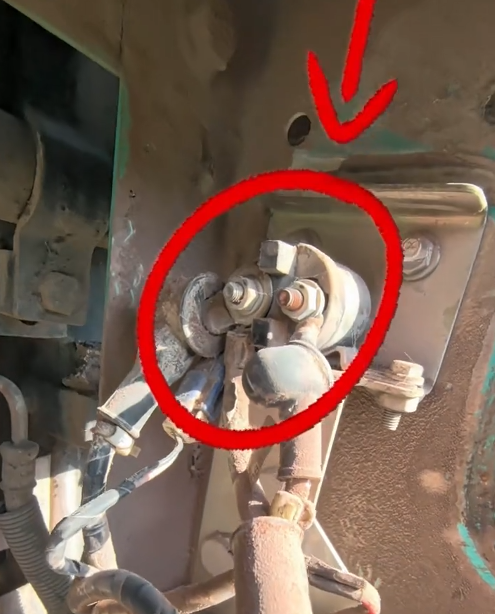

Locate the main battery relay assembly. Directly above the battery relay, you will see the glow plug relay. Check the wiring harness connector connected to this relay for loose or corroded connections, or loose terminal screws. If the glow plug relay is damaged, replace it.Image:Preheating Relay
Lower Relay Plug and Internal Terminal Blade

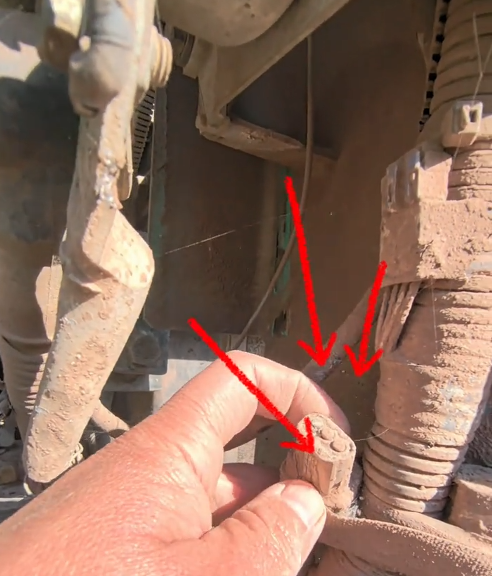

Inspect the wiring connection plug located right below the battery relay. Disconnect the plug and verify if the wiring circuits are broken or if the internal metal terminal blade is bent, corroded, or experiencing poor contact. This localized wiring issue is a very common hidden culprit behind intermittent P0540 codes.
Image : The connector below the battery relay
If any looseness or damage is identified during these steps, tighten the terminals or repair the connector harness promptly to keep your preheating system functioning perfectly.
