Hino J05E & J08E Engine Diesel Supply Pump Failure Analysis & Maintenance Guide
The diesel fuel pump is the core fuel delivery component of Hino’s J05E and J08E common-rail diesel engines. This blog provides a detailed analysis of the diesel fuel pump’s core functions, common failure symptoms (such as difficulty starting when the engine is warm and a diesel odor in the engine oil), precise electrical test parameters (standard resistance values for the SCV valve and temperature sensor), and key preventive maintenance methods.

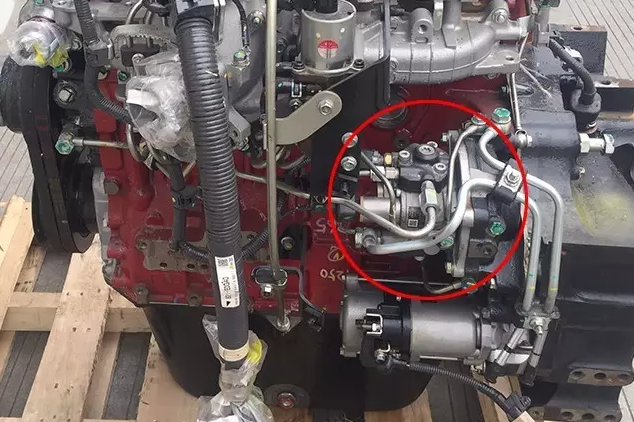

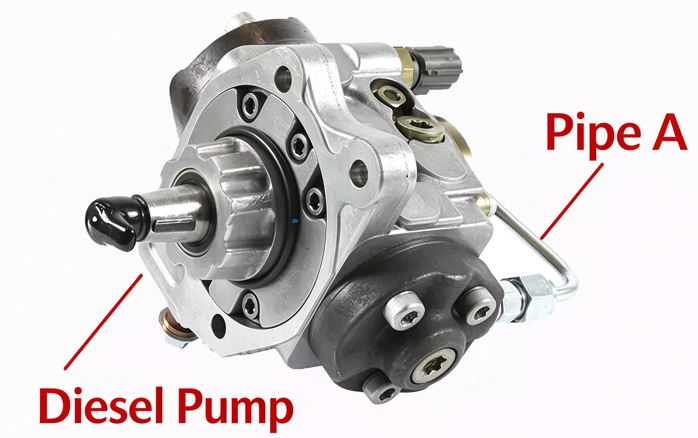

1. Core Functions of the Diesel Supply Pump
1. Under the electronic control of the Engine Control Unit (ECU), it generates high-pressure fuel and delivers it to the common rail.
2. The output fuel volume is regulated by the Suction Control Valve (SCV valve) mounted directly on the diesel pump.
3. The SCV valve is electronically managed by the ECU to ensure precise fuel metering.
2. The output fuel volume is regulated by the Suction Control Valve (SCV valve) mounted directly on the diesel pump.
3. The SCV valve is electronically managed by the ECU to ensure precise fuel metering.
2. Common Failure Symptoms & Troubleshooting
Symptom A: Excavator Fails to Start or Stalls Suddenly
Hot Start vs. Cold Start Issue: If the engine is hard to start when hot but starts easily when cold, pour cold water over the diesel pump. If it starts immediately after cooling, the diesel pump plunger is severely worn.
Frequent Manual Priming & Starting Delays: If you constantly need to use the hand priming pump and experience delayed starting, it indicates internal pump wear requiring inspection.
Frequent Manual Priming & Starting Delays: If you constantly need to use the hand priming pump and experience delayed starting, it indicates internal pump wear requiring inspection.
Symptom B: Diesel Smell in Engine Oil (Oil Dilution)
If the oil dipstick tube spits out oil and the engine oil smells like diesel, it indicates fuel leakage from the diesel pump.
Troubleshooting Steps:
1. Remove the valve cover first to inspect whether the fuel injectors are leaking.
2. Inspect the diesel pump skeleton oil seal for damage, which allows diesel to seep into the engine crankcase.
3. Verify that the fuel return line is unblocked and free of restrictions or leaks.
Troubleshooting Steps:
1. Remove the valve cover first to inspect whether the fuel injectors are leaking.
2. Inspect the diesel pump skeleton oil seal for damage, which allows diesel to seep into the engine crankcase.
3. Verify that the fuel return line is unblocked and free of restrictions or leaks.
3. Diagnostic Testing Specifications: Is the Pump Damaged?
1. SCV Valve (Fuel Metering Valve) Terminal Resistance:
Standard range: 7.65 ~ 8.15 Ω at 20°C.
Standard range: 7.65 ~ 8.15 Ω at 20°C.
2. Fuel Temperature Sensor (NTC Thermistor - Negative Temperature Coefficient):
Resistance decreases as temperature increases. Refer to the standard values below:
Resistance decreases as temperature increases. Refer to the standard values below:
| Temperature | Standard Resistance Range |
|---|---|
| -20°C | 13.5 ~ 16.5 kΩ |
| 20°C | 2.2 ~ 2.7 kΩ |
| 80°C | 0.29 ~ 0.35 kΩ |
4. Diesel Supply Pump Maintenance Best Practices
1. Use High-Quality Diesel Fuel: Always use clean, premium diesel. Inferior fuel will accelerate wear on the diesel supply pump and fuel injectors.
2. Install Genuine Filter Elements: Use original, high-grade fuel filters to effectively trap impurities in the diesel and guarantee fuel cleanliness.
3. Maintain Adequate Engine Oil Level: Regularly check and maintain proper engine oil levels. Insufficient oil causes poor lubrication and rapid component wear.
4. Regularly Check Injection Volume: Periodically inspect injection volumes across pumping units. Insufficient injection volume typically manifests as sluggish machine operation, which points to worn pump plungers.
5. Use Genuine Replacement Parts: Always use authentic, original parts when servicing or repairing the diesel supply pump to ensure reliable performance and longevity.
