How to Fix Kobelco Excavator Fault Codes P0088 & P0192: Intermittent Rail Pressure Failure
When operating a common rail diesel excavator like a Kobelco, encountering electronic fault codes can immediately disrupt your workflow. A particularly frustrating issue occurs when the machine works perfectly fine at startup but begins to fail after 30 minutes to an hour of operation.
Key Symptoms :
Error Codes : P0088 (Abnormal common rail pressure, reduced output) & P0192 (Fuel Rail Pressure Sensor Circuit Low Input).
Machine Performance : The excavator suddenly becomes sluggish, weak, and slows down significantly.
Data Diagnostics : When checking data page 28 on the display monitor, the rail pressure values fluctuate violently even when no hydraulic actions are being made.

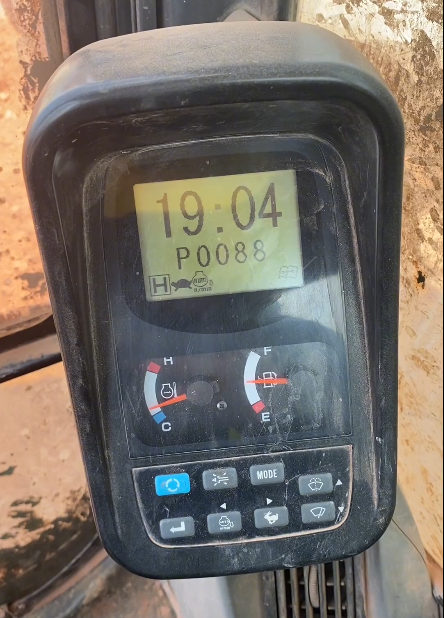

Kobelco excavator monitor displaying common rail fault codes P0088 and P0192 under diagnostics
Step-by-Step Diagnostic Guide: From Easy to Hard
When dealing with intermittent rail pressure codes that trigger under heat, always troubleshoot from the simplest mechanical elements to the complex electrical components.
Step 1: Inspect the Low-Pressure Fuel Supply Circuit
Before blaming expensive sensors or pumps, make sure the engine is actually getting clean fuel without restriction or air bubbles.
Check the Filters ： Inspect if the primary fuel filter or water separator is clogged with debris.
Inspect the Fuel Tank ： Debris or sludge at the bottom of the fuel tank can intermittently block the suction pipe.
Air Leaks & Damaged Lines ： Inspect the fuel lines for any cracks or loose fittings that might allow air to enter the system.
Step 2: Evaluate the SCV Valve (Suction Control Valve)
The SCV (Suction Control Valve) controls the volume of fuel entering the high-pressure pump to regulate rail pressure.

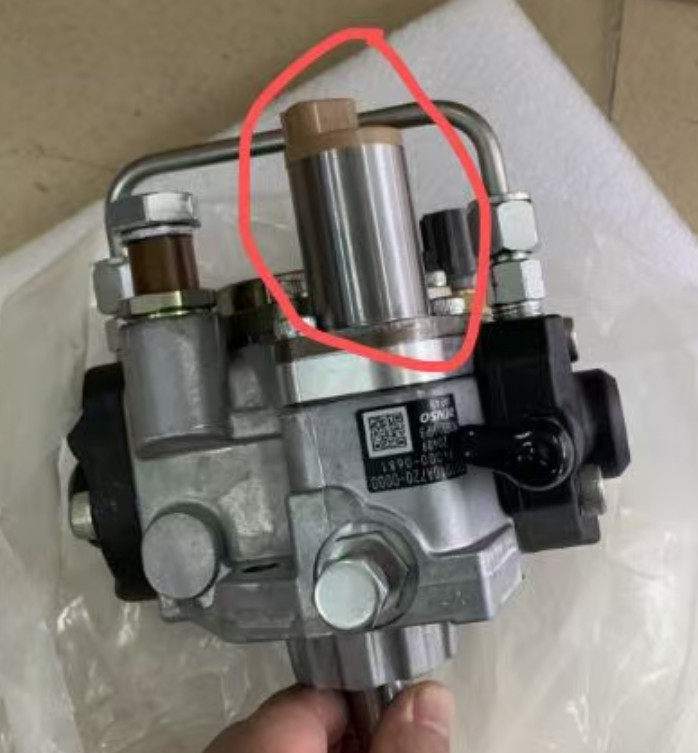

Location of SCV on excavator high pressure fuel injection pump
If your low-pressure fuel circuit is entirely clean and air-free, but page 28 still shows crazy pressure fluctuations, the SCV valve is a high-probability suspect. Internal wear or contamination within the valve can cause it to stick, leading to immediate P0088 or P0192 alerts.
Step 3: Test the Wiring Harness vs. High-Pressure Pump
If swapping or cleaning the SCV valve doesn't resolve the fault, the issue narrows down to either the High-Pressure Fuel Injection Pump or the Electrical Wiring Harness.
| Component | Diagnostic Difficulty | Replacement Strategy |
|---|---|---|
| High-Pressure Fuel Pump | High Requires precision timing, heavy labor, and high part costs. | Save for last. Do not replace prematurely. |
| Wiring Harness | Medium Easier to isolate using temporary test overlays. | Test This First! Intermittent heat failures are highly prone to harness degradation. |
Real-World Case Resolution: The Wire Breakdown
In the practical scenario shown in our technical video, the mechanic strategically chose to test the wiring first by overlaying a known-good test harness (connecting the engine sensor array and leading back to the ECU computer board).
The Result: Once the test wiring harness was installed, the excavator was run until hot. The rail pressure stabilized perfectly, and the machine regained its full operating power. The root cause was an internal degradation in the original engine wiring harness that began breaking continuity/shorting only when expanding under engine heat.
Final Summary & Pro Advice
When tackling complex common rail problems with error combinations like P0088 and P0192, remember:
Check for basic fuel line air leaks or fuel filter restrictions first.
Monitor rail data to rule out the SCV valve.
If the error code only acts up after the engine gets hot, closely suspect the wiring harness shrinking, expanding, or shorting before buying an expensive fuel pump.
